TUPIFOR enclosure
Enclosure made up of high-strength electro-welded mesh with a dense design to prevent it from being climbed, guaranteeing the security of the space. Folding, sliding or self-supporting gates designed with the same mesh to enhance the aesthetics of the enclosure.
Description

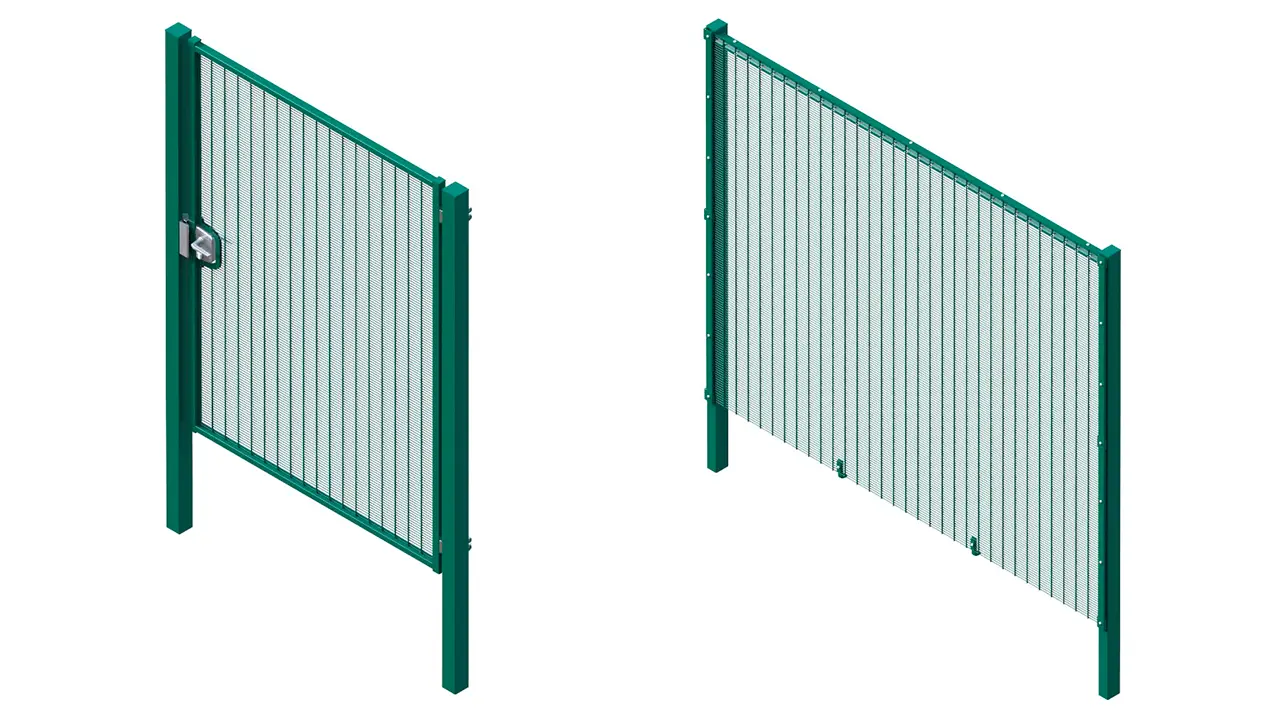

The Tupifor mesh is manufactured with Ø3.8 mm horizontal rods and Ø5.8 mm vertical rods, forming a 12.7 x 76.2 mm horizontal opening. Indusmetal Torres offers a complete range of gates for the TUPIFOR enclosure, from single and double leaf folding gates to sliding and self-supporting gates. Gates manufactured with galvanised steel tubes and LOCINOX accessories.
Vertical dimensions (from the recess line): 1043 mm, 1526 mm, 2038 mm, 2520 mm and 3020 mm. Pavement anchoring: d-plate with 12.7 x 76.2 mm opening and anchoring or recessing.
The Tupifor mesh is characterised by being a highly rigid mesh manufactured with wires of different thicknesses in horizontal and vertical rods. Its 12.7 x 76.2 mm horizontal opening reduces the possibility of climbing without sacrificing the visibility that characterises this model of enclosure. The length of the standard panels is 2440 mm and vertically they are manufactured from 1043 mm to 2984 mm.
Indusmetal Torres offers a complete range of gates for the TUPIFOR enclosure, from single and double leaf folding gates to sliding and self-supporting gates. Gates manufactured with galvanised steel tubes and LOCINOX accessories.
| Reference | Dimensions | Color |
|---|---|---|
| 1005346 | Dimensions 2440 x 1003 mm |
GALV
|
| 1005347 | Dimensions 2440 x 1485 mm |
GALV
|
| 1005348 | Dimensions 2440 x 1993 mm |
GALV
|
| 1005350 | Dimensions 2440 x 2476 mm |
GALV
|
| 1005351 | Dimensions 2440 x 2984 mm |
GALV
|
Posts for TUPIFOR enclosure
Posts for the installation of the TUPIFOR enclosure, fitting for the necessary mounting accessories.
Description

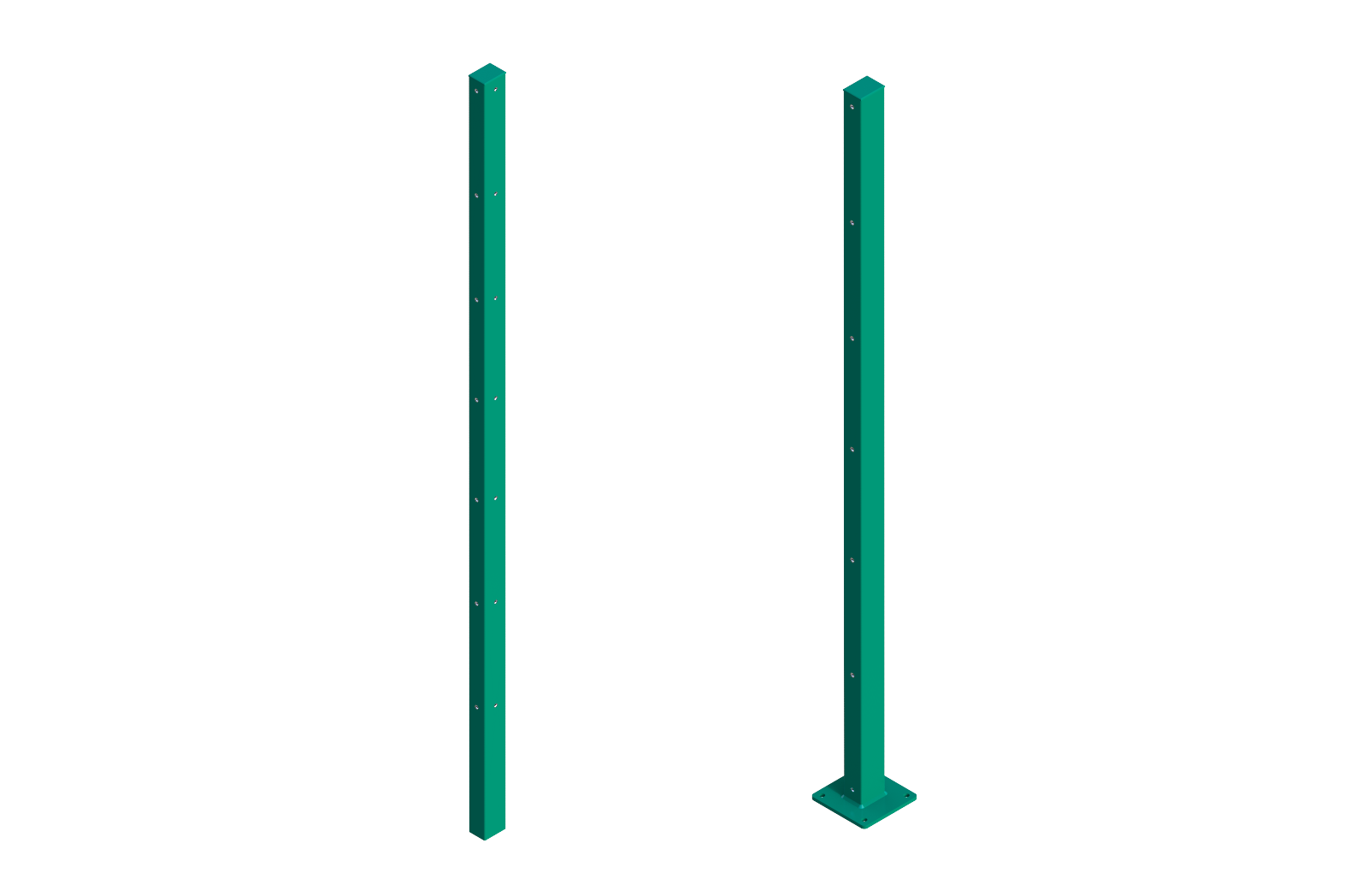

The TUPIFOR enclosure posts are manufactured from galvanised tube with variable sections from 60x60 mm to 100x60 mm depending on the height of the enclosure. They can be supplied to be recessed or with a plate to be screwed to the ground according to the customer's needs. All posts are supplied with a PVC cap.
| Reference | Dimensions | Height | Color |
|---|---|---|---|
| 1002876 | Dimensions 60 x 60 x 1300 mm | Height 1,00 m |
GALV
|
| 1002877 | Dimensions 60 x 60 x 1850 mm | Height 1,50 m |
GALV
|
| 1002878 | Dimensions 80 x 60 x 2400 mm | Height 2,00 m |
GALV
|
| 1002879 | Dimensions 100 x 60 x 3000 mm | Height 2,50 m |
GALV
|
| 1002880 | Dimensions 100 x 60 x 3500 mm | Height 3,00 m |
GALV
|
| 1002887 | Dimensions 60 x 60 x 1043 mm with plate | Height 1,00 m |
GALV
|
| 1002888 | Dimensions 60 x 60 x 1525 mm with plate | Height 1,50 m |
GALV
|
| 1002889 | Dimensions 80 x 60 x 2036 mm with plate | Height 2,00 m |
GALV
|
| 1002890 | Dimensions 100 x 60 x 2520 mm with plate | Height 2,50 m |
GALV
|
| 1002891 | Dimensions 100 x 60 x 3028 mm with plate | Height 3,00 m |
GALV
|
| Reference | Dimensions | Height | Color |
|---|---|---|---|
| FC.TF.10.2010.6610 | Dimensions 60 x 60 x 1300 mm | Height 1,00 m |
GALV
|
| FC.TF.10.2010.6615 | Dimensions 60 x 60 x 1850 mm | Height 1,50 m |
GALV
|
| FC.TF.10.2110.6610 | Dimensions 60 x 60 x 1043 mm with plate | Height 1,00 m |
GALV
|
| FC.TF.10.2110.6615 | Dimensions 60 x 60 x 1525 mm with plate | Height 1,50 m |
GALV
|
| Reference | Dimensions | Height | Color |
|---|---|---|---|
| 1002881 | Dimensions 80 x 60 x 2400 mm | Height 2,00 m |
GALV
|
| 1002882 | Dimensions 100 x 60 x 3000 mm | Height 2,50 m |
GALV
|
| 1002883 | Dimensions 100 x 60 x 3500 mm | Height 3,00 m |
GALV
|
| 1002892 | Dimensions 80 x 60 x 2036 mm with plate | Height 2,00 m |
GALV
|
| 1002893 | Dimensions 100 x 60 x 2520 mm with plate | Height 2,50 m |
GALV
|
| 1002894 | Dimensions 100 x 60 x 3028 mm with plate | Height 3,00 m |
GALV
|
| Reference | Dimensions | Height | Color |
|---|---|---|---|
| 1002884 | Dimensions 80 x 60 x 2400 mm | Height 2,00 m |
GALV
|
| 1002885 | Dimensions 100 x 60 x 3000 mm | Height 2,50 m |
GALV
|
| 1002886 | Dimensions 100 x 60 x 3500 mm | Height 3,00 m |
GALV
|
| 1002895 | Dimensions 80 x 60 x 2036 mm with plate | Height 2,00 m |
GALV
|
| FC.TF.10.2121.0625 | Dimensions 100 x 60 x 2520 mm with plate | Height 2,50 m |
GALV
|
| 1002896 | Dimensions 100 x 60 x 3028 mm with plate | Height 3,00 m |
GALV
|
TUPIFOR fixing systems and accessories
The mesh is fixed to the post using fixing clamps and end post struts.
Description

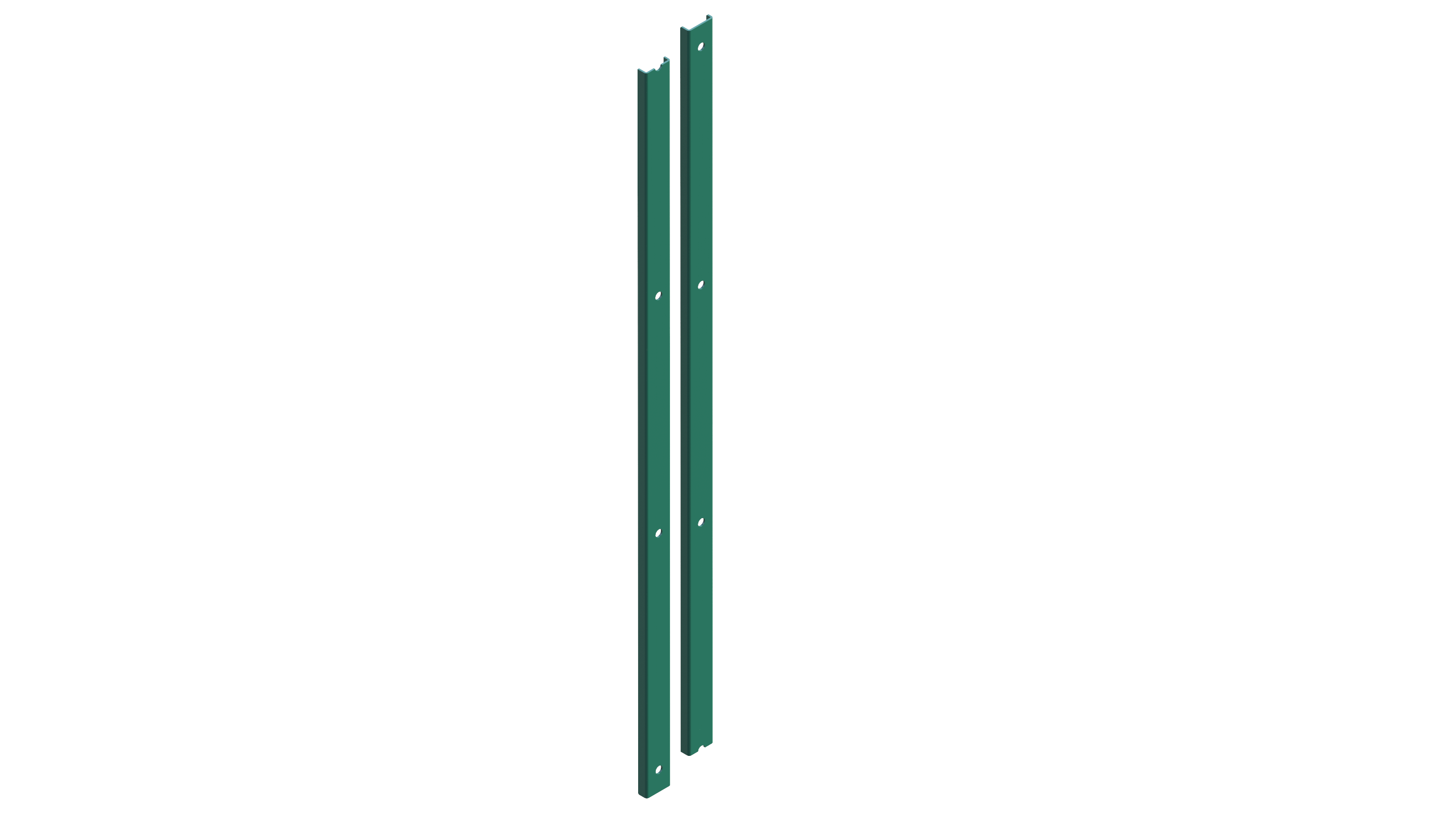

- Post struts and fixing clamps: These are used to cover the ends and fix the mesh to the post. For mesh measuring 1003 and 1485 mm high, it consists of a single piece, while for higher heights it consists of a set of two pieces. There are three types, depending on how they are mounted: starting, centre or corner. They are placed vertically on the ends of the mesh, covering the ends of the horizontal rods.
- TUPIFOR stiffener: System composed of two sheet metal profiles that are joined together using stainless steel screws. These profiles allow to align and stiffen the enclosure. It can be placed on the upper or lower part of the panel at the customer's choice.
- Ground clamp: Made up of two pieces, it is used to fasten the mesh to the ground. It allows the mesh to be completely aligned with the enclosure. This piece can replace the stiffener at the bottom, placing two units per panel.
| Reference | Dimensions | Color |
|---|---|---|
| 1002897 | Dimensions Start End Cap - 40 x 1000 mm |
GALV
|
| 1002898 | Dimensions Start End Cap - 40 x 1500 mm |
GALV
|
| 1002899 | Dimensions Set of 2 Start End Caps 40 x 1000 mm |
GALV
|
| 1002900 | Dimensions Set of 2 Start End Caps 40 x 1250 mm |
GALV
|
| 1002901 | Dimensions Set of 2 Start End Caps 40 x 1500 mm |
GALV
|
| 1002902 | Dimensions Center End Cap - 40 x 1000 mm |
GALV
|
| 1002903 | Dimensions Center End Cap - 40 x 1500 mm |
GALV
|
| 1002904 | Dimensions Set of 2 Center End Caps 40 x 1000 mm |
GALV
|
| 1002905 | Dimensions Set of 2 Center End Caps 40 x 1250 mm |
GALV
|
| 1002906 | Dimensions Set of 2 Center End Caps 40 x 1500 mm |
GALV
|
| FC.TF.10.3200.4010 | Dimensions Corner End Cap - 40 x 1000 mm |
GALV
|
| FC.TF.10.3200.4015 | Dimensions Corner End Cap - 40 x 1500 mm |
GALV
|
| 1002909 | Dimensions Set of 2 Corner End Caps 40 x 1000 mm |
GALV
|
| FC.TF.10.3200.4025 | Dimensions Set of 2 Corner End Caps 40 x 1250 mm |
GALV
|
| FC.TF.10.3200.4030 | Dimensions Set of 2 Corner End Caps 40 x 1500 mm |
GALV
|
| Reference | Dimensions | Color |
|---|---|---|
| 1002911 | Dimensions Soil Reinforcing Clamp |
GALV
|
| Reference | Dimensions | Color |
|---|---|---|
| 1002912 | Dimensions Reinforcing Beam 2 pcs. |
GALV
|
