TENNIS COURTS
SPORTS ENCLOSURES
Green
Sports enclosures

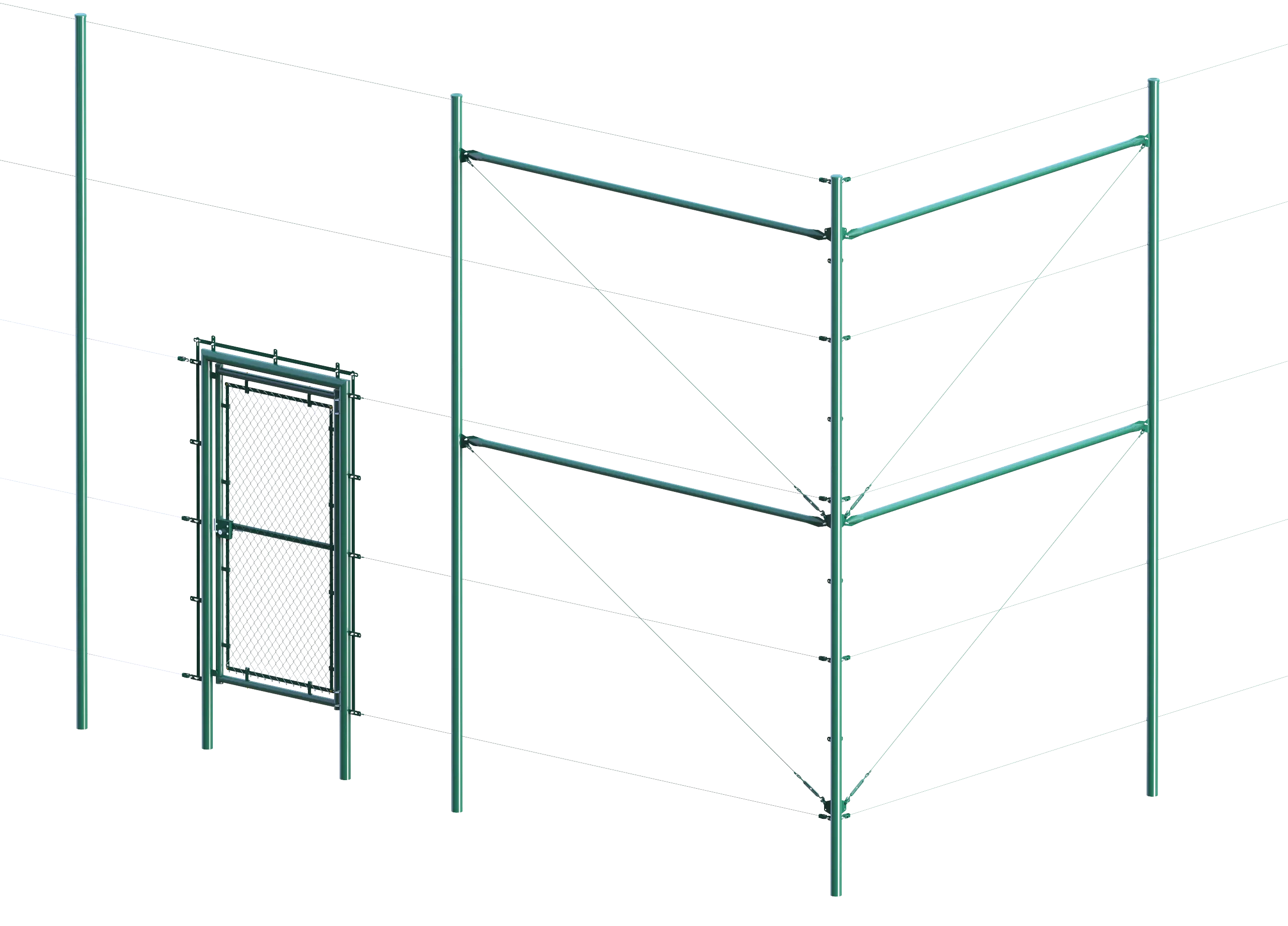

Standard tennis courts are built to the standards of the International Tennis Federation (ITF). They include all the necessary components to set up a standard-sized court, measuring 23.77 meters long by 8.23 meters wide for singles, and 23.77 meters long by 10.97 meters wide for doubles.
| Reference | Description | Color |
|---|---|---|
| FC.PT.10.1122.0005 | Tennis court Ø 48 mm 4 corner posts MT Ø 48 x 4.450 mm 8 corner connectors Ø 48 x 4.500 mm 8 corner connectors 2.400 mm 16 starting plates of 2.000 x 22 x 4 mm 32 intermediate posts PASP Ø 48 x 4.450 mm 6 rolls of mesh S/T 40 x 4 m (72 m2) 75 screws M-7 x 25 mm 20 wire tensioners 25 kg of tension wire 1 single tennis door 1.000 x 2.000 mm |
GALV
|
| FC.PT.10.1123.0005 | Tennis court Ø 60 mm 4 corner posts MT Ø 60 x 4.450 mm 8 corner connectors Ø 48 x 4.500 mm 8 corner connectors 2.400 mm 16 starting plates of 2.000 x 22 x 4 mm 32 intermediate posts PASP Ø 60 x 4.450 mm 6 rolls of mesh S/T 40 x 4 m (72 m2) 75 screws M-7 x 25 mm 20 wire tensioners 25 kg of tension wire 1 single tennis door 1.000 x 2.000 mm |
GALV
|
| FC.PT.10.1124.0005 | Tennis court Ø 70 mm 4 Kit posts Ø 70 x 4.450 mm reinforced corners 24 intermediate posts PASP Ø 70 x 4.450 mm 6 rolls of mesh S/T 40 x 4 m (72 m2) 75 screws M-7 x 25 mm 20 wire tensioners 25 kg of tension wire 1 single tennis door 1.000 x 2.000 mm |
GALV
|
Essential accessory for tennis courts

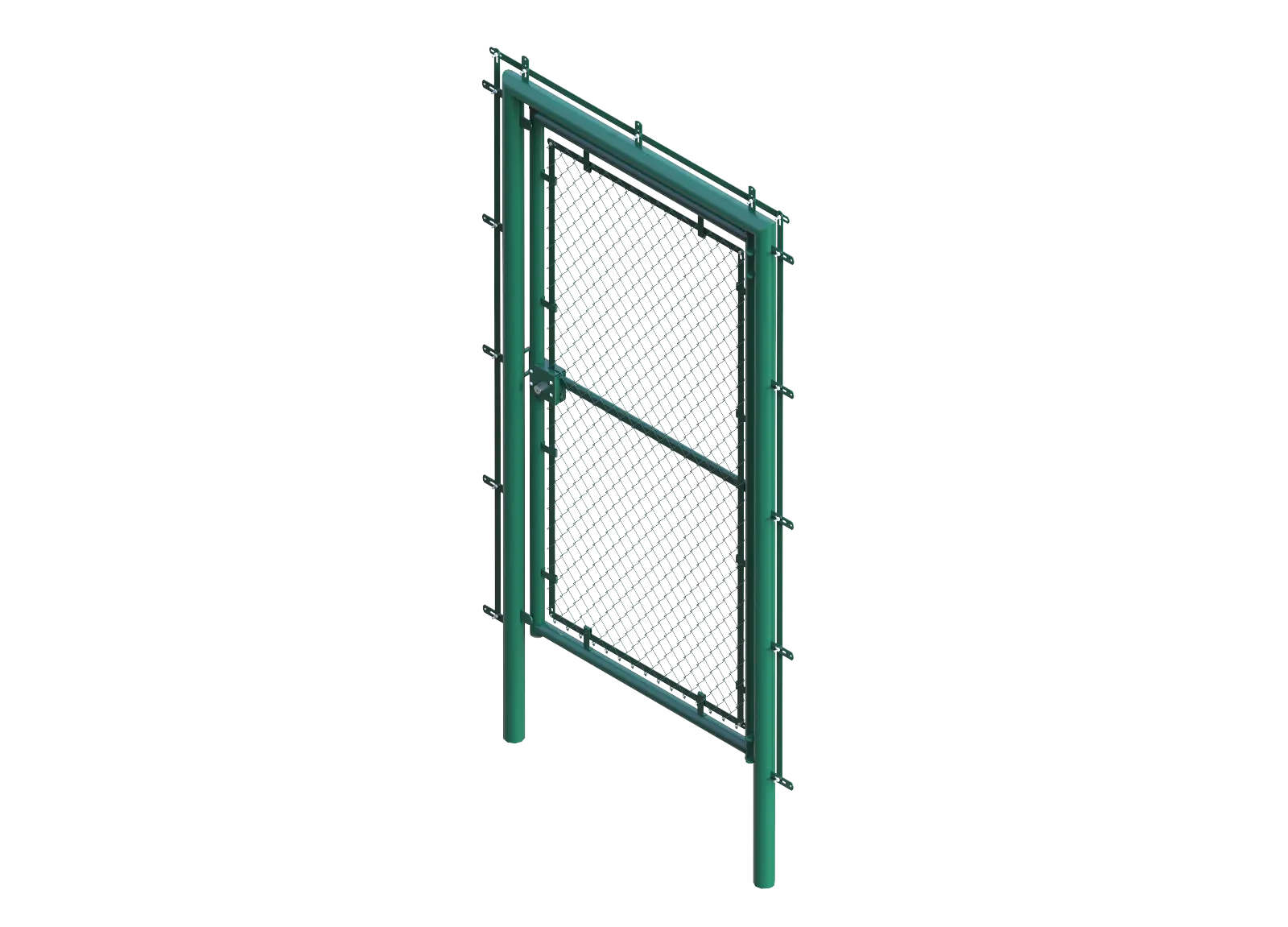

The tennis gate with frame and lock is an essential accessory for any tennis court. This gate allows safe and convenient access to the court.
| Reference | Nº Leaves | Dimensions | Color |
|---|---|---|---|
| FP.PM.10.1310.1020 | 1-L | 1.0 x 2.0 m |
GALV
|
| FP.PM.10.2310.2020 | 2-L | 2.0 x 2.0 m |
GALV
|

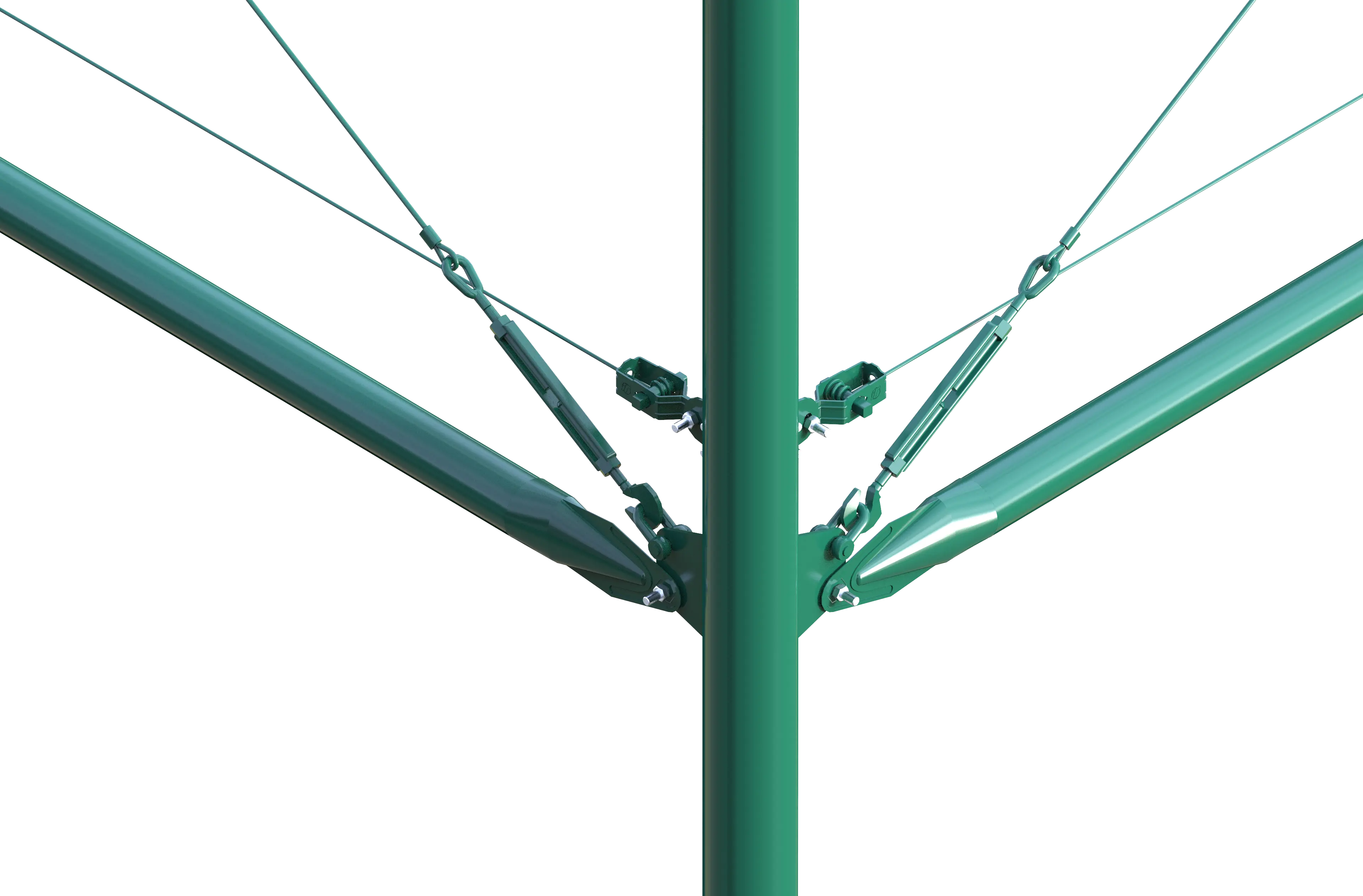

The Ø 70 mm reinforced straight tennis court posts are an ideal solution for the installation of high-strength tennis courts. These posts are made of high quality galvanised steel and have an internal steel reinforcement for extra strength and durability.
| Reference | Description | Color |
|---|---|---|
| FC.PT.10.0500.5400 | Post kit Ø 70 x 4.450 mm right start |
GALV
|
| FC.PT.10.0501.0400 | Post kit Ø 70 x 4.450 mm left start 2 straight posts Ø 70 x 4.450 mm with welded accessories 2 start plates of 2.000 x 22 x 4 mm 2 double tensioners Ø 48 x 2.835 mm 2 steel wire tensioners 4 mm 14 galvanized screws M-7 x 25 mm |
GALV
|
| FC.PT.10.0502.0400 | Post kit Ø 70 x 4.450 mm. corner 3 straight posts Ø 70 x 4.450 mm with welded accessories. 4 start plates of 2.000 x 22 x 4 mm 4 double tensioners Ø 48 x 2.835 mm 4 steel wire tensioners 4 mm 28 galvanized screws M-7 x 25 mm |
GALV
|
| FC.PT.10.0502.5400 | Post kit Ø 70 x 4.450 mm. T-divider right |
GALV
|
| FC.PT.10.0503.0400 | Post kit Ø 70 x 4.450 mm. T-divider left 4 straight posts Ø 70 x 4.450 mm with welded accessories 6 start plates of 2.000 x 22 x 4 mm 6 double tensioners Ø 48 x 2.835 mm 6 steel wire tensioners 4 mm 42 galvanized screws M-7 x 25 mm |
GALV
|
| FC.PT.10.0506.4500 | Straight post PASP Ø 70 x 4.500 mm with welded clamps |
GALV
|
| FC.PT.10.7016.0450 | Start clamp for Ø 70 mm post |
GALV
|
