GATES — Galvanised
SINGLE TWIST ENCLOSURES

GATES

Galvanised

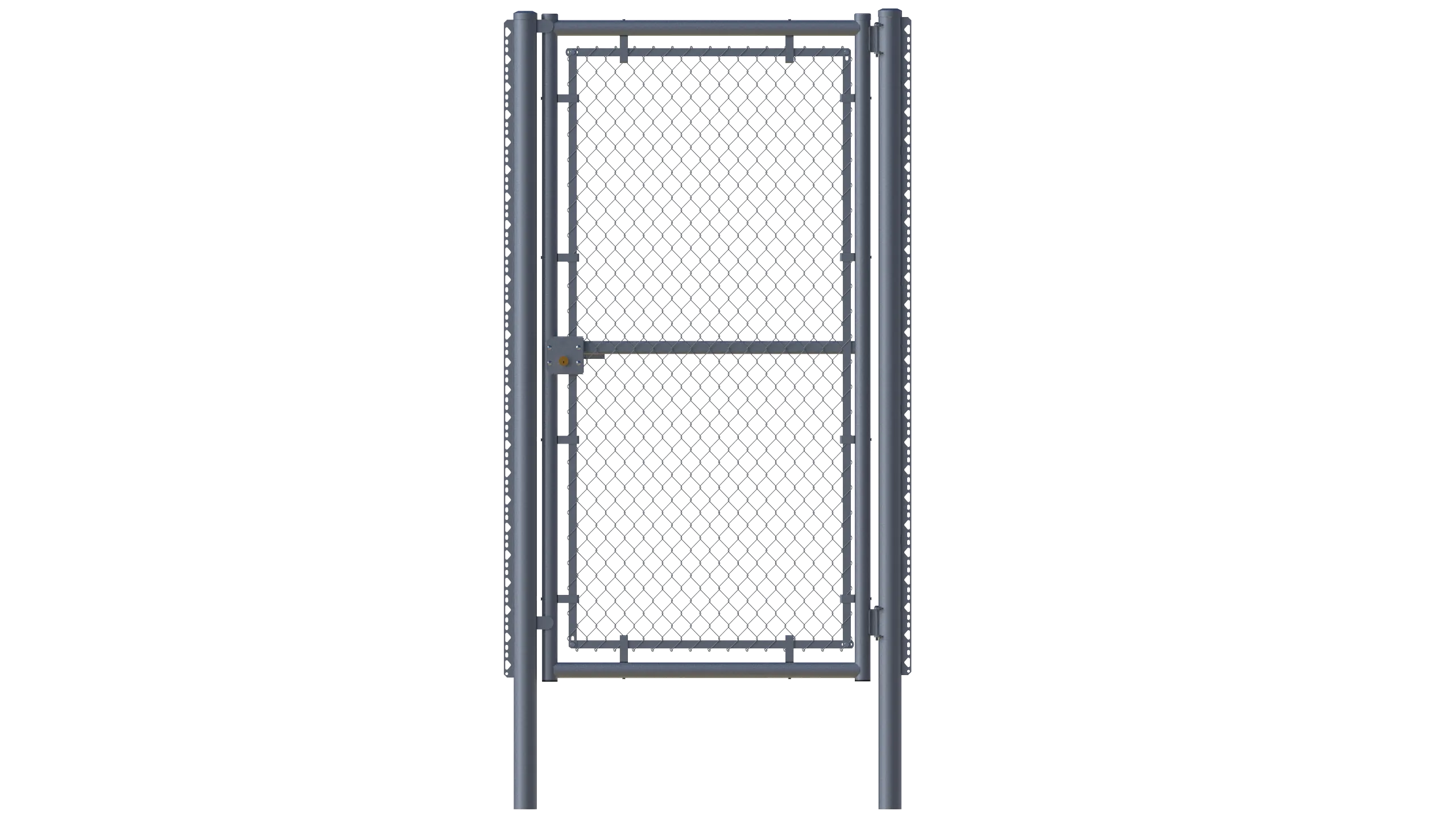

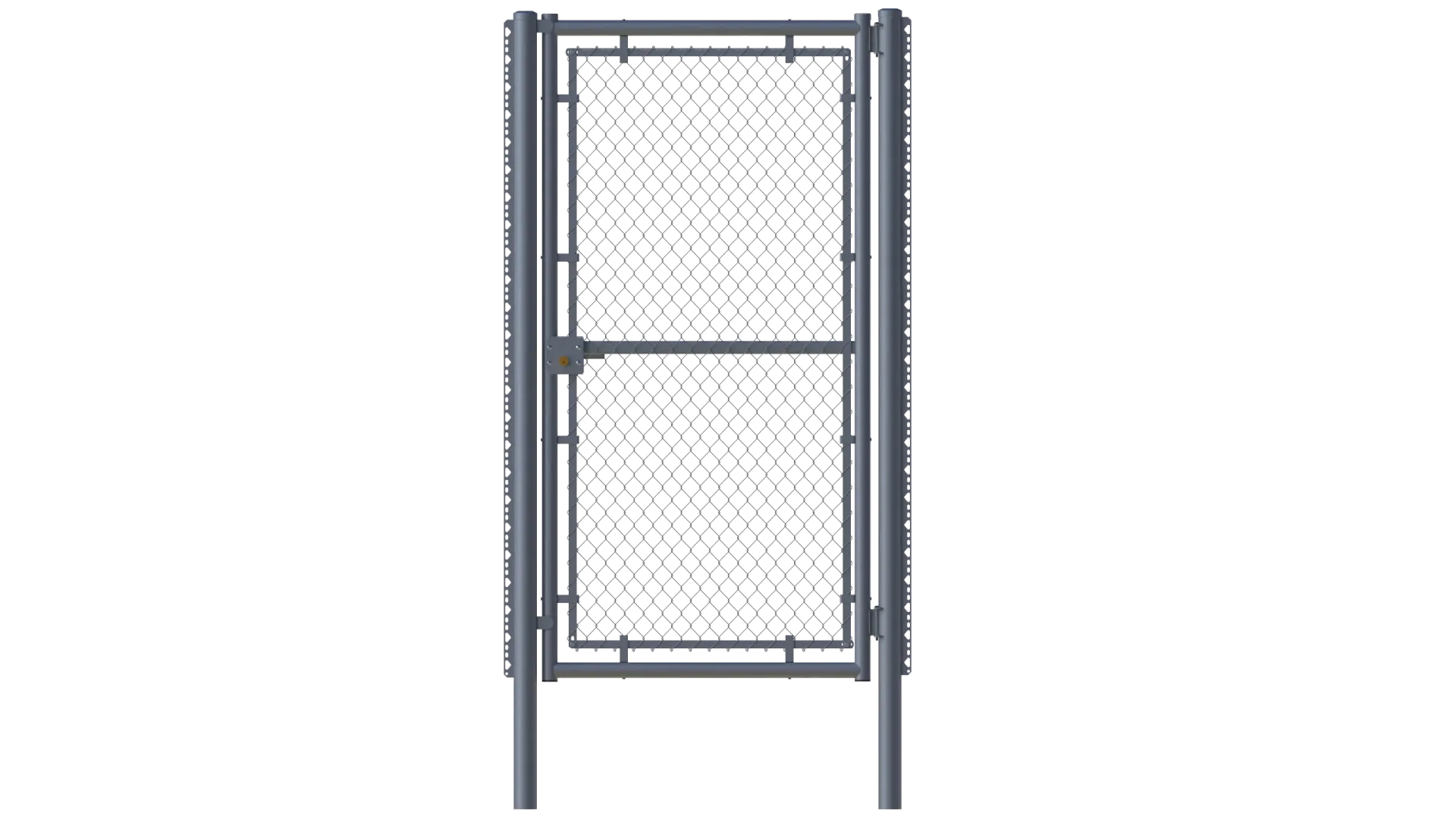

Single twist mesh gates

Single and double leaf gates with single twist mesh, ideal for private lands or plots. A highly functional and easy-to-install gate.

  • Collective residences, Individual residences
  • Agricultural areas

Description

Gates made with a Ø 48 x 1.5 mm tube frame and Ø 70 posts for gates up to 4 metres wide and Ø 100 mm for gates from 5 metres wide. The central horizontal crossbeam is made of a 40 x 20 mm oval tube. Single twist mesh gates are made of 50 x 15 mesh. Barbed wire gates are also an option. Standard gates are supplied with right-opening when viewed from the outside of the enclosure. They can be made with left-opening upon request.

DOWNLOAD TECHNICAL DATA SHEET
Single twist mesh gates

Reference Width Height
FP.PM.10.2110.2015 Width 2.0m Height 1.5m
FP.PM.10.2110.2020 Width 2.0m Height 2.0m
FP.PM.10.2110.3015 Width 3.0m Height 1.5m
FP.PM.10.2110.3020 Width 3.0m Height 1.5m
FP.PM.10.2110.4015 Width 4.0m Height 1.5m
FP.PM.10.2110.4020 Width 4.0m Height 2.0m
FP.PM.10.2110.5015 Width 5.0m Height 1.5m
FP.PM.10.2110.5020 Width 5.0m Height 2.0m
FP.PM.10.2110.6015 Width 6.0m Height 1.5m
FP.PM.10.2110.6020 Width 6.0m Height 2.0m

Reference Width Height
FP.PM.10.2210.3019 Width 3.0m Height 1.88m
FP.PM.10.2210.3024 Width 3.0m Height 2.38m
FP.PM.10.2210.4019 Width 4.0m Height 1.88m
FP.PM.10.2210.4024 Width 4.0m Height 2.38m
FP.PM.10.2210.5019 Width 5.0m Height 1.88m
FP.PM.10.2210.5024 Width 5.0m Height 2.38m
FP.PM.10.2210.6019 Width 6.0m Height 1.88m
FP.PM.10.2210.6024 Width 6.0m Height 2.38m

Reference Width Height
FP.PM.10.1110.1010 Width 1.0m Height 1.0m
FP.PM.10.1110.1015 Width 1.0m Height 1.5m
FP.PM.10.1110.1020 Width 1.0m Height 2.0m
FP.PM.65.1110.1510 Width 1.5m Height 1.0m
FP.PM.65.1110.1510 Width 1.5m Height 1.5m
FP.PM.65.1110.1520 Width 1.5m Height 2.0m
FP.PM.65.1110.2015 Width 2.0m Height 1.5m
FP.PM.65.1110.2020 Width 2.0m Height 2.0m

Reference Width Height
FP.PM.10.1210.1019 Width 1.0m Height 1.88m
FP.PM.10.1210.1024 Width 1.0m Height 2.38m
FP.PM.10.1210.1519 Width 1.5m Height 1.88m
FP.PM.10.1210.1524 Width 1.5m Height 2.38m

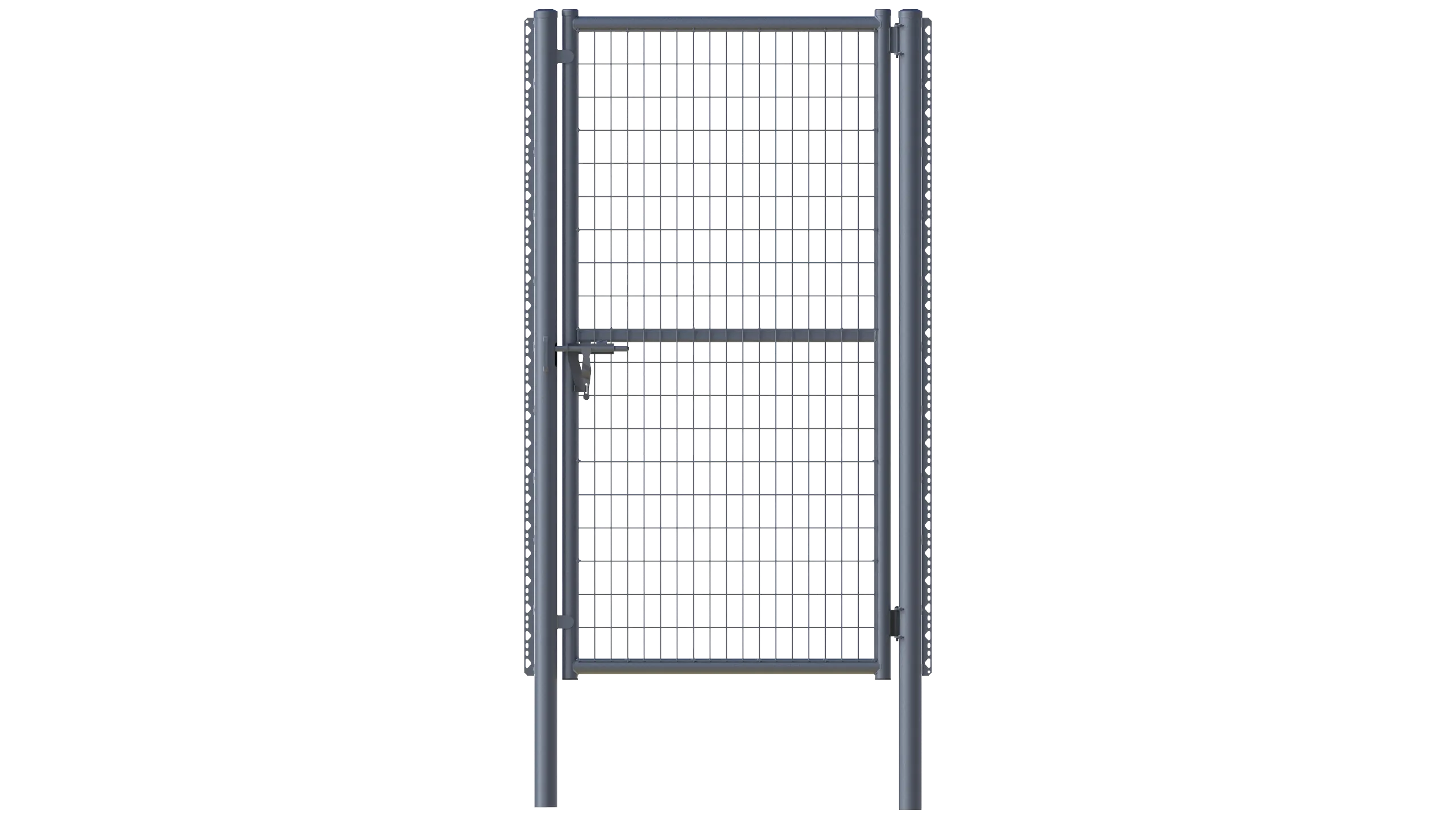

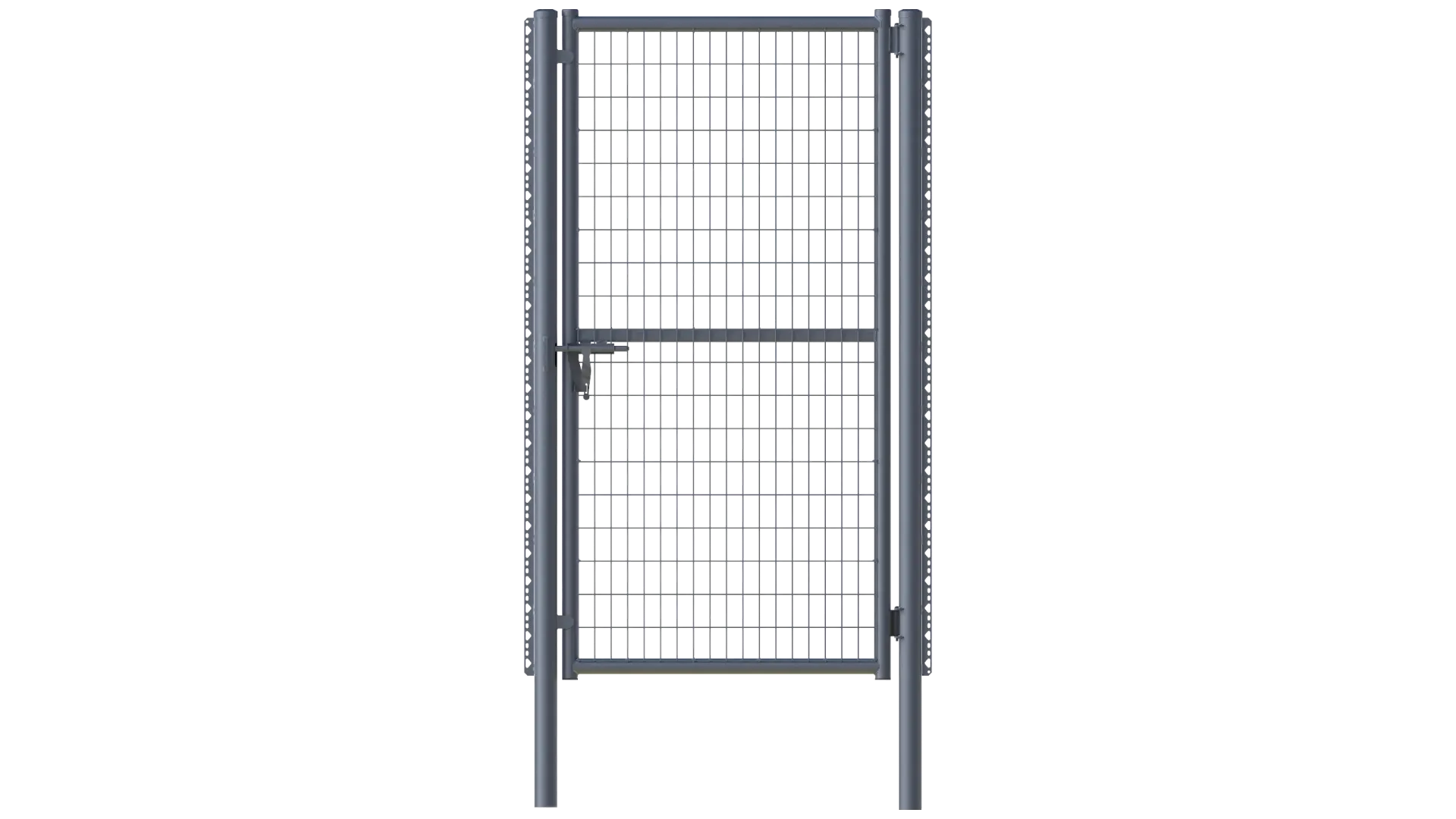

Electro-welded mesh gates

Single and double leaf gates with electro-welded mesh, ideal for private lands or plots. A highly functional and easy-to-install gate.

  • Collective residences, Individual residences
  • Agricultural areas

Description

Gates made with a Ø 48 x 1.5 mm tube frame and Ø 70 posts for gates up to 4 metres wide and Ø 100 mm for gates from 5 metres wide. The central horizontal crossbeam is made of a 40 x 20 mm oval tube. Electro-welded mesh gates are made of 100 x 50 x 4 mm mesh. Barbed wire gates are also an option. Standard doors are supplied with right-opening when viewed from the outside of the enclosure. They can be made with left-opening upon request.

DOWNLOAD TECHNICAL DATA SHEET
Electro-welded mesh gates

Reference Width Height
FP.ME.10.2105.2020 Width 2.0m Height 2.0m
FP.ME.10.2105.3015 Width 3.0m Height 1.5m
FP.ME.10.2105.3020 Width 3.0m Height 2.0m
FP.ME.10.2105.4015 Width 4.0m Height 1.5m
FP.ME.10.2105.4020 Width 4.0m Height 2.0m
FP.ME.10.2105.5015 Width 5.0m Height 1.5m
FP.ME.10.2105.5020 Width 5.0m Height 2.0m
FP.ME.10.2105.6020 Width 6.0m Height 2.0m

Reference Width Height
FP.ME.10.2205.3018 Width 3.0m Height 1.88m
FP.ME.10.2205.3023 Width 3.0m Height 2.38m
FP.ME.10.2205.4018 Width 4.0m Height 1.88m
FP.ME.10.2205.4023 Width 4.0m Height 2.38m

Reference Width Height
FP.ME.10.1105.1010 Width 1.0m Height 1.0m
FP.ME.10.1105.1015 Width 1.0m Height 1.5m
FP.ME.10.1105.1020 Width 1.0m Height 2.0m

Reference Width Height
FP.ME.10.1205.1018 Width 1.0m Height 1.88m
FP.ME.10.1205.1023 Width 1.0m Height 2.38m

Reference Width Height
FP.ME.10.1605.1015 Width 1.0m Height 1.5m
FP.ME.10.1605.1020 Width 1.0m Height 2.0m
