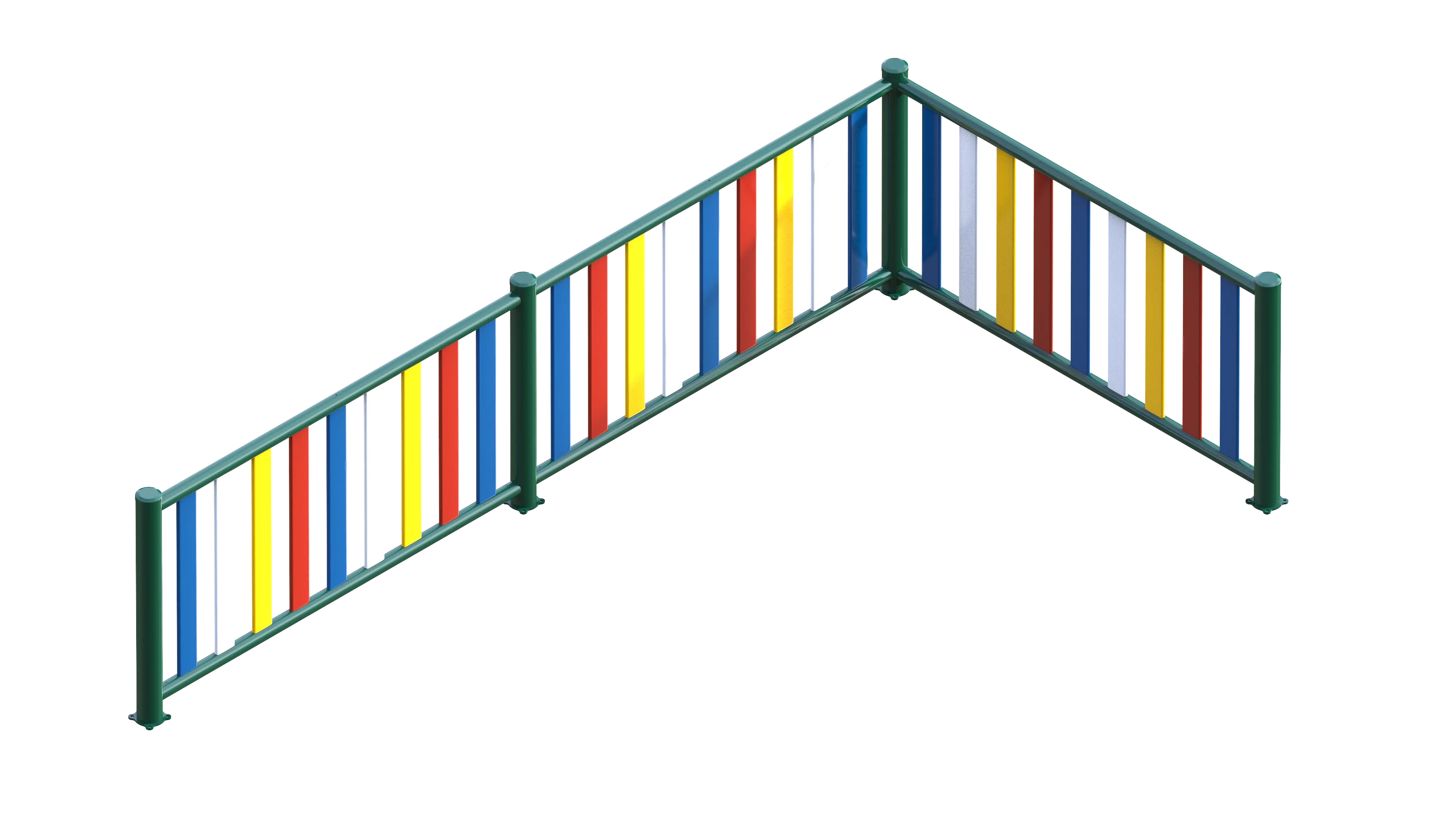

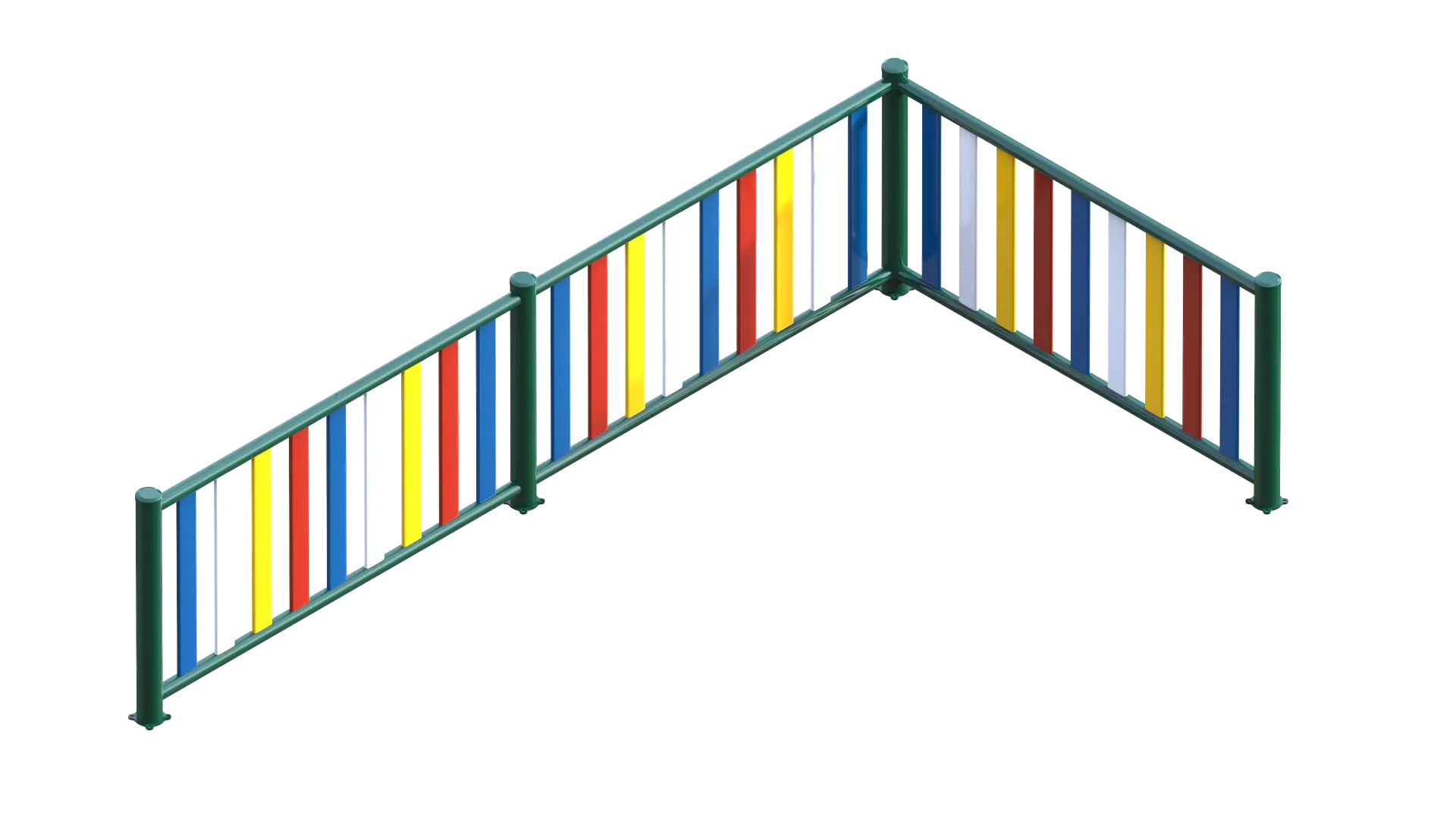

PINF playground enclosure

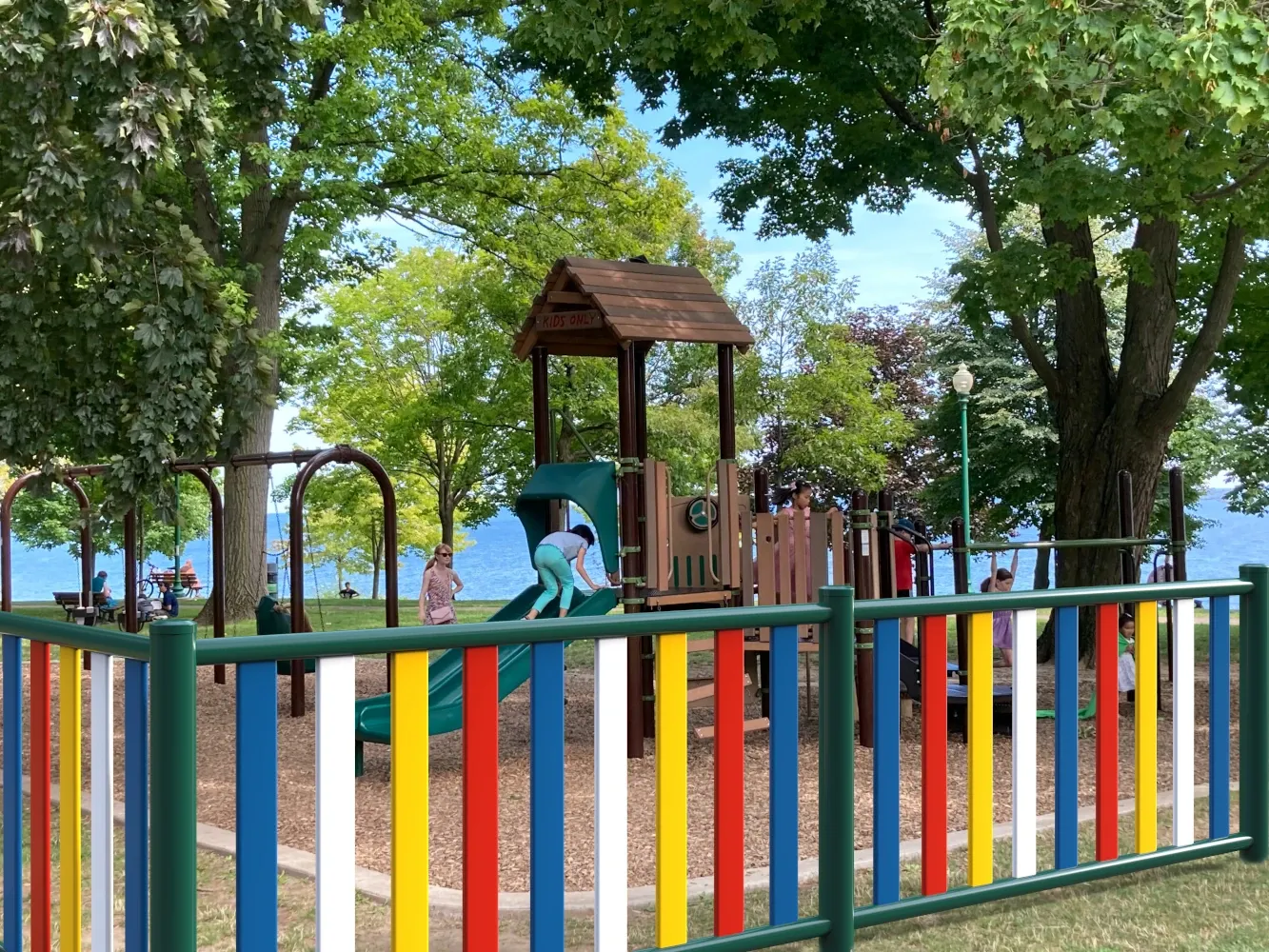

Playground enclosure designed for grounds and special spaces for children, where safety is the main design value. Perimeter system composed of metal panels of coloured slats assembled to pillars. Fixed to the ground with anchor plates.
Description
Our enclosure for playgrounds is designed and oriented for play areas, preventing children from being exposed to external dangers. Perimeter enclosure made of round tubes and vertical slats without sharp edges, easy and quick to install in compliance with the current UNE-EN-1176-1 standard. The enclosure is supplied with the assembly manual, and its recommendations must be respected by staff in charge of installation and maintenance.
| Reference | Description |
|---|---|
| FC.MP.65.5004.1980 | Description Handrail PINF set Ø 60x1980 mm green |
| FC.MP.65.5004.0003 | Description Handrail adjustment sleeve green |
| FC.MP.65.5004.0100 | Description Variable angle handrail connector green |
| FC.MP.50.5002.0400 | Description Oval tube slat 100 x 20 x 925 mm yellow |
| FC.MP.55.5002.0400 | Description Oval tube slat 100 x 20 x 925 mm red |
| FC.MP.60.5002.0400 | Description Oval tube slat 100 x 20 x 925 mm blue |
| FC.MP.70.5002.0400 | Description Oval tube slat 100 x 20 x 925 mm white |
| FC.MP.65.5002.0400 | Description Oval tube slat 100 x 20 x 925 mm green |
| Reference | Description |
|---|---|
| FC.MP.65.5001.1010 | Description Start Ø 100 x 1.027 mm |
| FC.MP.65.5001.1110 | Description Center Ø 100 x 1.027 mm |
| FC.MP.65.5001.1210 | Description Corner Ø 100 x 1.027 mm |

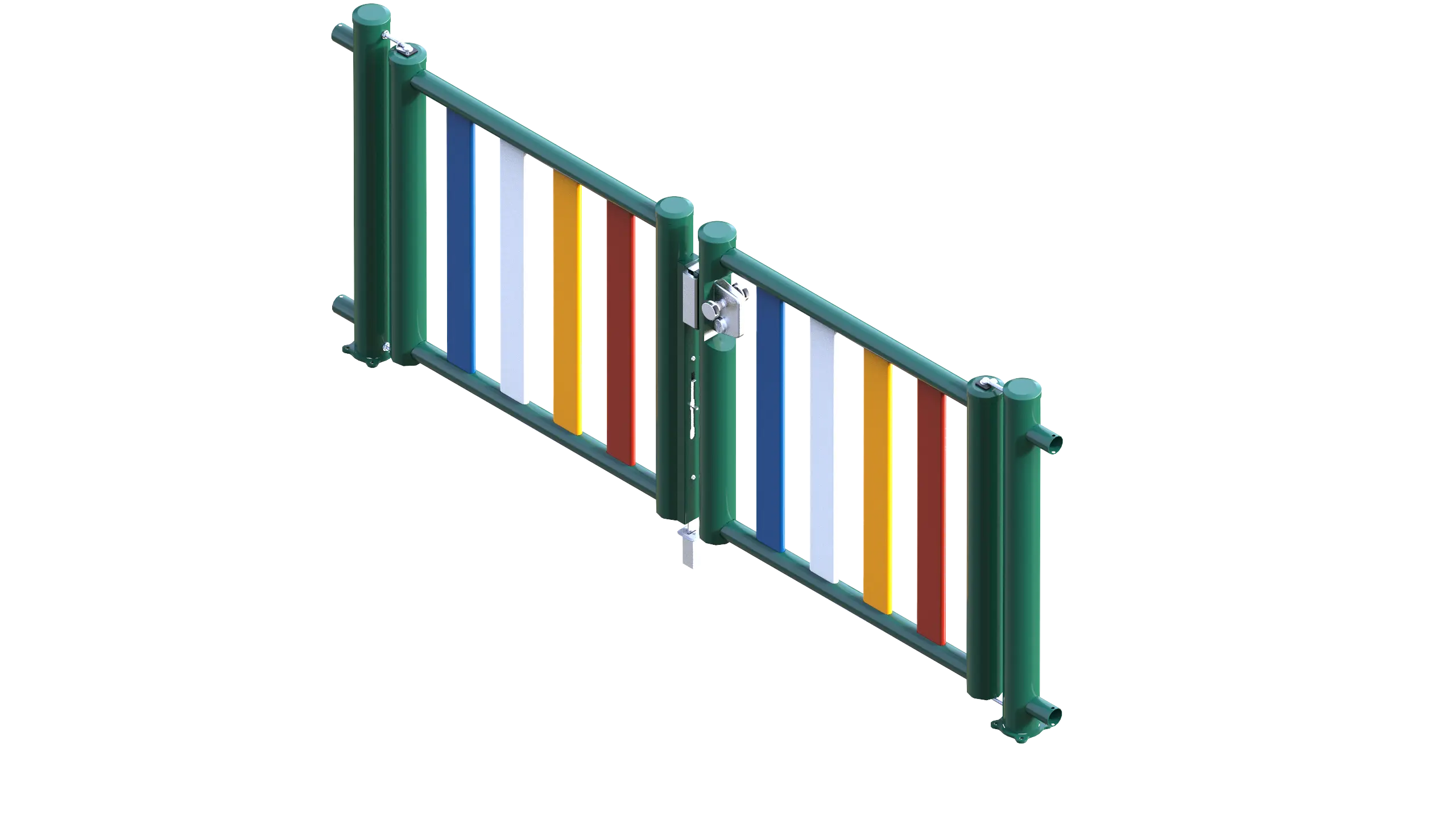

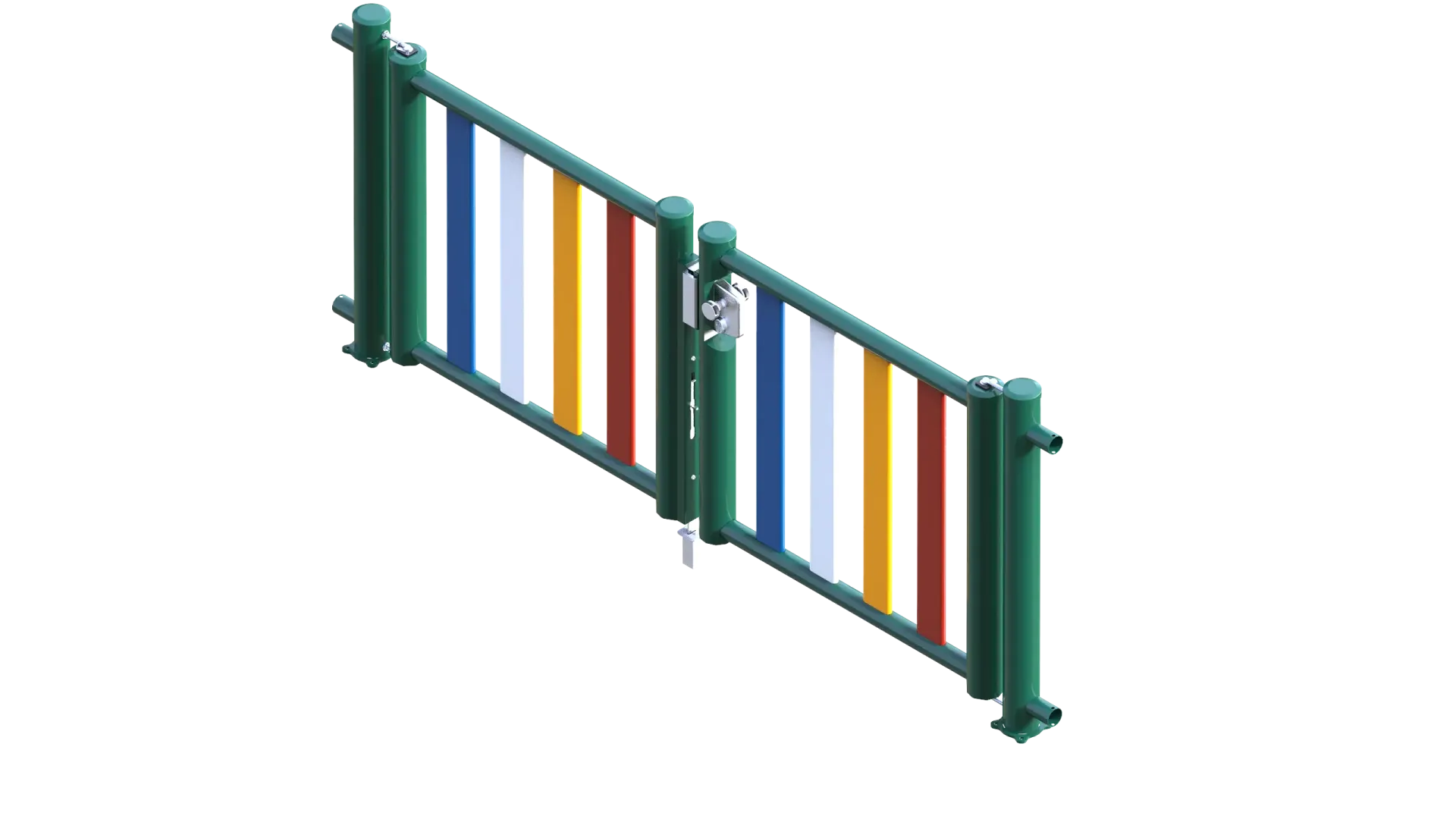

PINF playground gate
The gates for the PINF enclosure are manufactured in the same design as the enclosure.
Description
The PINF gates include Locinox spring hinges that allow the actuating force to be adjusted using an external regulator. Thanks to the opening rotation of the gate leaf, there is no risk of entrapment. Its lock and handle prevent young children from manipulating it due to the two-step operation.
| Reference | Nº Leaves | Dimensions |
|---|---|---|
| FC.MP.65.5040.1010 | Nº Leaves 1-L | Dimensions 1.000 x 1.000 mm |
| FC.MP.65.5041.2010 | Nº Leaves 2-L | Dimensions 2.000 x 1.000 mm |
