Round pillars for modular railing
Modular railing system
Description
The modular railing consists of posts made of Ø 50 or 60 mm galvanised steel tube. Both a recessing post or with a base plate are an option.
| Reference | Dimensions | Color |
|---|---|---|
| FC.MP.10.4001.5110 | Dimensions Ø 50 x 1.400 mm |
GALV
|
| FC.MP.10.4001.6110 | Dimensions Ø 60 x 1.400 mm |
GALV
|
| Reference | Dimensions | Color |
|---|---|---|
| FC.MP.10.4005.5110 | Dimensions Ø 50 x 1.100 mm with plate |
GALV
|
| FC.MP.10.4005.6110 | Dimensions Ø 60 x 1.100 mm with plate |
GALV
|
Handrails and crossbeams for modular railing
Modular railing system
Description

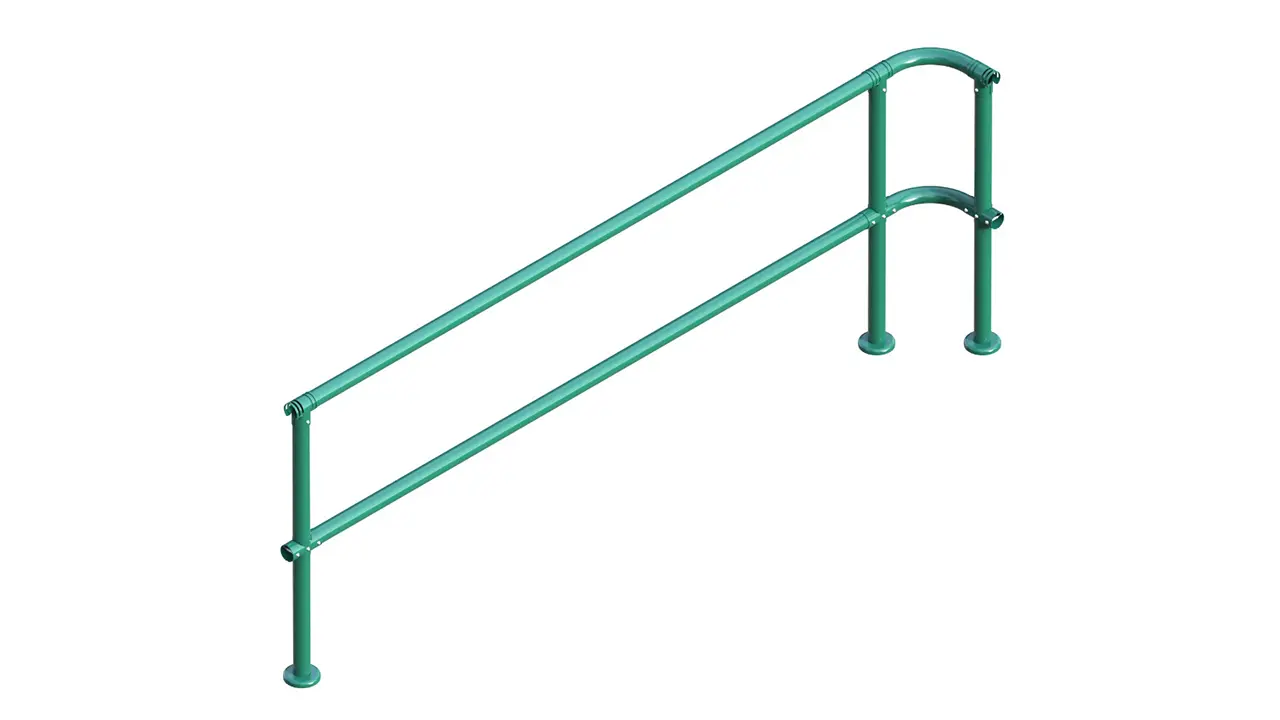

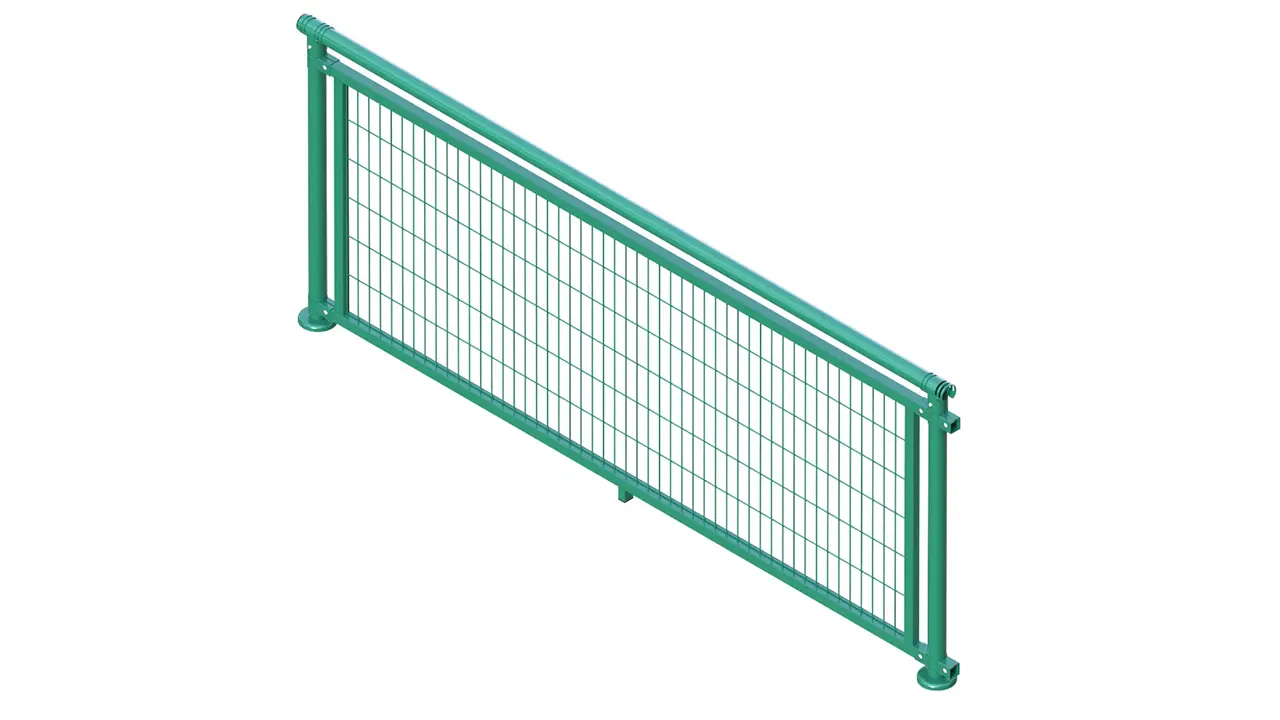

The modular railing consists of a handrail and horizontal crossbeam made of a Ø 50 or 60 mm galvanised steel tube. The Ø 60 mm modular railing can also be installed with the CEEN handrail and barred panel, electro-welded mesh or perforated sheet metal instead of the intermediate crossbeam.
| Reference | Dimensions | Color |
|---|---|---|
| FC.MP.10.4010.5282 | Dimensions Ø 50 x 2.760 mm |
GALV
|
| FC.MP.10.4010.6277 | Dimensions Ø 60 x 2.770 mm |
GALV
|
| Reference | Dimensions | Color |
|---|---|---|
| FC.MP.10.4015.5276 | Dimensions Ø 50 x 2.710 mm |
GALV
|
| FC.MP.10.4015.6271 | Dimensions Ø 60 x 2.710 mm |
GALV
|
| Reference | Dimensions | Color |
|---|---|---|
| FC.MP.10.2005.0100 | Dimensions 500 x 1.030 mm |
GALV
|
Bracket clamps and accessories for modular railing
Handrail bend, curved crossbeam, pillar shield and bracket clamps
Description

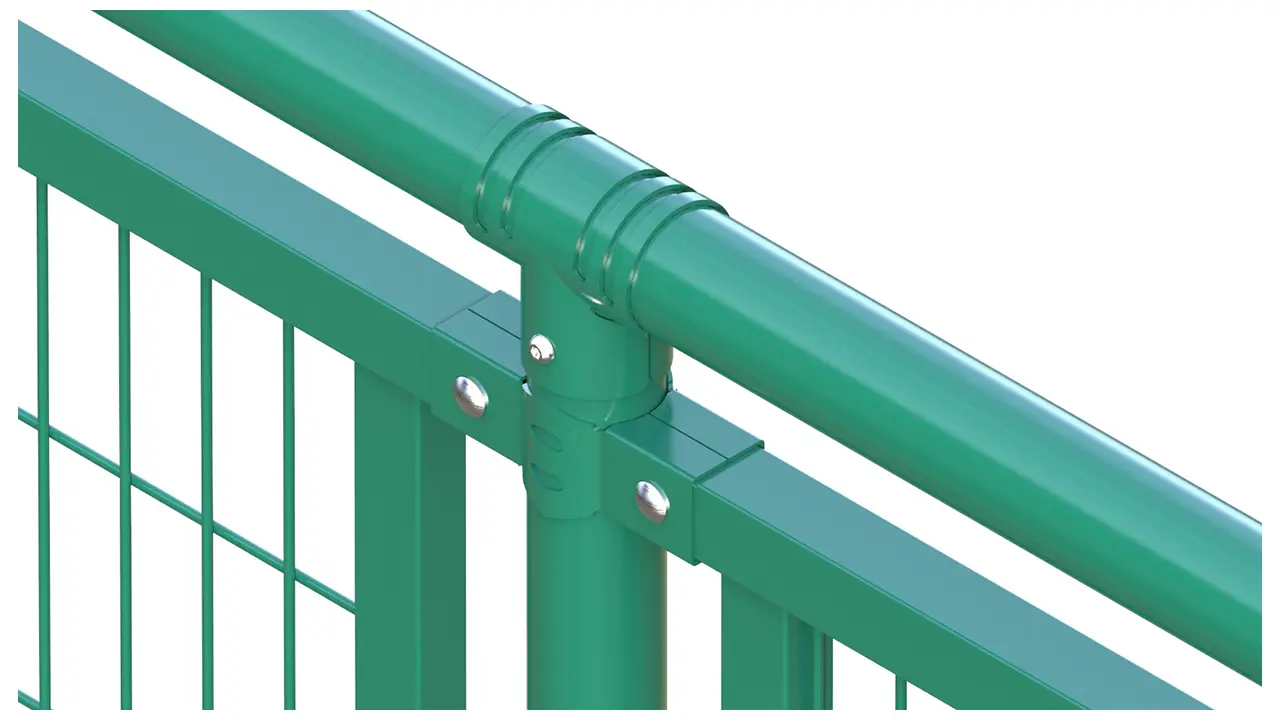

The posts and rails are connected with modular railing clamps made of 2.5 mm thick galvanised sheet metal.
| Reference | Description | Color |
|---|---|---|
| FC.MP.10.4006.5090 | Description Handrail curve Ø 50 mm at 90º |
GALV
|
| FC.MP.10.4006.6090 | Description Handrail curve Ø 60 mm at 90º |
GALV
|
| Reference | Description | Color |
|---|---|---|
| FC.MP.10.4011.5090 | Description Crosspiece curve Ø 50 mm at 90º |
GALV
|
| FC.MP.10.4011.6090 | Description Crosspiece curve Ø 60 mm at 90º |
GALV
|
| Reference | Description | Color |
|---|---|---|
| FC.AP.10.4510.5000 | Description Pillar shield Ø 50 mm |
GALV
|
| FC.AP.10.4510.6000 | Description Pillar shield Ø 60 mm |
GALV
|
| Reference | Description | Packaging |
|---|---|---|
| FC.AP.11.4502.5000 | Description Start clamp Ø 50 mm |
Packaging
GALV GI
|
| FC.AP.11.4502.6000 | Description Start clamp Ø 60 mm |
Packaging
GALV GI
|
| Reference | Description | Packaging |
|---|---|---|
| FC.AP.11.4500.5000 | Description T Clamp for Ø 50 mm tube |
Packaging
GALV GI
|
| FC.AP.11.4500.6000 | Description T Clamp for Ø 60 mm tube |
Packaging
GALV GI
|
| Reference | Description | Packaging |
|---|---|---|
| FC.AP.11.4505.5000 | Description Cross clamp Ø 50 mm |
Packaging
GALV GI
|
| FC.AP.11.4505.6000 | Description Cross clamp Ø 60 mm |
Packaging
GALV GI
|
