MARBELLA ENCLOSURE
RIGID ENCLOSURES
Anthracite Grey

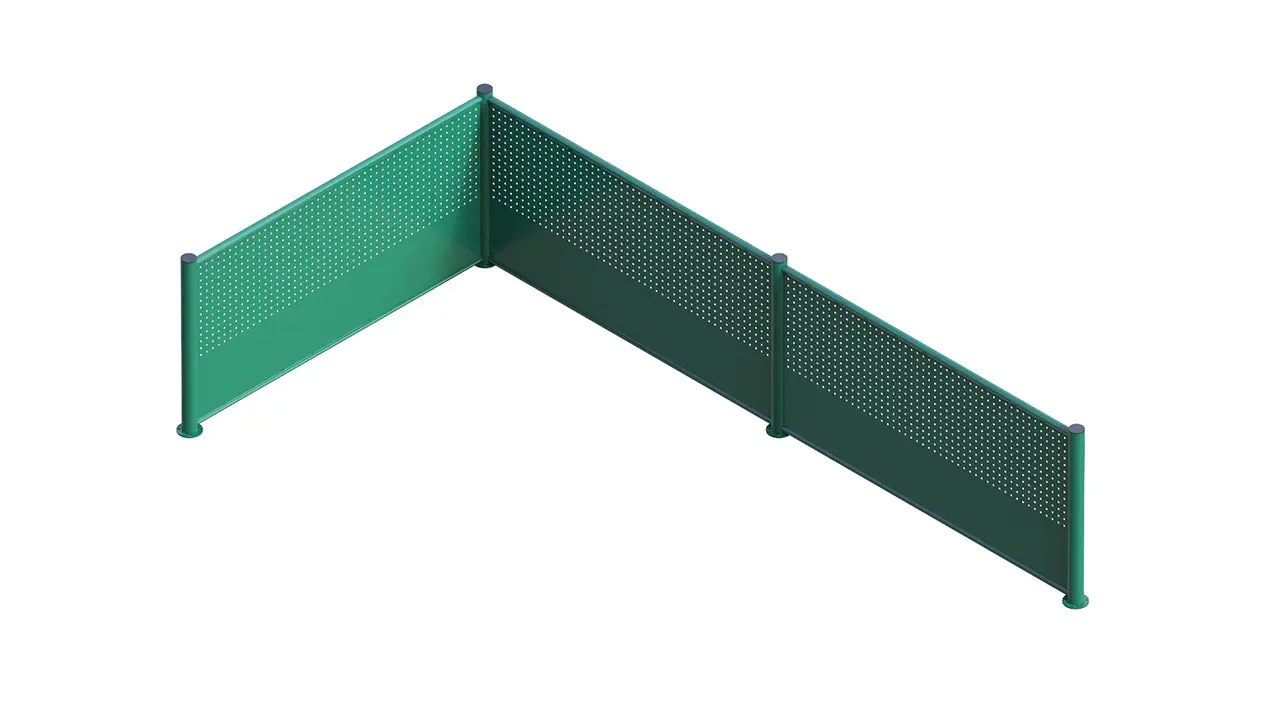

A modular perimeter enclosure, widely popular today for defining and securing outdoor spaces. One of the most interesting alternatives of perforated sheet metal enclosures, combining functionality and aesthetics in a unique way.
The Marbella perforated sheet metal enclosure is characterised by the fact that it is made of 1.5 mm thick perforated sheet metal panels, which gives it a modern and attractive appearance. The sheet metal panels are joined together using a modular system with Ø 80 x 2 mm pillars and Ø 40 x 1.5 mm crossbeams.
The pillars, crossbeams and metal sheets are connected without any type of fixation. The pillars are welded with a Ø 130 x 8 mm anchor plate.
| Reference | Dimensions | Color |
|---|---|---|
| FC.MP.51.0020.1065 | 2.00 x 1.00 m |
6005
|
| FC.MP.51.0020.1565 | 2.00 x 1.50 m |
6005
|

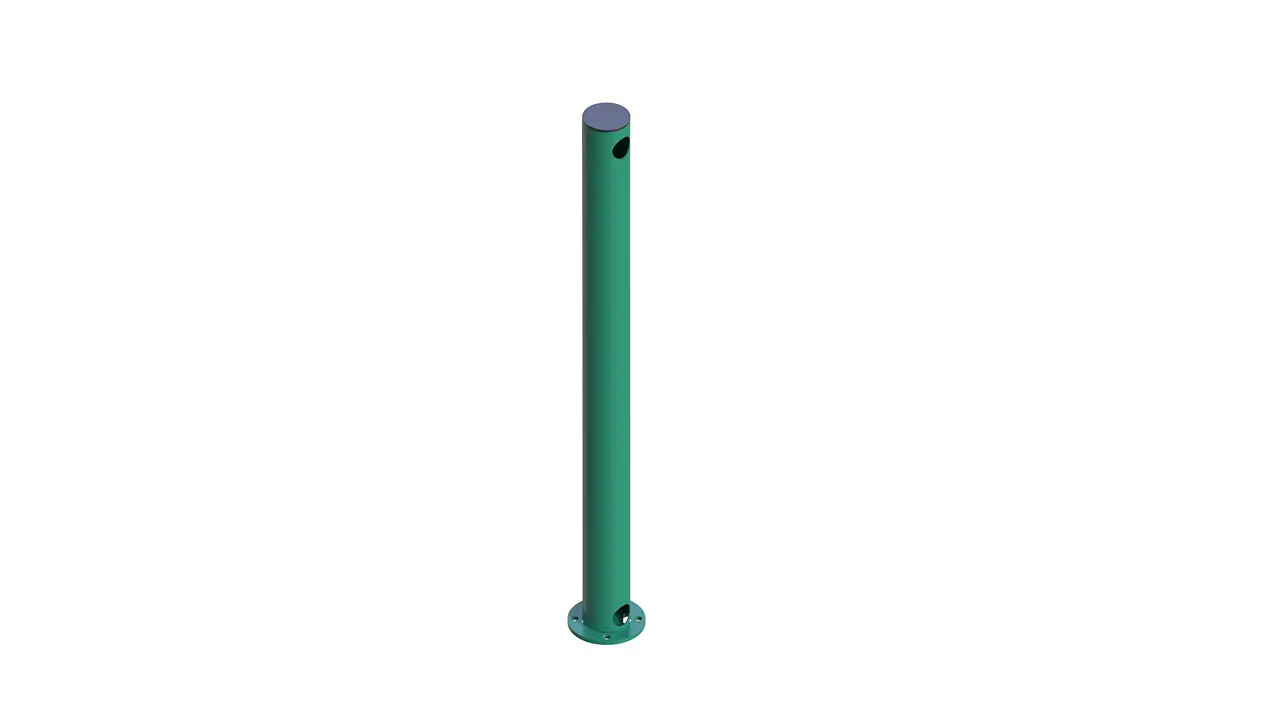

Posts for fixing the Marbella perforated sheet metal enclosure
Posts made of galvanised steel tube Ø80 x 2 mm and anchor plate Ø 130 x 8 mm. We manufacture corner, centre or starting posts depending on the needs of the enclosure.
| Reference | Dimensions | Color |
|---|---|---|
| FC.MP.51.3180.1065 | Ø 80 x 2 x 1,000 mm with plate |
6005
|
| FC.MP.51.3180.1565 | Ø 80 x 2 x 1,500 mm with plate |
6005
|

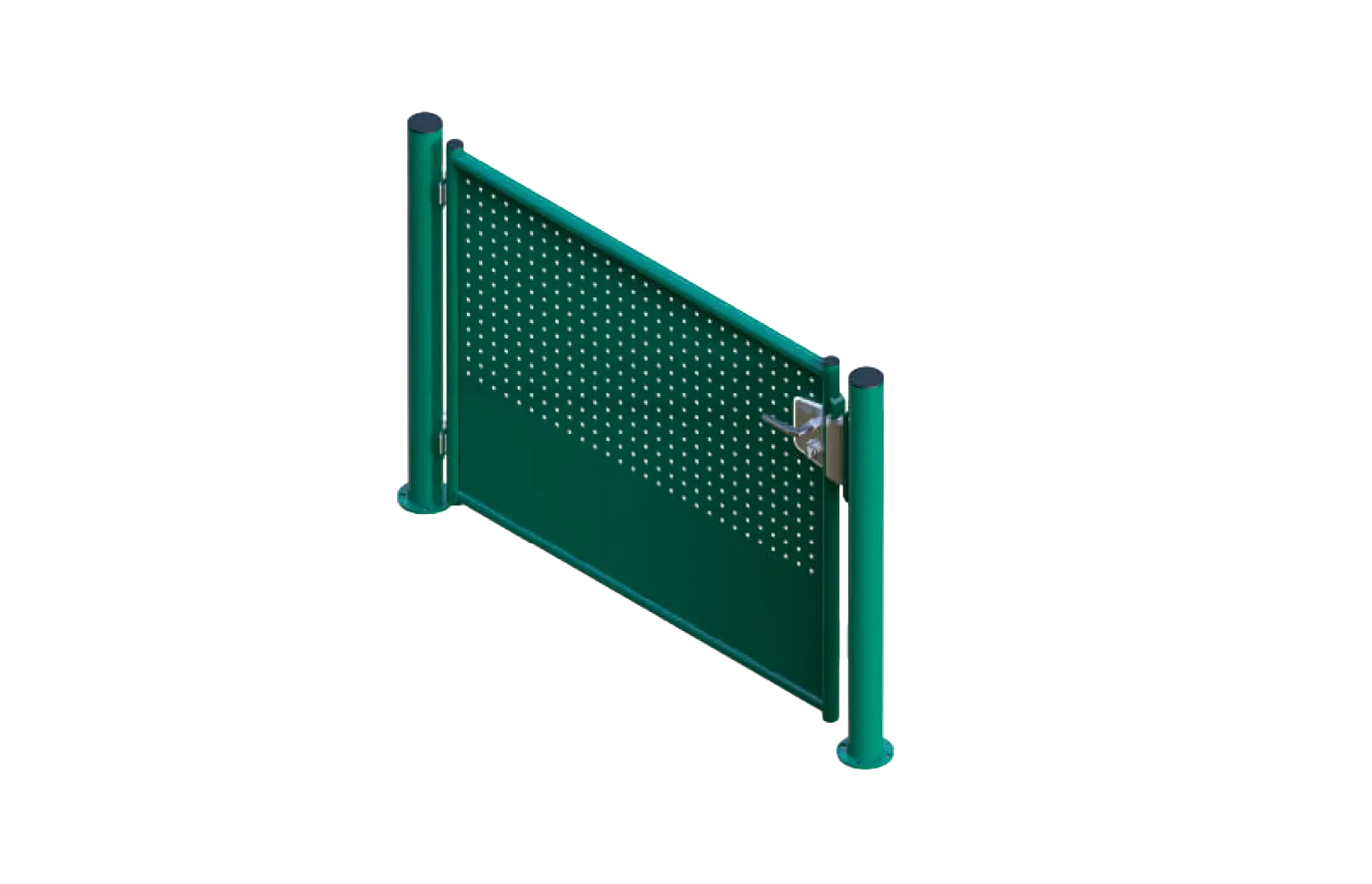

Gate for the Marbella perforated sheet metal enclosure
The Marbella perforated sheet metal enclosure is characterised by its 1.5 mm thick perforated sheet metal panels, which provides a modern and attractive appearance. The sheet metal panels are joined together using a modular system with Ø 80 x 2 mm pillars and Ø 40 x 1.5 mm crossbeams.
| Reference | Number of leaves | Mesh height | Color |
|---|---|---|---|
| FP.CH.51.2110.2065 | 1-H | 1.00 x 2.00 m |
6005
|
| FP.CH.51.2230.2065 | 2-H | 3.00 x 2.00 m |
6005
|
| FP.CH.51.2240.2065 | 2-H | 4.00 x 2.00 m |
6005
|
