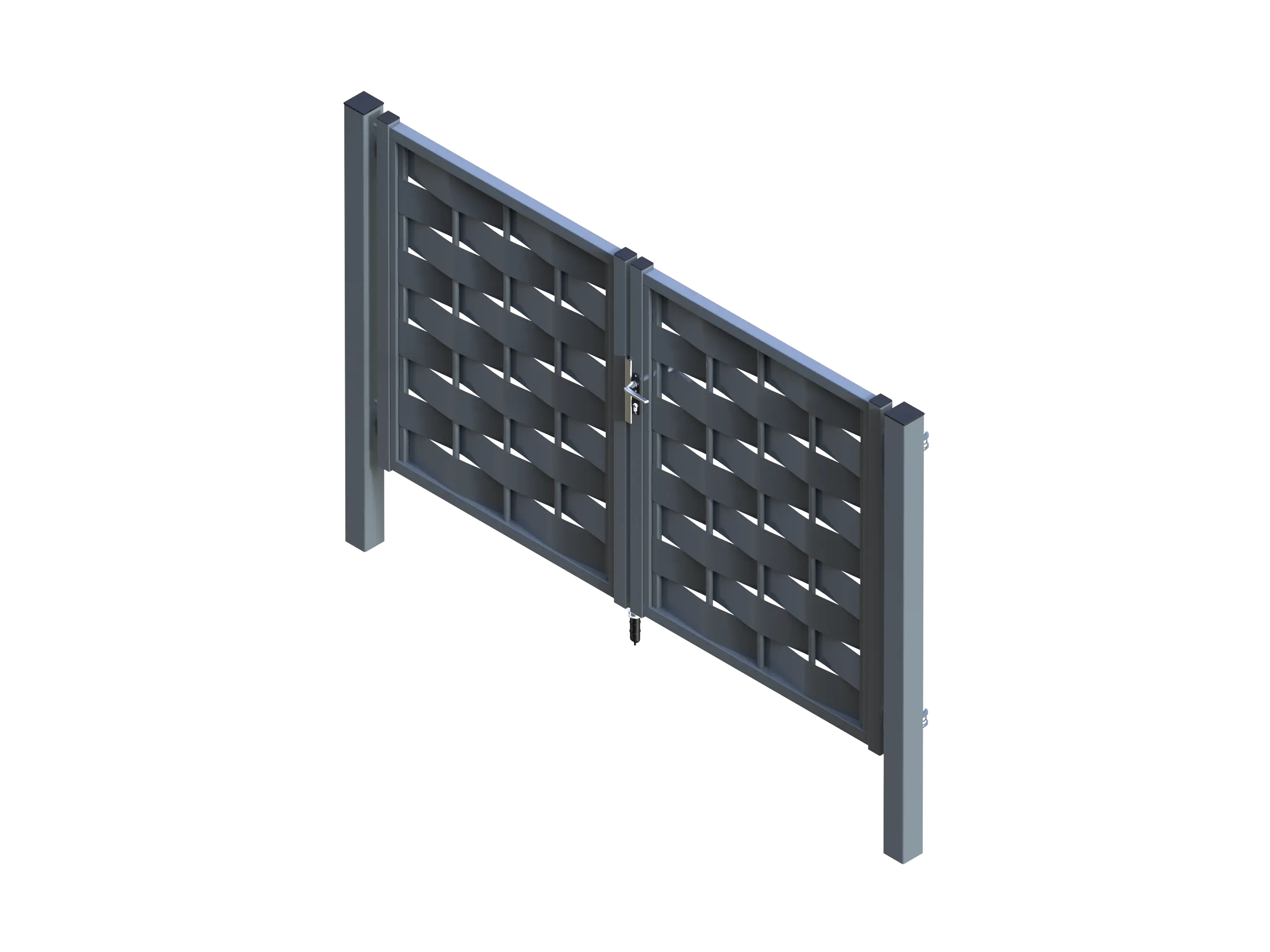

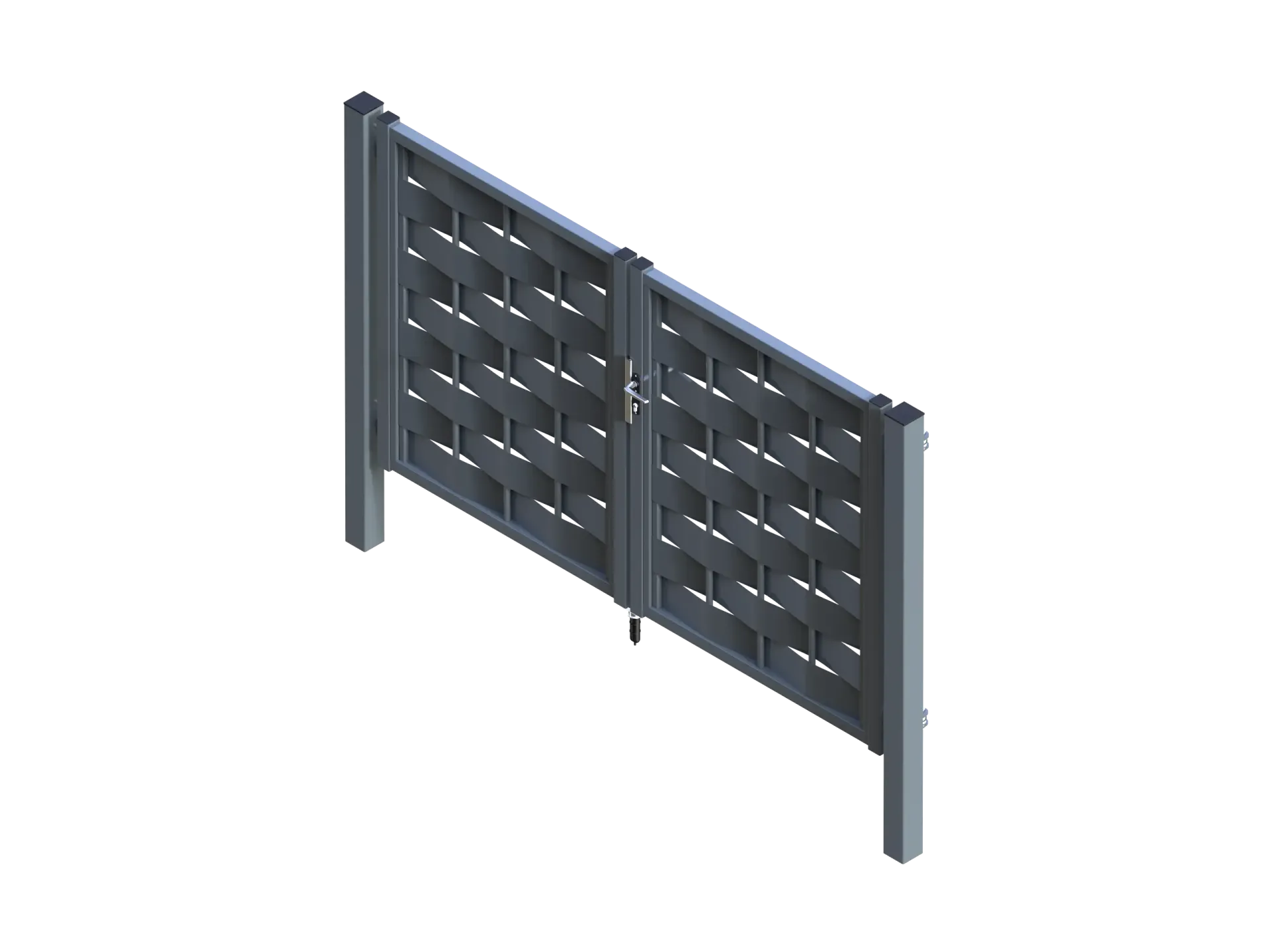

Woven sheet metal gates
Swing, sliding or self-supporting
Description
We can manufacture swing gates, sliding gates with rail or self-supporting gates.
They can be manual, manufactured with Locinox accessories, or motorised, either by the customer or directly from the factory supplying the motorisation with the option of pre-installation of the wiring. A box can be added to protect the motor and connections.
The motorisations can be customised on demand, including the desired components.
| Reference | Nº leaves | Dimensions | Color |
|---|---|---|---|
| FP.CH.65.4121.1010 | Nº leaves 1-L | Dimensions 1.20 x 1.00 m |
6005
|
| FP.CH.65.4121.1015 | Nº leaves 1-L | Dimensions 1.20 x 1.50 m |
6005
|
| FP.CH.65.4121.1020 | Nº leaves 1-L | Dimensions 1.20 x 2.00 m |
6005
|
| FP.CH.65.4122.3020 | Nº leaves 2-L | Dimensions 3.00 x 2.00 m |
6005
|
| FP.CH.65.4122.4020 | Nº leaves 2-L | Dimensions 4.00 x 2.00 m |
6005
|

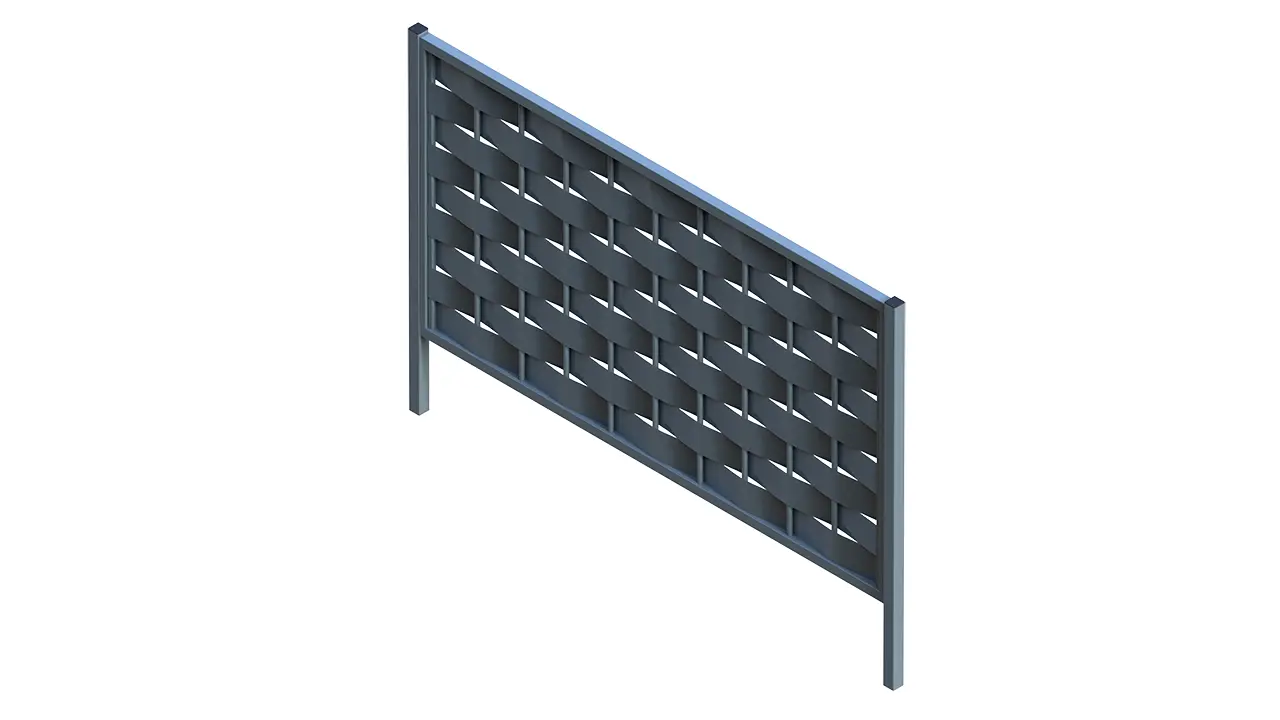

Woven sheet metal enclosure

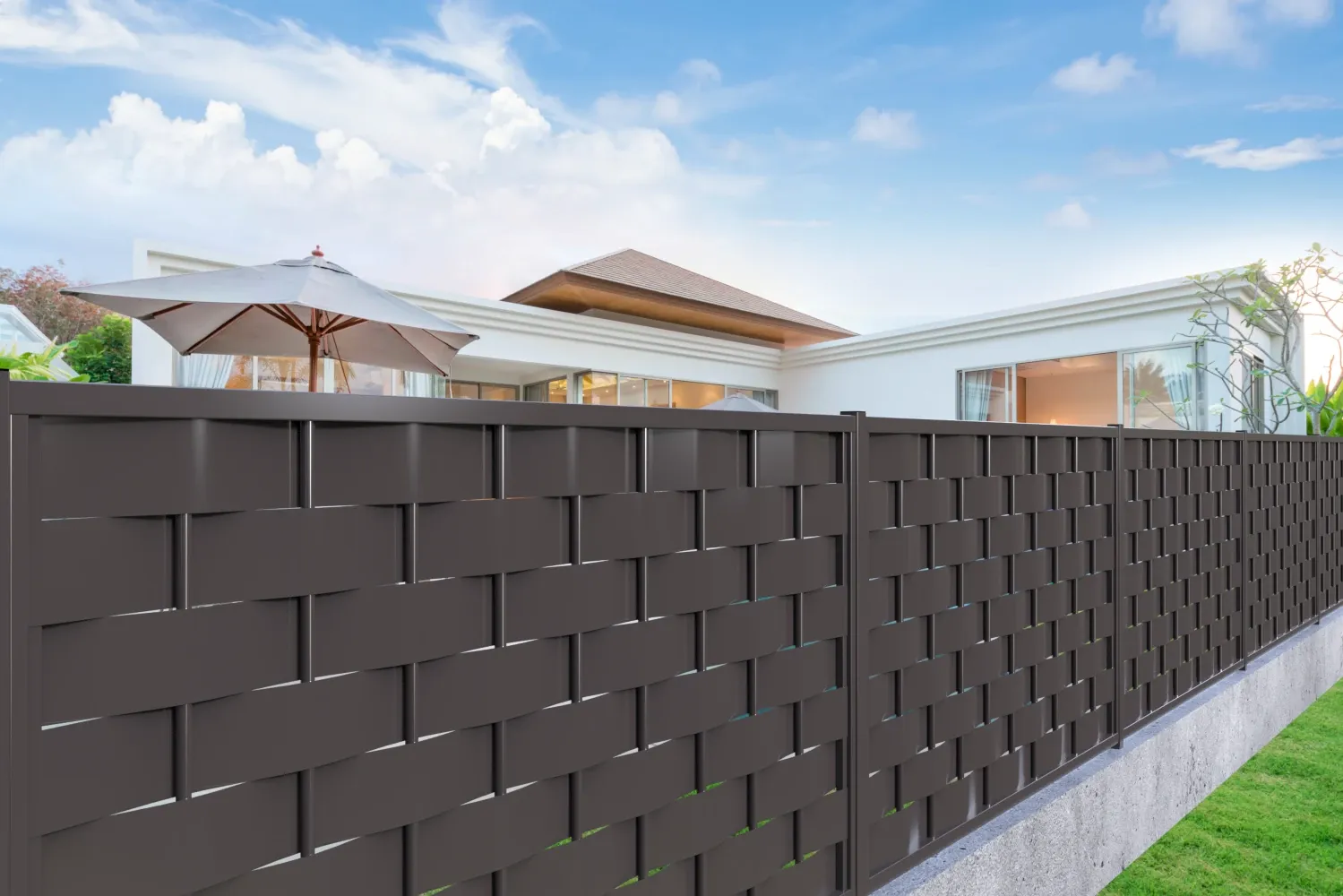

The woven sheet metal enclosure is characterised by a design of slats that undulate between vertical bars, which provide a modern and attractive appearance.
Description
The woven sheet metal enclosure is characterised by the fact that it is made of 1.5 mm thick, 150 mm wide strips of sheet metal.
The sheet metal strips are threaded through vertical tubes of Ø 25 mm and end on vertical crossbeams.
Posts made of galvanised tube with bracket clamp for recessing or with base plate for screwing. FR14 metal fixing system.
Simultaneous installation which is carried out by placing the post followed by the panel and the next post.
| Reference | Dimensions | Color |
|---|---|---|
| FC.MP.41.0026.1065 | Dimensions 2.60 x 1.00 m |
6005
|
| FC.MP.41.0026.1265 | Dimensions 2.60 x 1.20 m |
6005
|
| FC.MP.41.0026.1565 | Dimensions 2.60 x 1.50 m |
6005
|
| FC.MP.41.0026.1765 | Dimensions 2.60 x 1.75 m |
6005
|
| FC.MP.41.0026.2065 | Dimensions 2.60 x 2.00 m |
6005
|

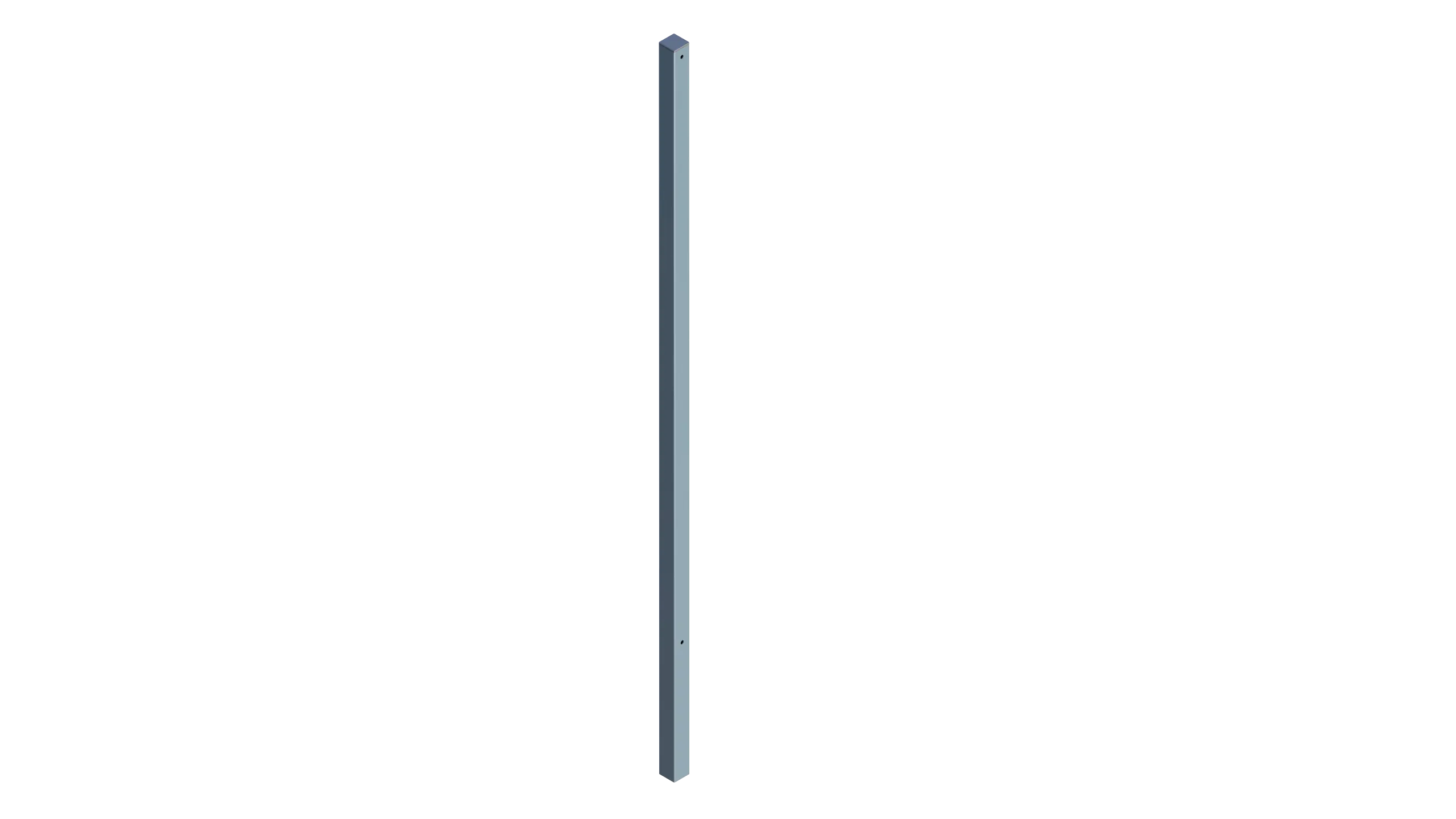

Woven sheet metal posts and accessories
Posts and fixing accessories for woven sheet metal enclosure.
Description

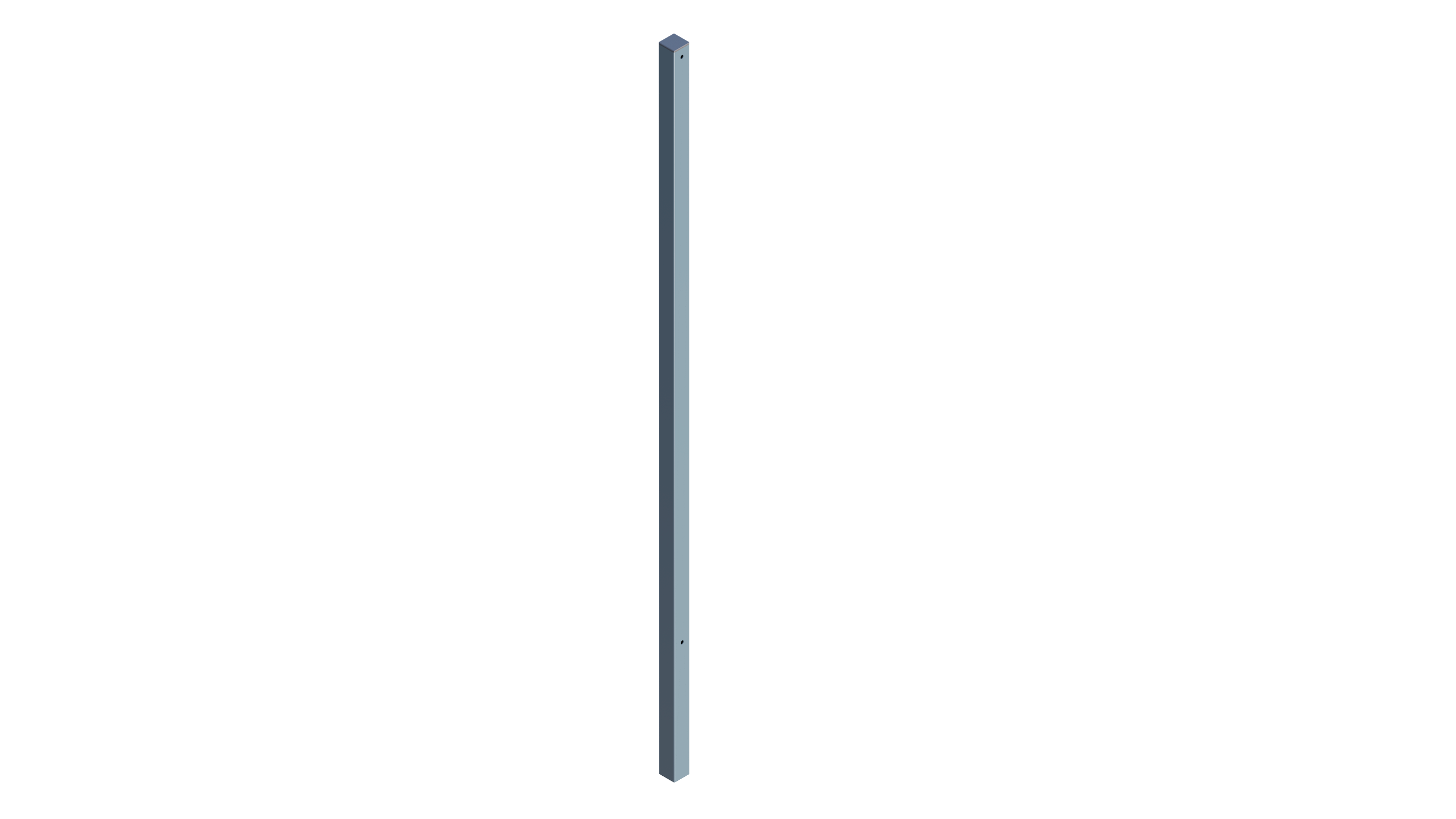

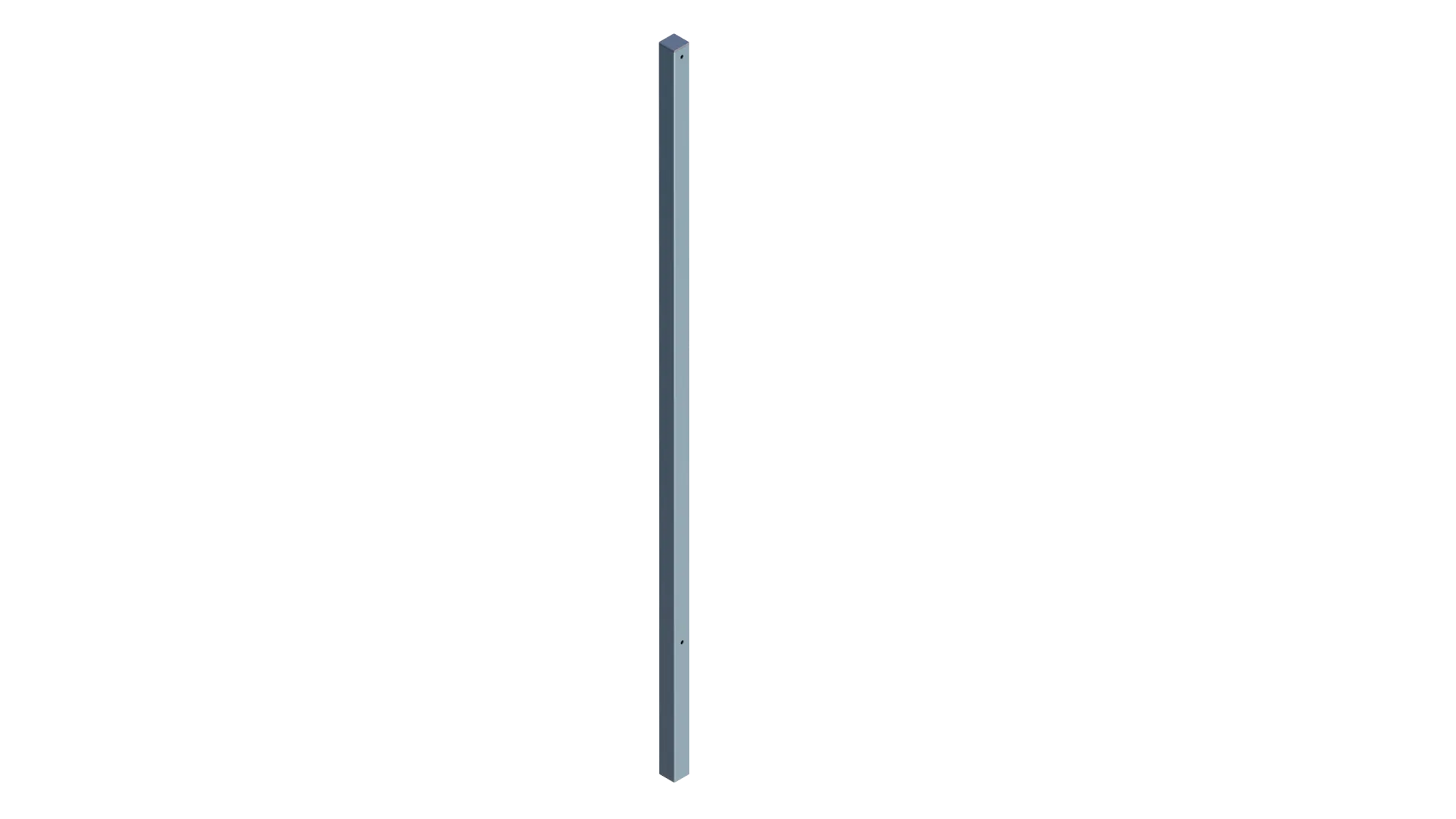

60 x 60 x 2 mm square posts and FR14 fixing bracket. Both a recessing post or a post with plate to be screwed on concrete walls are an option.
| Reference | Dimensions | Fencing Height | Color |
|---|---|---|---|
| FC.MP.41.1060.1065 | Dimensions 60 x 60 x 1.350 mm | Fencing Height 1.00 m |
6005
|
| FC.MP.41.1060.1265 | Dimensions 60 x 60 x 1.500 mm | Fencing Height 1.20 m |
6005
|
| FC.MP.41.1060.1565 | Dimensions 60 x 60 x 1.800 mm | Fencing Height 1.50 m |
6005
|
| FC.MP.41.1060.1765 | Dimensions 60 x 60 x 2.100 mm | Fencing Height 1.75 m |
6005
|
| FC.MP.41.1060.2065 | Dimensions 60 x 60 x 2.350 mm | Fencing Height 2.00 m |
6005
|
| Reference | Dimensions | Fencing Height | Color |
|---|---|---|---|
| FC.MP.41.1160.1065 | Dimensions 60 x 60 x 1.050 mm | Fencing Height 1.00 m |
6005
|
| FC.MP.41.1160.1265 | Dimensions 60 x 60 x 1.200 mm | Fencing Height 1.20 m |
6005
|
| FC.MP.41.1160.1565 | Dimensions 60 x 60 x 1.500 mm | Fencing Height 1.50 m |
6005
|
| FC.MP.41.1160.1765 | Dimensions 60 x 60 x 1.800 mm | Fencing Height 1.75 m |
6005
|
| FC.MP.41.1160.2065 | Dimensions 60 x 60 x 1.950 mm | Fencing Height 2.00 m |
6005
|
| Reference | Dimensions | Color |
|---|---|---|
| FC.AP.20.0505.5050 | Dimensions 50 x 50 mm |
Zinc
|
