FR14 ENCLOSURE

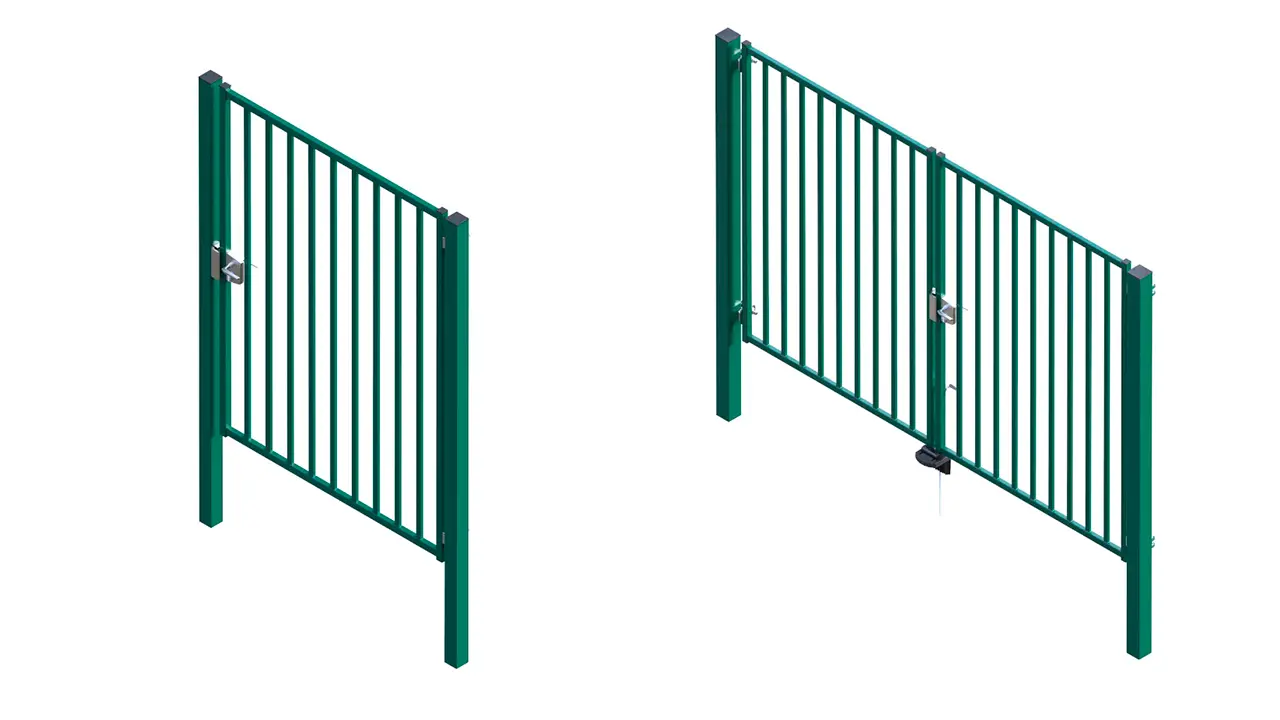

Folding gates made of galvanised tube plus subsequent plasticising treatment.

The double leaf gates are manufactured in two models, STYLE for a lighter finish or TITAN for a stronger and more robust finish, manufactured with 30 x 20 x 1.5 mm bars and uprights whose size depends on the model and dimensions.

Pillars manufactured in different sections according to the dimensions of the gate which can be both recessed or screwed with a base plate. Locinox accessories.

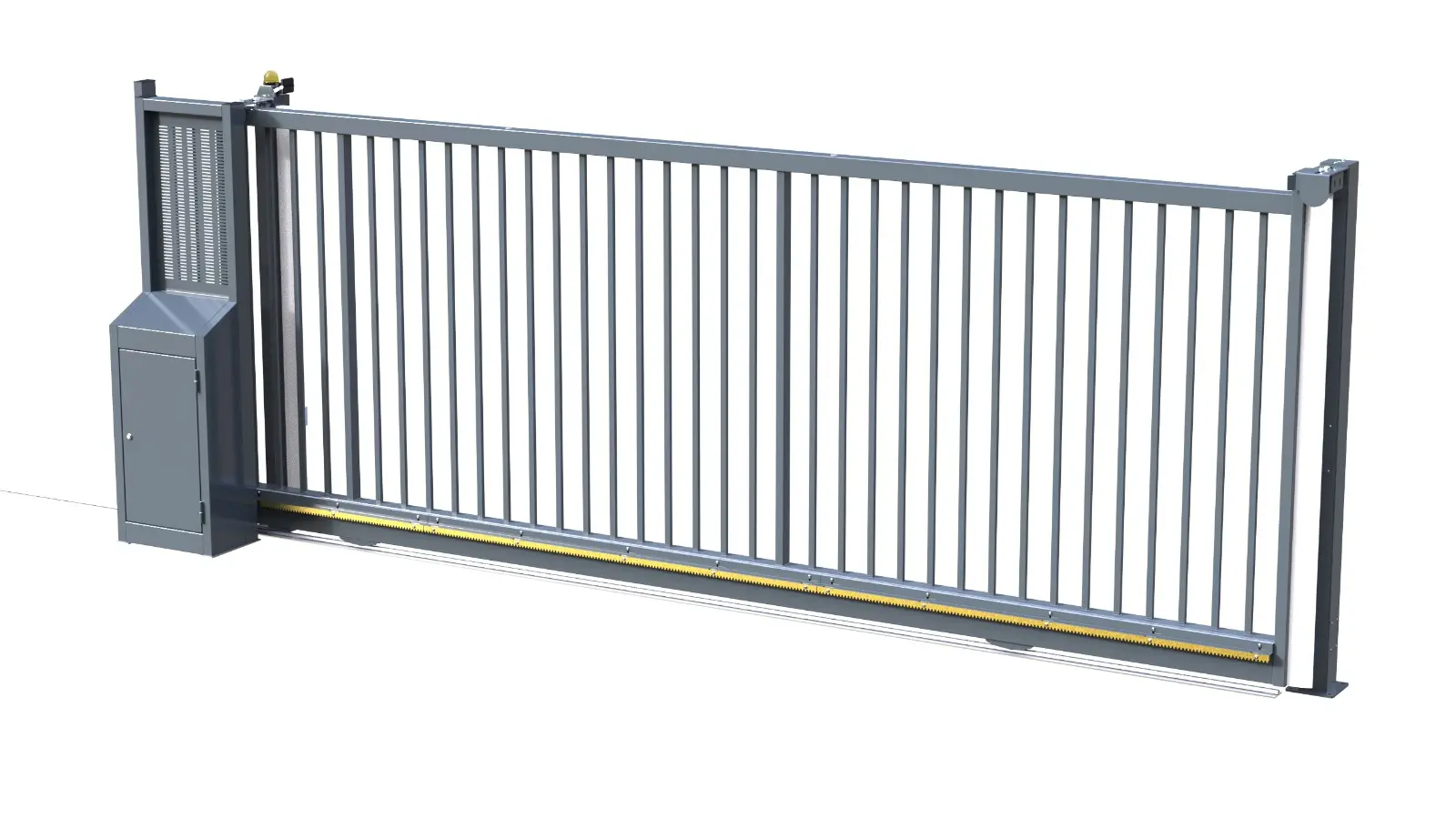

Sliding gates made of galvanised tube plus subsequent plasticising treatment.

They are manufactured in two models, STYLE for a lighter finish or TITAN for a stronger and more robust finish. All machining is done in 3D laser cutting. Components manufactured with pickled sheet metal and subsequently electro- zinc plated for higher protection.

The Style model gates are manufactured with manual opening or with the possibility to be motorised by the customer. The Titan model gates can be manual or motorised, which can be done either by the customer or directly from the factory - we supply the motorisation and the pre-installation of the wiring is also an option. A box can be added to protect the motor and connections.

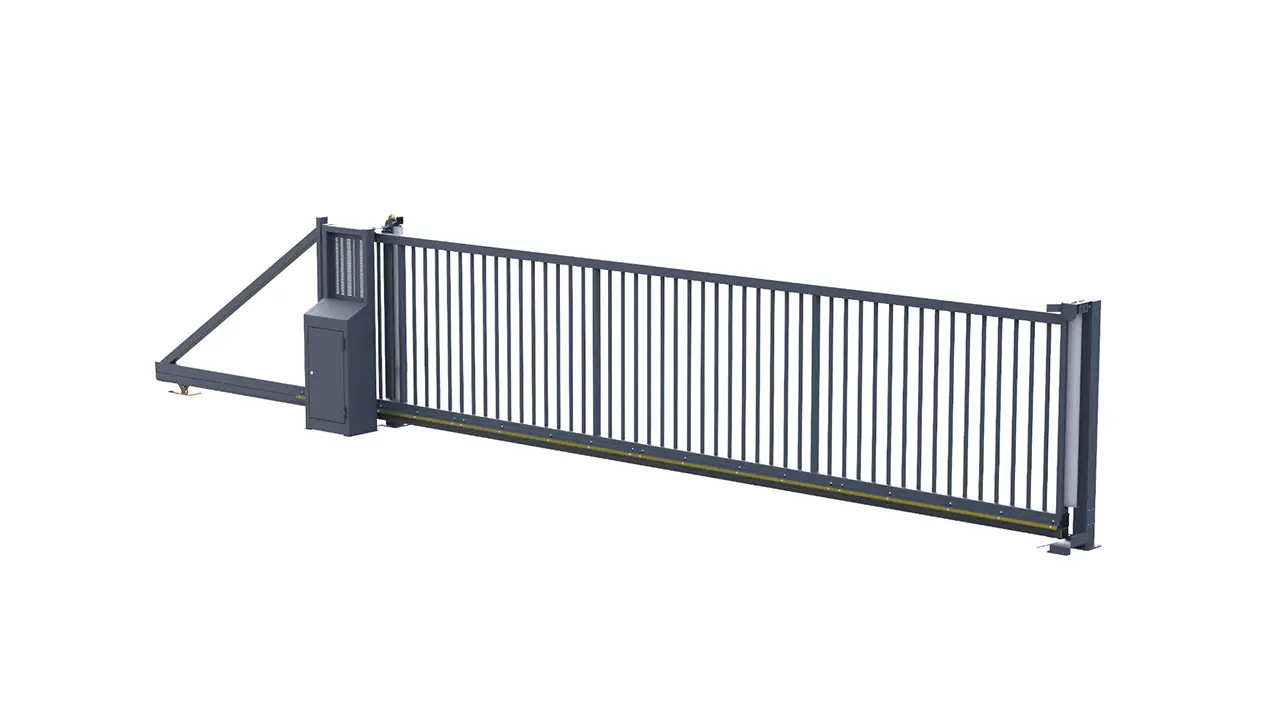

Self-supporting gates made of galvanised tube and subsequently plasticised. They are manufactured in two models, STYLE for a lighter finish or TITAN for a stronger and more robust finish. All machining is done in 3D laser cutting. Components manufactured with pickled sheet metal and subsequently electro-zinc plated for higher protection. These gates can be manual or motorised, either by the customer or directly from the factory, supplying the motorisation with the option of pre-installation of the wiring. A box can be added to protect the motor and connections.

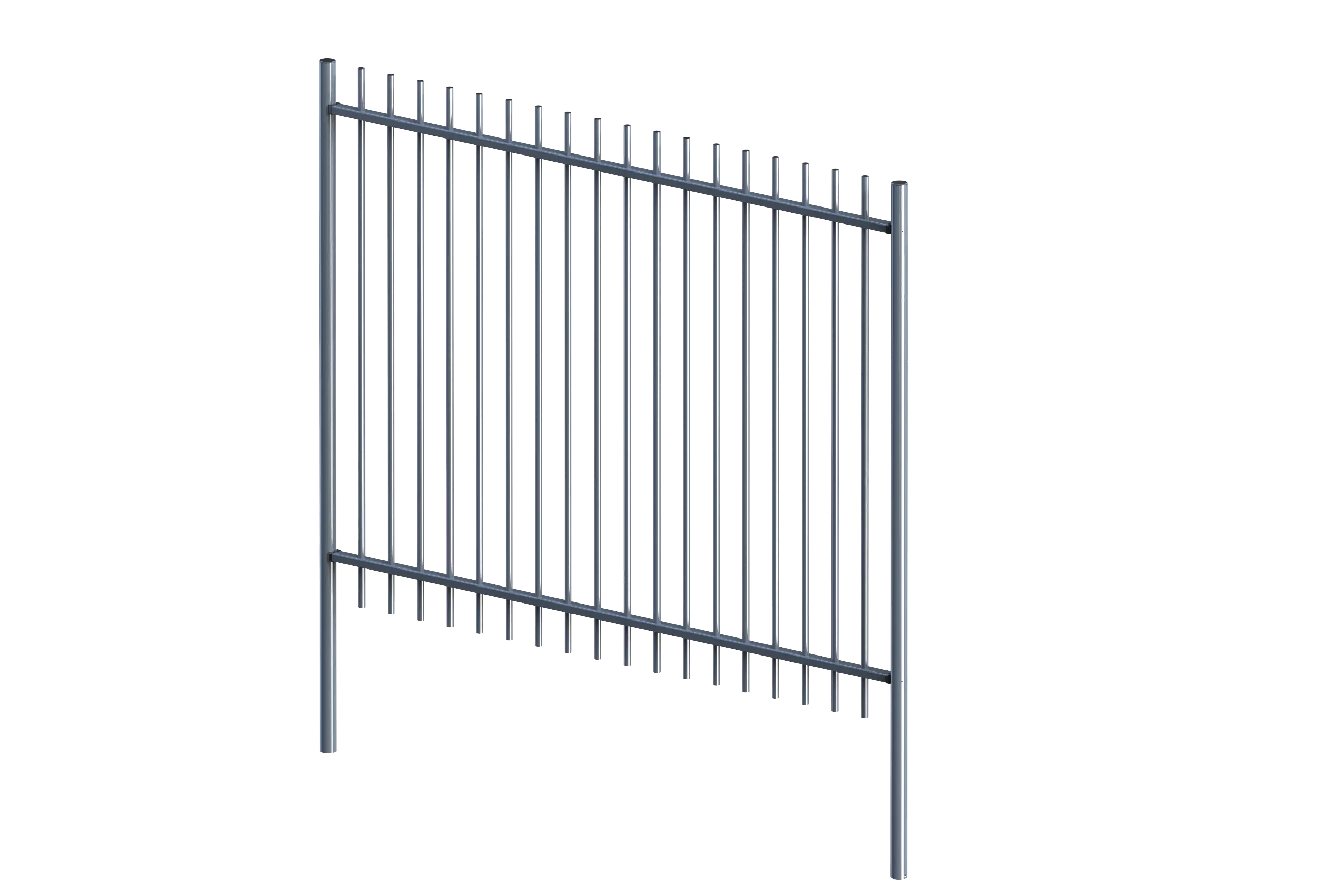

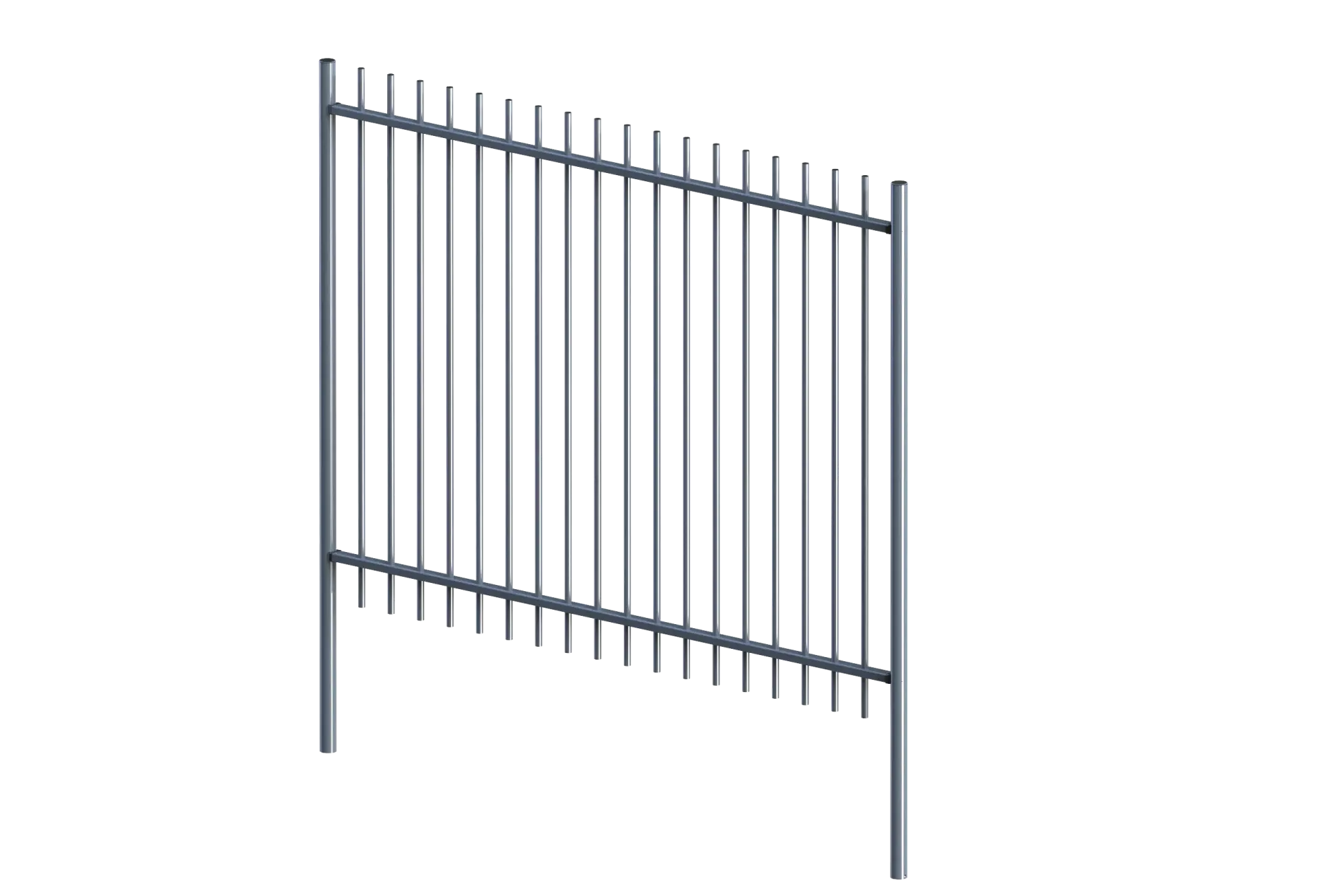

Panels consisting of two horizontal crossbeams with vertical round bars that pass through them, made of galvanised steel tubes and assembled by seamless hemming without welding.

The bar can be manufactured with either straight or miter cut at the top. The panels can be manufactured with two or more horizontal crossbeams.

Posts made of galvanised tube with bracket clamp for recessing or with base plate for screwing. Fixing system with polyamide part.

Simultaneous installation which is carried out by placing the post followed by the panel and the next post.

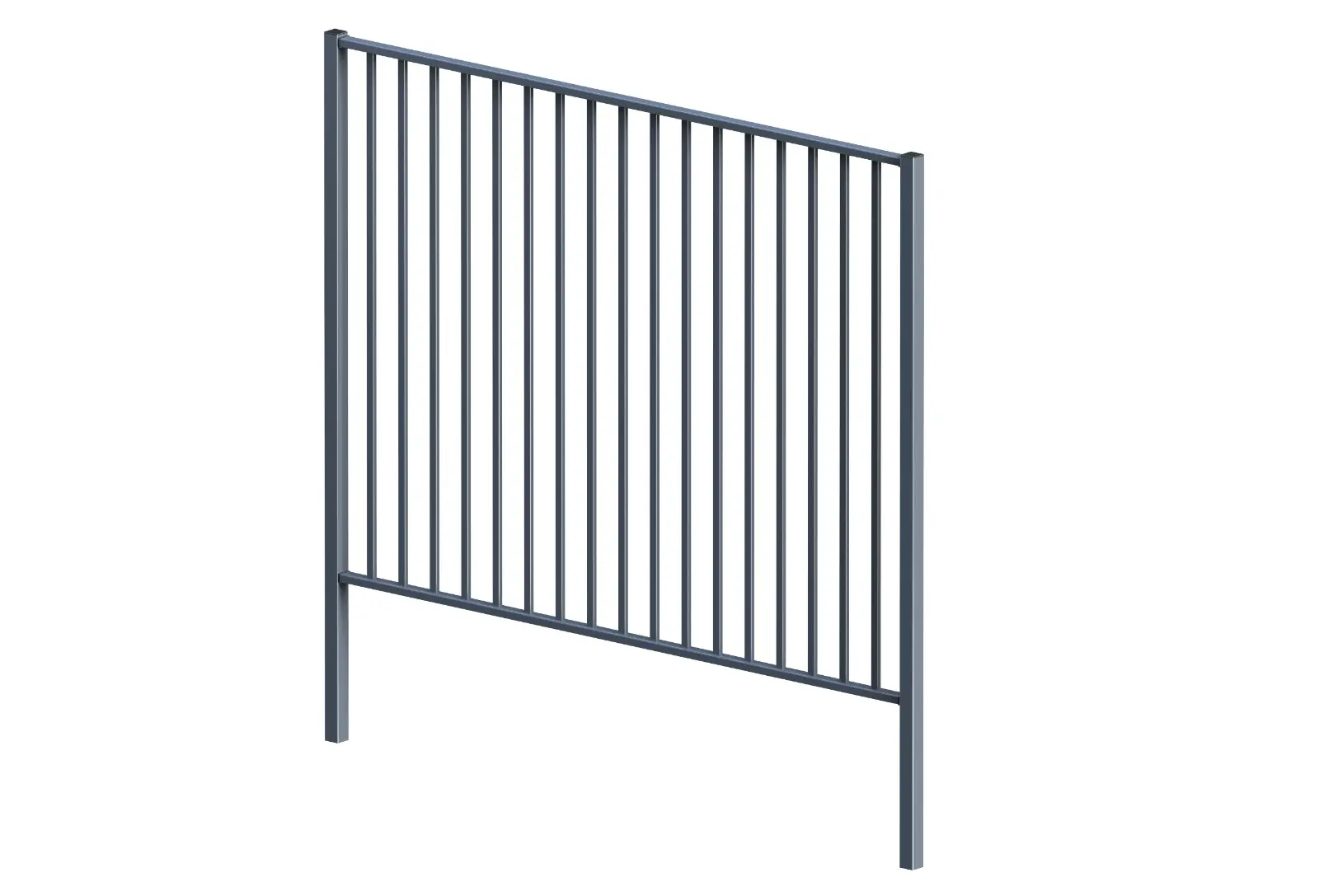

Panel made of galvanised steel tubes. Upper and lower crossbeams and welded vertical bars.

It can be manufactured with bars that pass through the crossbeam. Posts made of galvanised tube with bracket clamp for recessing or with base plate for screwing.

Fixing system with polyamide piece. Simultaneous installation which is carried out by placing the post followed by the panel and the next post.

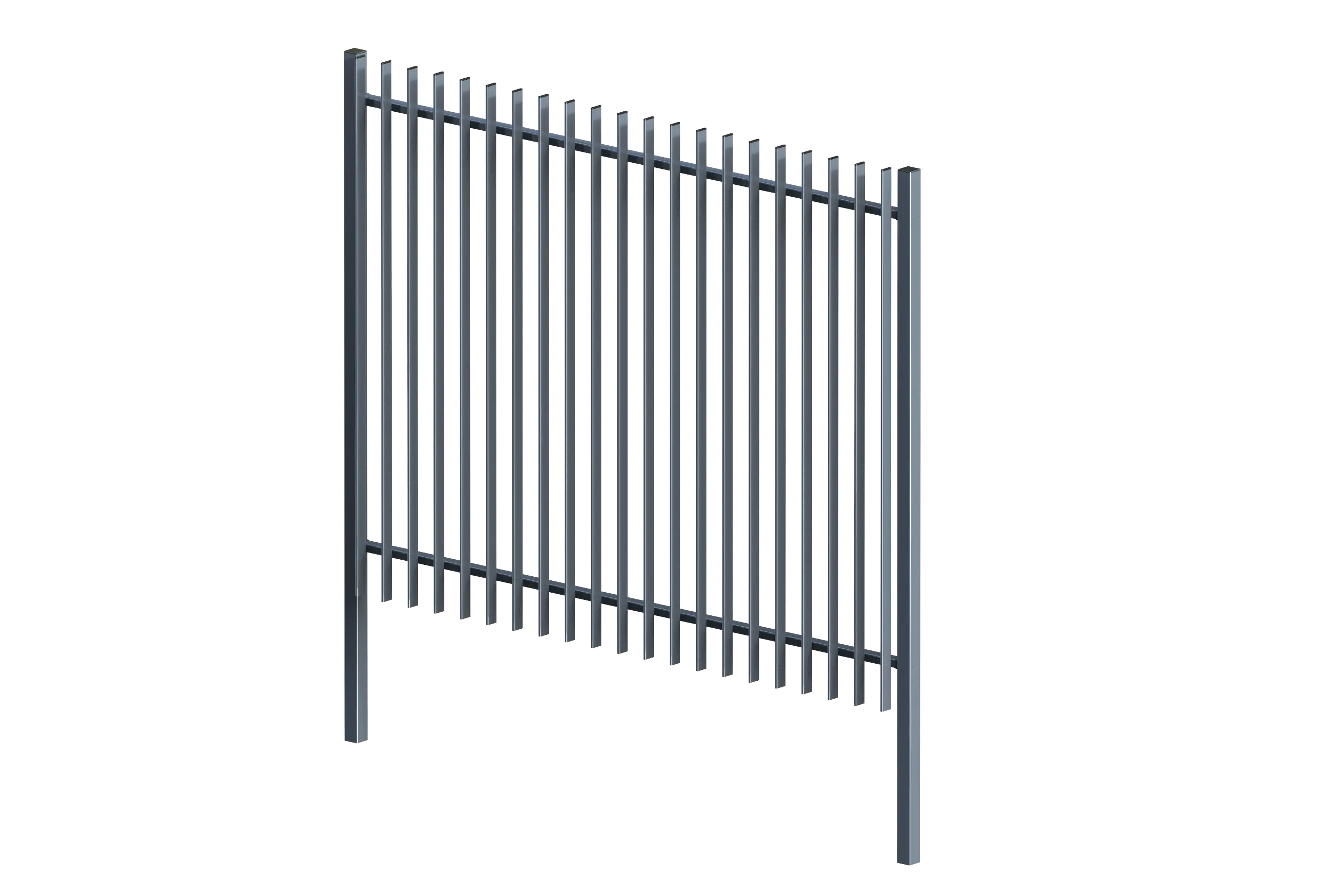

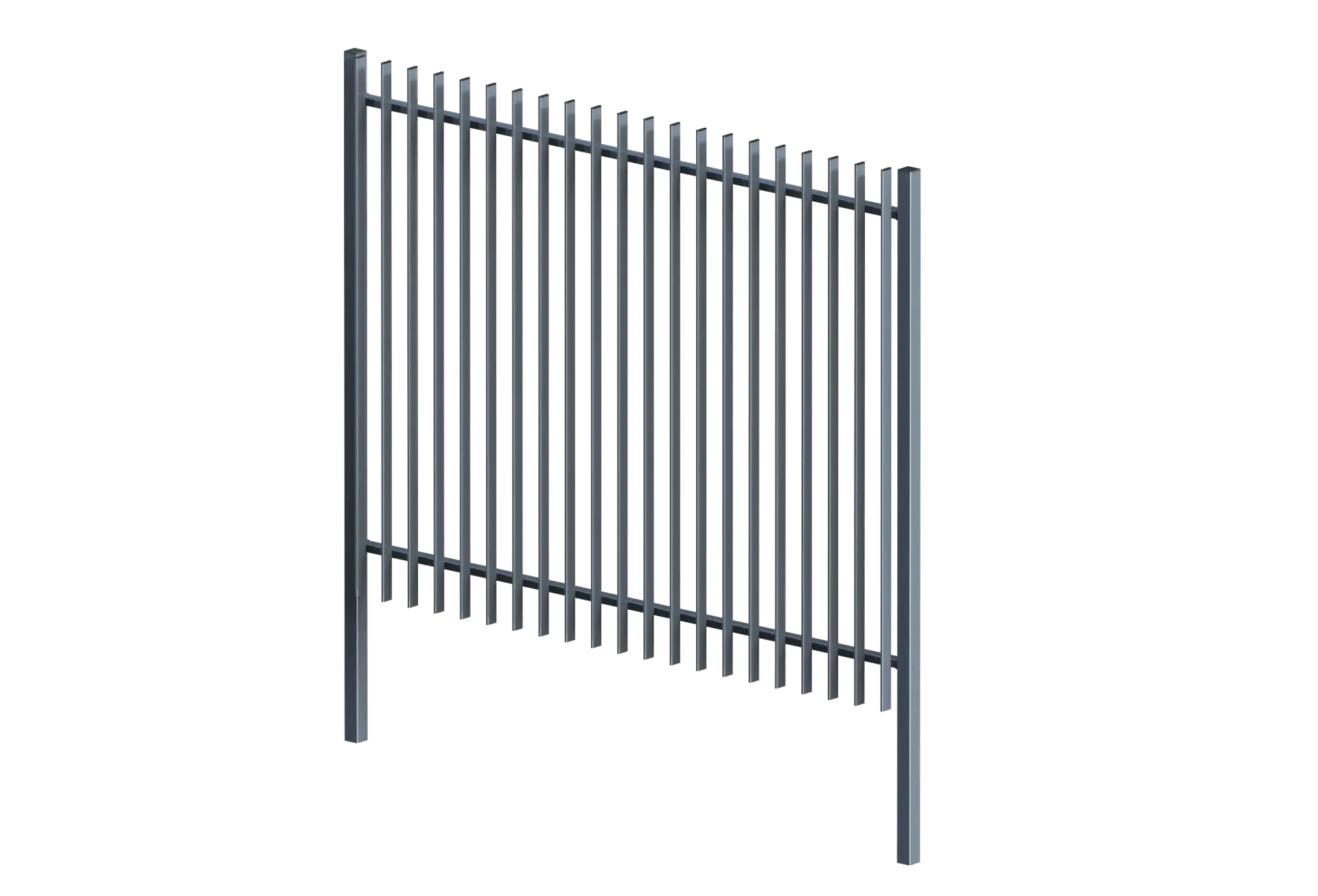

50x10 mm perpendicular bar fencing that creates a homogeneous front view by moving the posts to a second line. Ideal for residential, industrial or public areas. Fence made of galvanised steel tubes.

Upper and lower crossbeams with vertical bars that pass through them which are welded perpendicularly.

Posts made of galvanised tube with bracket clamp for recessing or with base plate to be screwed in. Simultaneous installation which is carried out by placing the post followed by the panel and the next post.

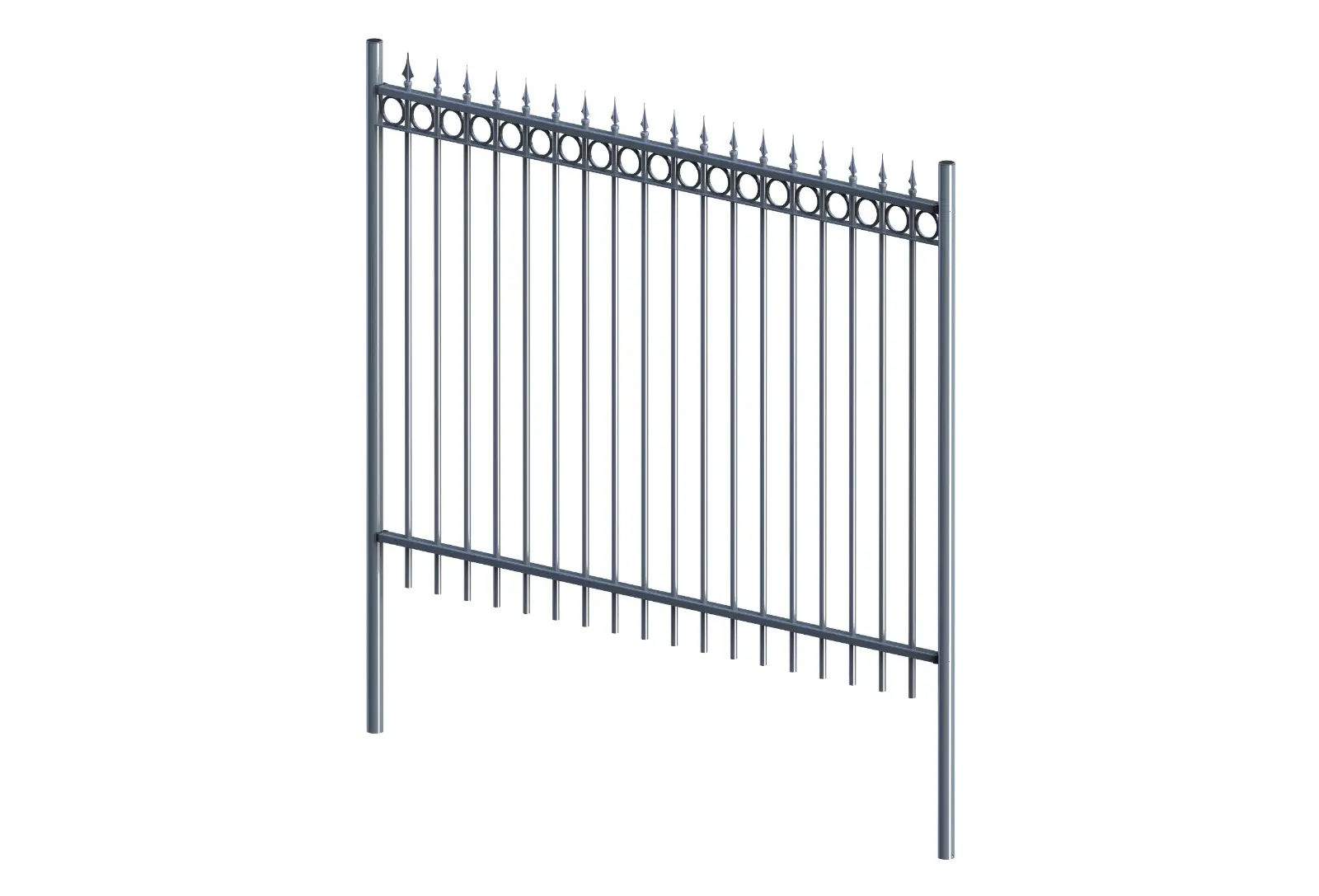

Panel made of galvanised steel tubes. Upper and lower crossbeams and vertical bars that pass through them with spearhead finish and decorated with intermediate crossbeam and hoops.

Posts made of galvanised tube with bracket clamp for recessing or with base plate for screwing. Fixing system with polyamide part. Simultaneous installation which is carried out by placing the post followed by the panel and the next post.

Panel made of galvanised steel tubes. Upper and lower crossbeams with vertical bars welded on both sides.

Posts made of galvanised tube with bracket clamp for recessing or with base plate for screwing. Fixing system with polyamide part. Simultaneous installation which is carried out by placing the post followed by the panel and the next post.

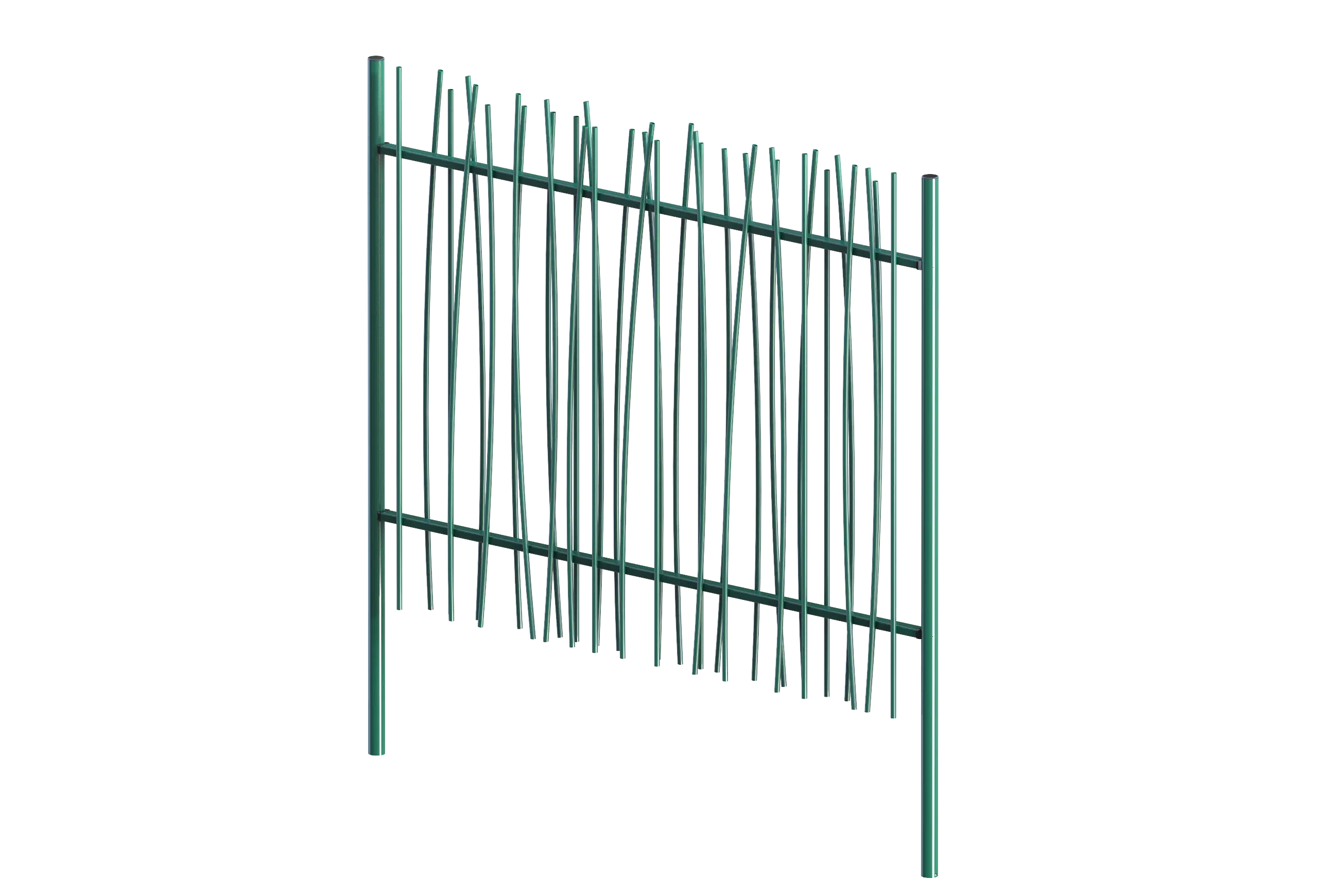

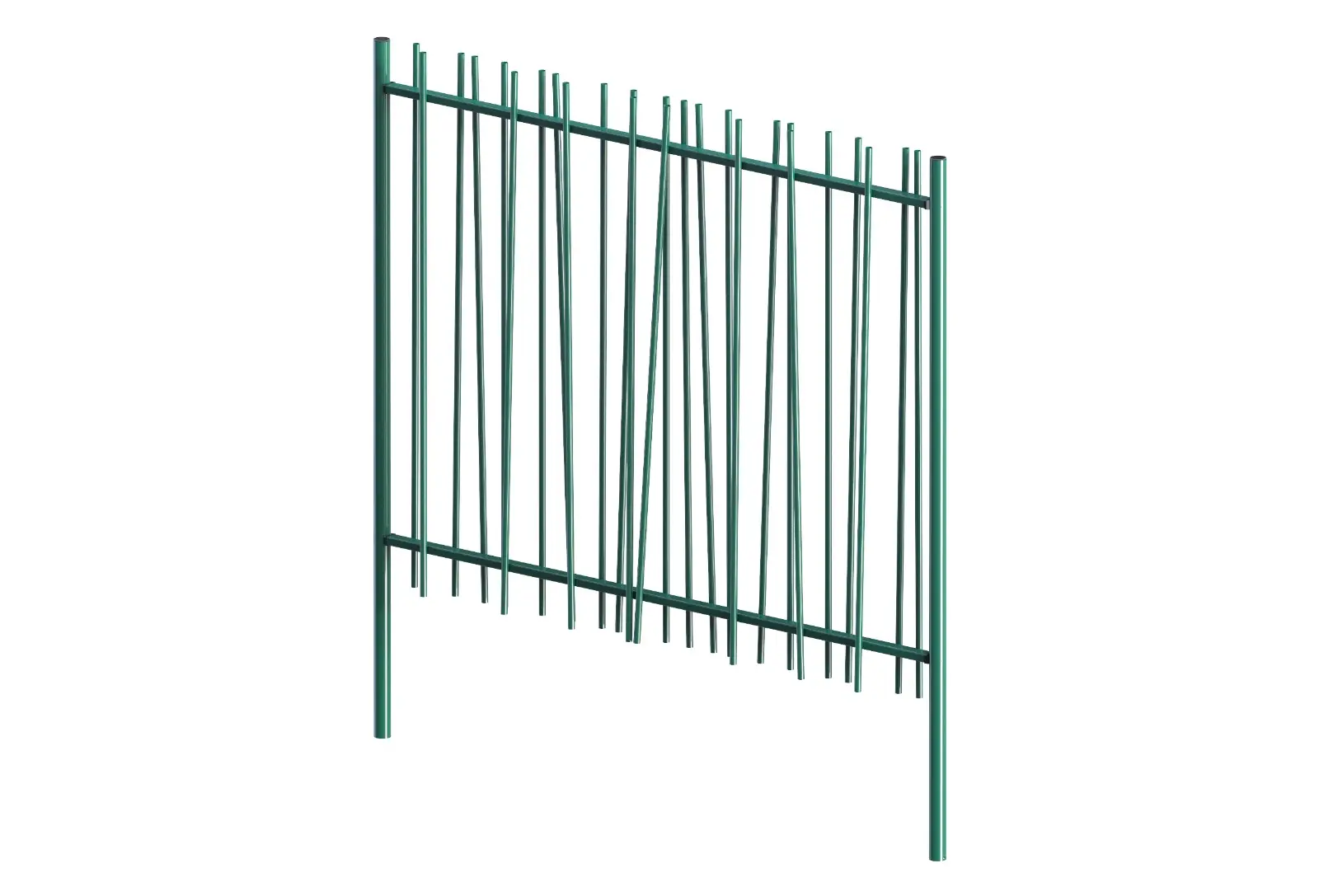

Panel made of galvanised steel tubes. Upper and lower crossbeams with vertical curved bars welded on both sides.

Posts made of galvanised tube with bracket clamp for recessing or with base plate for screwing. Fixing system with polyamide part. Simultaneous installation which is carried out by placing the post followed by the panel and the next post.

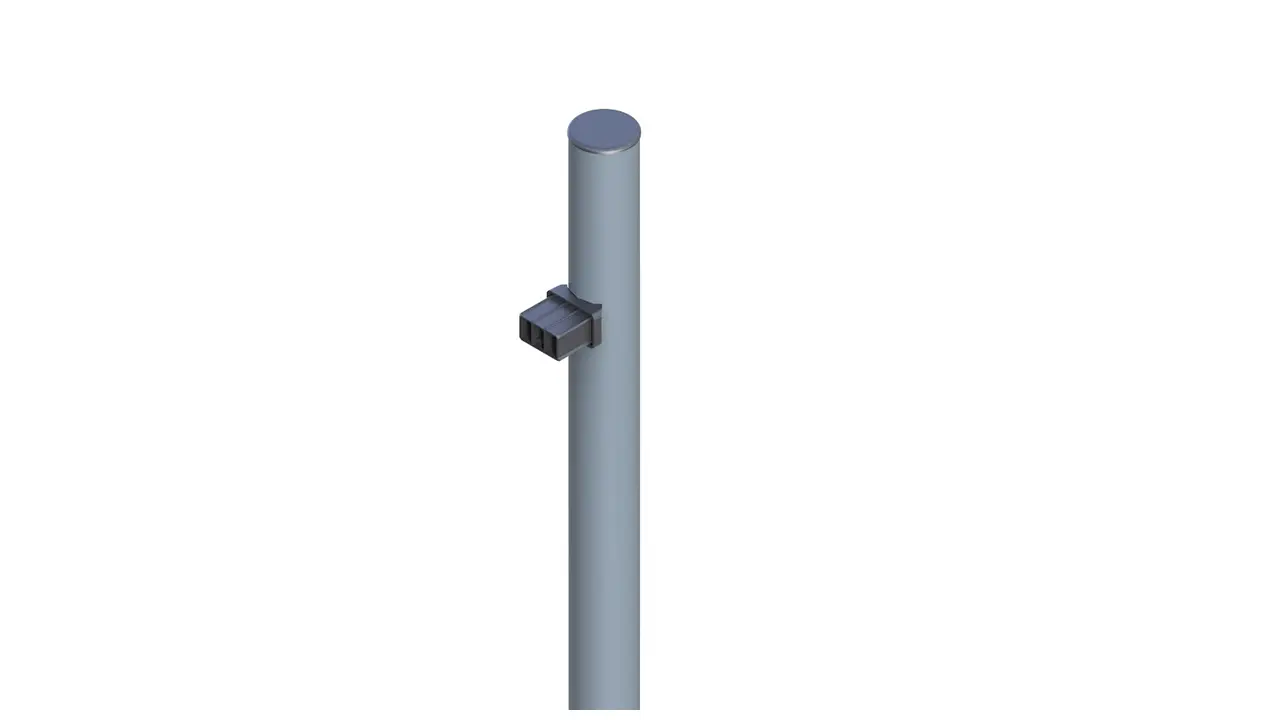

60 x 60 x 2 mm square posts or Ø 60 x 2 mm round posts to be recessed or screwed with plate.

Post fixation Ø60 x 2.0 mm P-R 50 x 30.

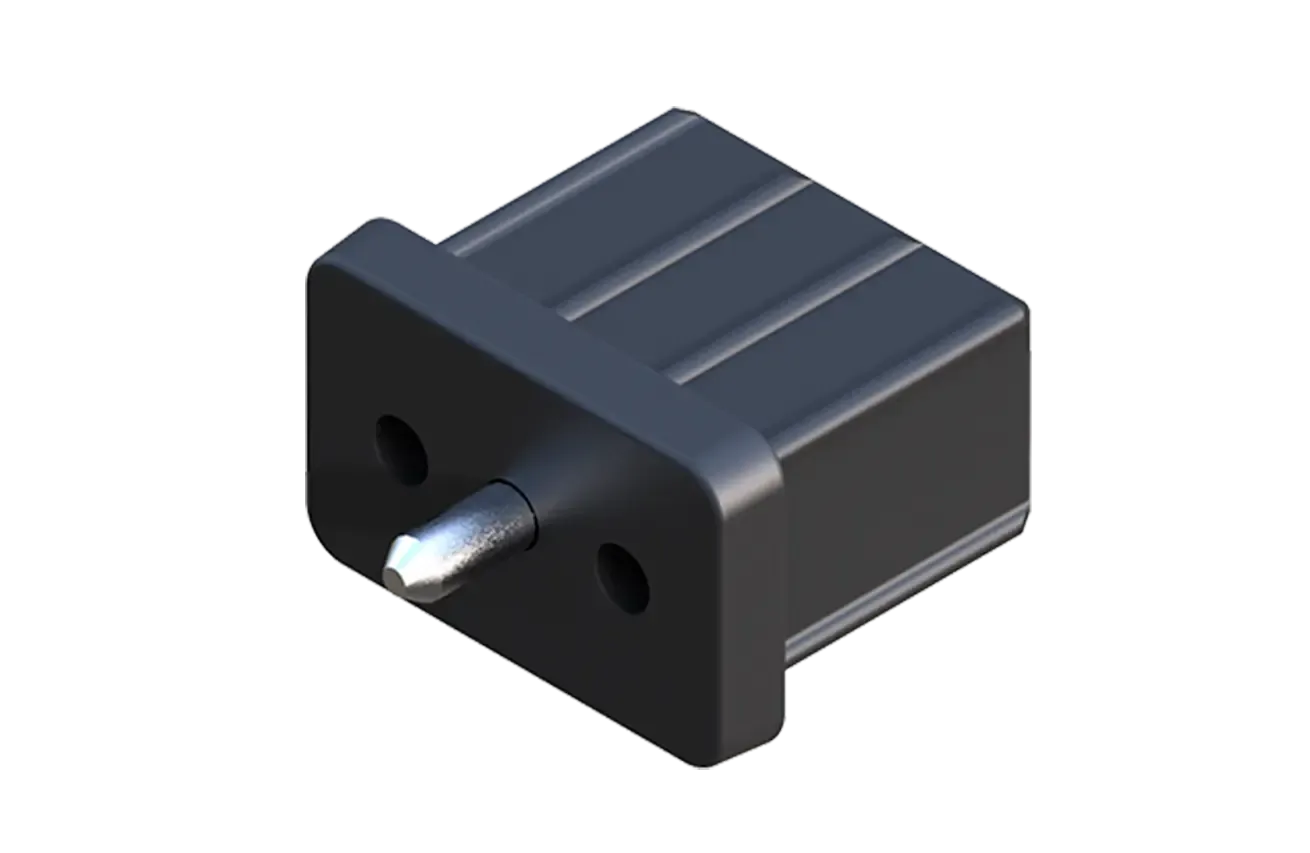

Post fixation 60 x 60 x 2.0 mm P50 x 30. Fixed using a fixing boss to facilitate a P 50 x 30 panel replacement.

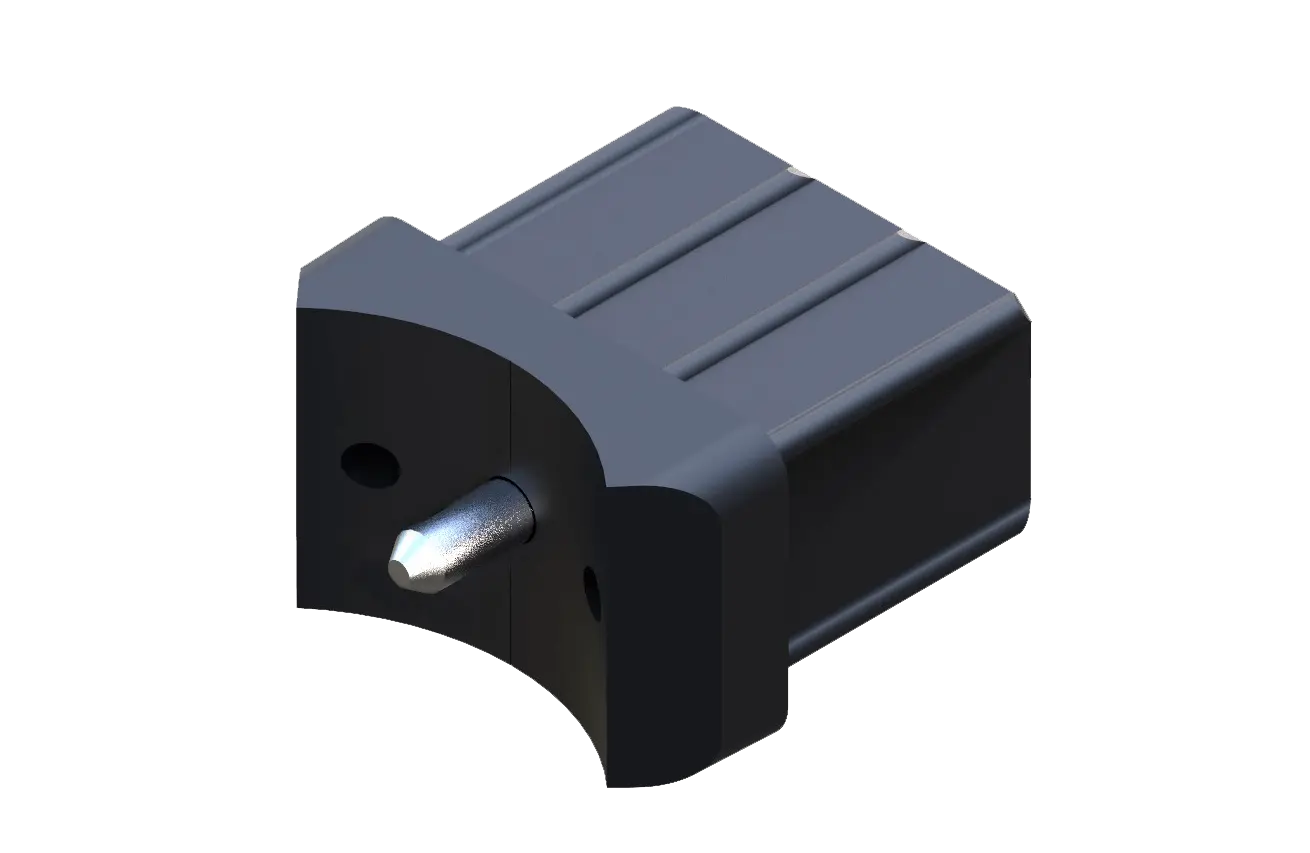

Fixed using a fixing boss to facilitate a P-R 50 x 30 panel replacement.
