FOLDED MESH AND DOUBLE WIRE ENCLOSURE — Anthracite Grey
RIGID MESH ENCLOSURES

FOLDED MESH AND DOUBLE WIRE ENCLOSURE

Anthracite Grey

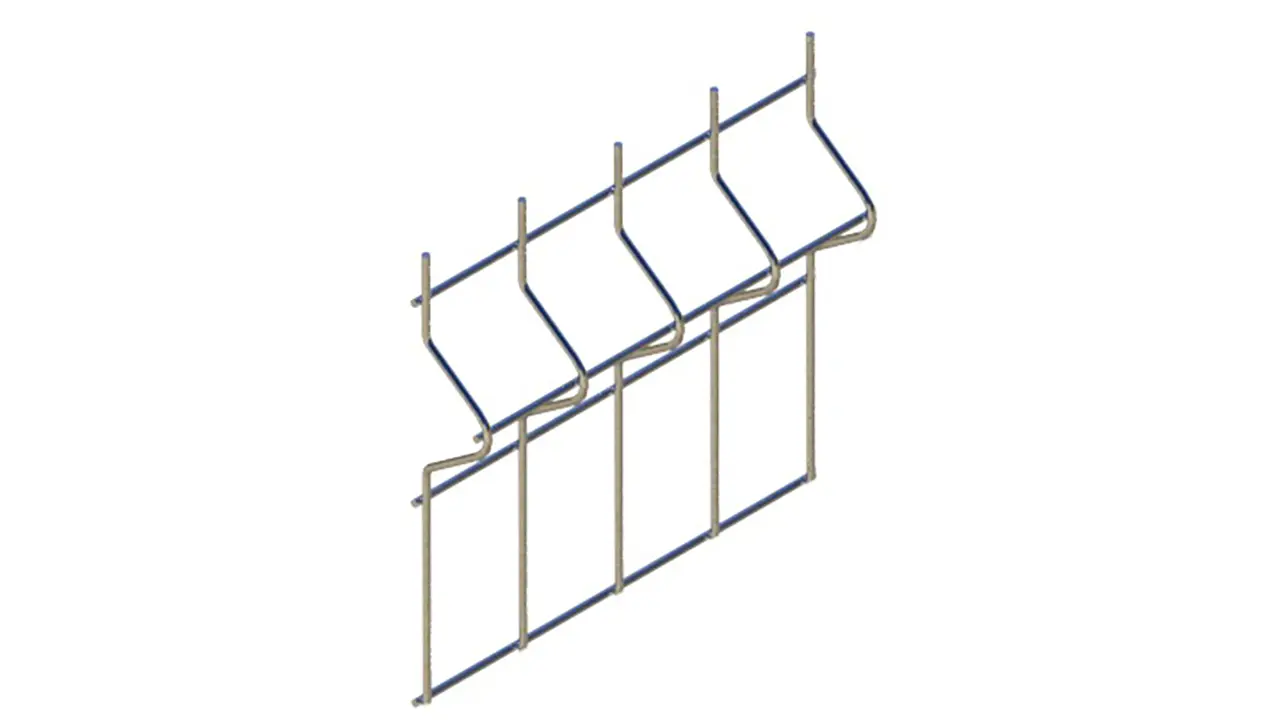

Folded mesh enclosure

Folded mesh panel. The enclosures are made of 4 mm, 5 mm, or our hybrid 4V - 5H model (4 mm vertically and 5 mm horizontally) folded mesh, with posts for recessing or with plate and an endless amount of assembly accessories for any type of solution.

Description

Fences with rigid folded mesh panels are the most commonly used by professionals and individuals to enclose land, gardens or to secure a house. The folded mesh is made of galvanised steel wires. This folded panel enclosure combines aesthetics and solidity, as well as being easy to assemble. Indusmetal Torres offers different sizes and formats of panels or folded mesh. The different folded panel formats are detailed below.

Folded mesh enclosure

Reference Dimensions Height Packaging
1601064 Dimensions 2.500 x 1.025 x 4 mm with 2 folds Height 1.000 mm Packaging
GALV
1601065 Dimensions 2.500 x 1.525 x 4 mm with 3 folds Height 1.500 mm Packaging
GALV
1601066 Dimensions 2.500 x 2.025 x 4 mm with 4 folds Height 2.000 mm Packaging
GALV

Reference Dimensions Height Packaging
1005034 Dimensions 2.500 x 625 x 5 mm with 2 folds Height 600 mm Packaging
GALV
1601070 Dimensions 2.500 x 825 x 5 mm with 2 folds Height 800 mm Packaging
GALV
1601071 Dimensions 2.500 x 1.025 x 5 mm with 2 folds Height 1.000 mm Packaging
GALV
1601072 Dimensions 2.500 x 1.225 x 5 mm with 2 folds Height 1.200 mm Packaging
GALV
1601073 Dimensions 2.500 x 1.525 x 5 mm with 3 folds Height 1.500 mm Packaging
GALV
1601074 Dimensions 2.500 x 1.725 x 5 mm with 3 folds Height 1.700 mm Packaging
GALV
1005036 Dimensions 2.500 x 1.925 x 5 mm with 3 folds Height 1.900 mm Packaging
GALV
1601075 Dimensions 2.500 x 2.025 x 5 mm with 4 folds Height 2.000 mm Packaging
GALV
1005333 Dimensions 2.400 x 2.525 x 5 mm with 5 folds Height 2.500 mm Packaging
GALV
1005032 Dimensions 2.400 x 3.025 x 5 mm with 6 folds Height 3.000 mm Packaging
GALV
1005033 Dimensions 2.400 x 4.025 x 5 mm with 8 folds Height 4.000 mm Packaging
GALV

Reference Dimensions Height Packaging
1005097 Dimensions 2.500 x 625 x 4V + 5H mm with 2 folds Height 600 mm Packaging
GALV
1005098 Dimensions 2.500 x 825 x 4V + 5H mm with 2 folds Height 800 mm Packaging
GALV
1601066 Dimensions 2.500 x 1.025 x 4V + 5H mm with 2 folds Height 1.000 mm Packaging
GALV
1005100 Dimensions 2.500 x 1.225 x 4V + 5H mm with 2 folds Height 1.200 mm Packaging
GALV
1005101 Dimensions 2.500 x 1.525 x 4V + 5H mm with 3 folds Height 1.500 mm Packaging
GALV
1005102 Dimensions 2.500 x 1.725 x 4V + 5H mm with 3 folds Height 1.700 mm Packaging
GALV
FC.MP.10.4525.0192 Dimensions 2.500 x 1.925 x 4V + 5H mm with 3 folds Height 1.900 mm Packaging
GALV

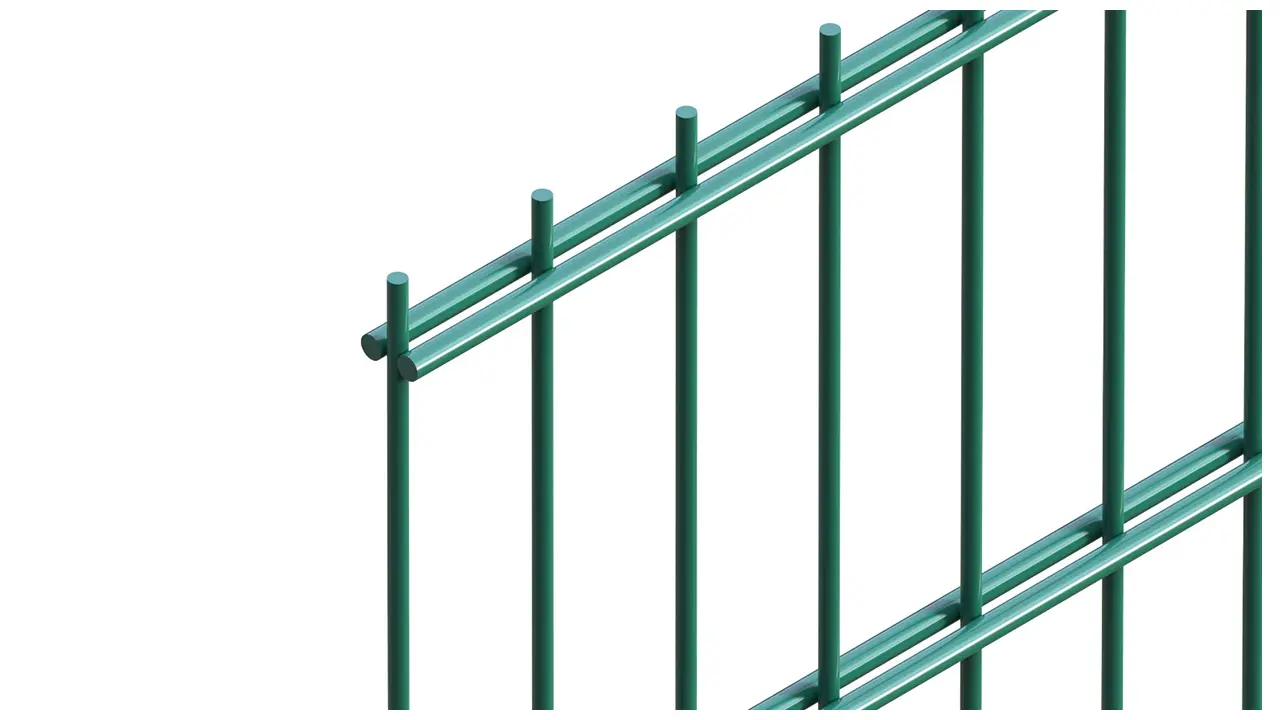

D.H. double wire mesh

Double wire electro-welded mesh panel. Flat electro-welded mesh manufactured with 2 horizontal reinforcement wires that provide rigidity and design. DH panels are a differential alternative to folded mesh enclosures, maintaining their diversity.

Description

Enclosure made of flat electro-welded mesh panels manufactured with double horizontal galvanised wire and a vertical wire. Two product ranges depending on the thickness of the wire. Panel D.H. 6/5/6 manufactured with 6 mm horizontal wire and 5 mm vertical wire. D.H. 8/6/8 panel with 8 mm horizontal wire and 6 mm vertical wire. All panels are manufactured in 2500 mm wide format and in variable heights, with a mesh opening of 200x55 mm between axes, and 30 mm defensive spikes.

D.H. double wire mesh

Reference Description Height Packaging
1601093 Description 6/5/6 de 2500 x 1030 Height 1.000 mm Packaging
GALV
1601094 Description 6/5/6 de 2500 x 1230 Height 1.200 mm Packaging
GALV
1601095 Description 6/5/6 de 2500 x 1430 Height 1.500 mm Packaging
GALV
1601096 Description 6/5/6 de 2500 x 1630 Height 1.600 mm Packaging
GALV
1601097 Description 6/5/6 de 2500 x 1830 Height 1.800 mm Packaging
GALV
1601098 Description 6/5/6 de 2500 x 2030 Height 2.000 mm Packaging
GALV
1601099 Description 6/5/6 de 2500 x 2430 Height 2.400 mm Packaging
GALV

Reference Description Height Packaging
FC.MP.G6.0882.5103 Description 8/6/8 de 2500 x 1030 Height 1.000 mm Packaging
GALV
FC.MP.G6.0882.5123 Description 8/6/8 de 2500 x 1230 Height 1.200 mm Packaging
GALV
1601103 Description 8/6/8 de 2500 x 1430 Height 1.500 mm Packaging
GALV
FC.MP.G6.0882.5163 Description 8/6/8 de 2500 x 1630 Height 1.600 mm Packaging
GALV
1601105 Description 8/6/8 de 2500 x 1830 Height 1.800 mm Packaging
GALV
1601106 Description 8/6/8 de 2500 x 2030 Height 2.000 mm Packaging
GALV
FC.MP.G6.0882.5243 Description 8/6/8 de 2500 x 2430 Height 2.400 mm Packaging
GALV

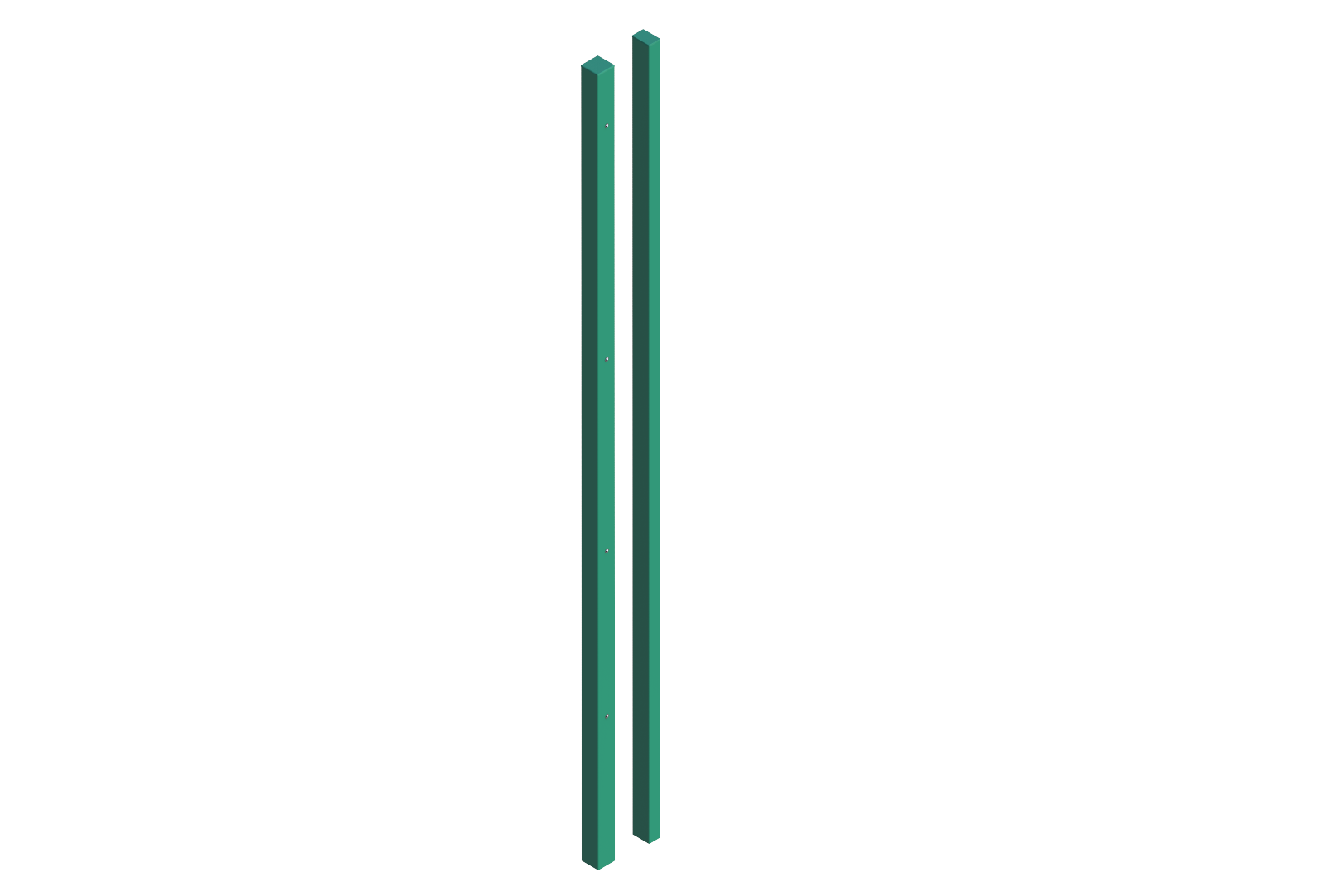

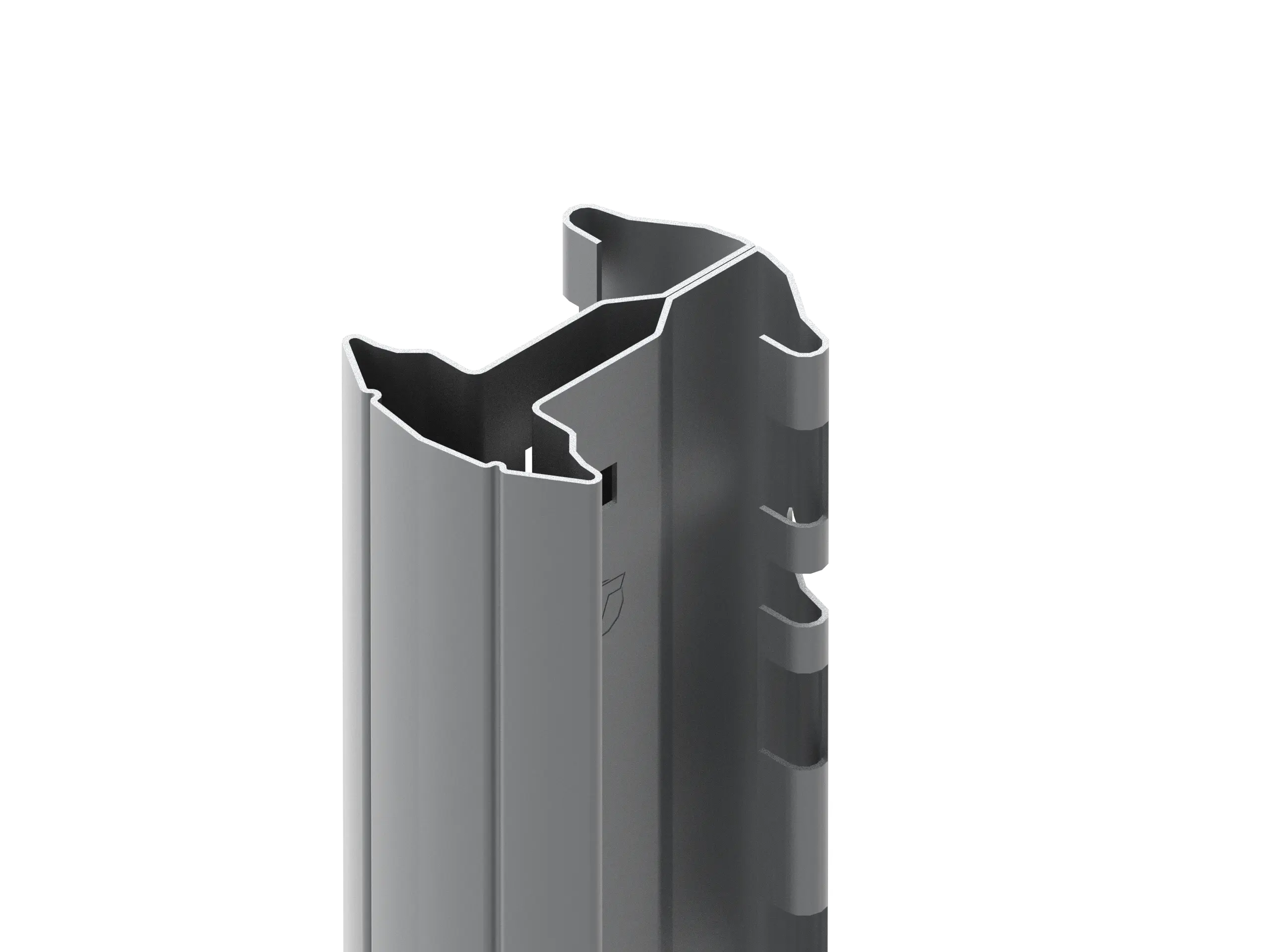

Posts for rigid mesh enclosure

Posts for mounting folded mesh enclosures or any rigid mesh. Different types of posts with the possibility of installation for recessing or for screwing on a concrete base. We also offer our NOUMAPLEX post with a fixation system welded by resistance to the post in a diagonal arrangement.

Description

Non-machined 60 x 40 x 1.5 mm post for fixing with self-drilling screw. Machined 60 x 60 x 1.5 mm post for fixing with metric screw. Manufactured with claw hook for recessing or with welded plate for screwing.

Noumaplex post 50 x 50 x 1.5 mm designed to facilitate fencing assembly. The fixing system is welded by resistance to the post in a diagonal arrangement. The Noumaplex wedge is inserted and then the fixing bracket is tapped into a groove so that the wedge is fixed and cannot be removed.

Posts for rigid mesh enclosure

Reference Dimensions Mesh height Packaging
1003994 Dimensions 60 x 40 x 1.100 mm Mesh height 800 mm Packaging
GALV
1003995 Dimensions 60 x 40 x 1.300 mm Mesh height 1.000 mm Packaging
GALV
1003996 Dimensions 60 x 40 x 1.500 mm Mesh height 1.200 mm Packaging
GALV
1003997 Dimensions 60 x 40 x 1.850 mm Mesh height 1.500 mm Packaging
GALV
1003998 Dimensions 60 x 40 x 2.100 mm Mesh height 1.700 mm Packaging
GALV
1003999 Dimensions 60 x 40 x 2.400 mm Mesh height 2.000 mm Packaging
GALV
1004000 Dimensions 60 x 40 x 3.000 mm Mesh height 2.500 mm Packaging
GALV
1004001 Dimensions 60 x 40 x 3.450 mm Mesh height 3.000 mm Packaging
GALV
1003953 Dimensions 60 x 60 x 1.100 mm Mesh height 800 mm Packaging
GALV
1003954 Dimensions 60 x 60 x 1.300 mm Mesh height 1.000 mm Packaging
GALV
1003955 Dimensions 60 x 60 x 1.500 mm Mesh height 1.200 mm Packaging
GALV
1003956 Dimensions 60 x 60 x 1.850 mm Mesh height 1.500 mm Packaging
GALV
1003957 Dimensions 60 x 60 x 2.100 mm Mesh height 1.700 mm Packaging
GALV
1003958 Dimensions 60 x 60 x 2.400 mm Mesh height 2.000 mm Packaging
GALV
1003959 Dimensions 60 x 60 x 3.000 mm Mesh height 2.500 mm Packaging
GALV
1003960 Dimensions 60 x 60 x 3.450 mm Mesh height 3.000 mm Packaging
GALV
1003991 Dimensions 80 x 60 x 4.450 mm Mesh height 4.000 mm Packaging
GALV
1003962 Dimensions 60 x 60 x 1.100 mm corner Mesh height 800 mm Packaging
GALV
1003963 Dimensions 60 x 60 x 1.300 mm corner Mesh height 1.000 mm Packaging
GALV
1003964 Dimensions 60 x 60 x 1.500 mm corner Mesh height 1.200 mm Packaging
GALV
1003965 Dimensions 60 x 60 x 1.850 mm corner Mesh height 1.500 mm Packaging
GALV
1003966 Dimensions 60 x 60 x 2.100 mm corner Mesh height 1.700 mm Packaging
GALV
1003967 Dimensions 60 x 60 x 2.400 mm corner Mesh height 2.000 mm Packaging
GALV
1003968 Dimensions 60 x 60 x 3.000 mm corner Mesh height 2.500 mm Packaging
GALV
1003969 Dimensions 60 x 60 x 3.450 mm corner Mesh height 3.000 mm Packaging
GALV

Reference Dimensions Mesh height Packaging
1004003 Dimensions 60 x 40 x 878 mm Mesh height 800 mm Packaging
GALV
1004004 Dimensions 60 x 40 x 1.078 mm Mesh height 1.000 mm Packaging
GALV
1004005 Dimensions 60 x 40 x 1.278 mm Mesh height 1.200 mm Packaging
GALV
1004006 Dimensions 60 x 40 x 1.578 mm Mesh height 1.500 mm Packaging
GALV
1004007 Dimensions 60 x 40 x 1.778 mm Mesh height 1.700 mm Packaging
GALV
1004008 Dimensions 60 x 40 x 2.078 mm Mesh height 2.000 mm Packaging
GALV
1004009 Dimensions 60 x 40 x 2.578 mm Mesh height 2.500 mm Packaging
GALV
1004010 Dimensions 60 x 40 x 3.078 mm Mesh height 3.000 mm Packaging
GALV
1003971 Dimensions 60 x 60 x 878 mm Mesh height 800 mm Packaging
GALV
1003972 Dimensions 60 x 60 x 1.078 mm Mesh height 1.000 mm Packaging
GALV
1003973 Dimensions 60 x 60 x 1.278 mm Mesh height 1.200 mm Packaging
GALV
1003974 Dimensions 60 x 60 x 1.578 mm Mesh height 1.500 mm Packaging
GALV
FC.PR.10.1051.5175 Dimensions 60 x 60 x 1.778 mm Mesh height 1.700 mm Packaging
GALV
1003976 Dimensions 60 x 60 x 2.078 mm Mesh height 2.000 mm Packaging
GALV
1003977 Dimensions 60 x 60 x 2.578 mm Mesh height 2.500 mm Packaging
GALV
1003978 Dimensions 60 x 60 x 3.078 mm Mesh height 3.000 mm Packaging
GALV
FC.PR.10.1151.5400 Dimensions 80 x 60 x 4.078 mm Mesh height 4.000 mm Packaging
GALV
1003979 Dimensions 60 x 60 x 878 mm corner Mesh height 800 mm Packaging
GALV
1003980 Dimensions 60 x 60 x 1.078 mm corner Mesh height 1.000 mm Packaging
GALV
1003981 Dimensions 60 x 60 x 1.278 mm corner Mesh height 1.200 mm Packaging
GALV
1003982 Dimensions 60 x 60 x 1.578 mm corner Mesh height 1.500 mm Packaging
GALV
1003983 Dimensions 60 x 60 x 1.778 mm corner Mesh height 1.700 mm Packaging
GALV
1003984 Dimensions 60 x 60 x 2.078 mm corner Mesh height 2.000 mm Packaging
GALV
1003985 Dimensions 60 x 60 x 2.578 mm corner Mesh height 2.500 mm Packaging
GALV
1003986 Dimensions 60 x 60 x 3.078 mm corner Mesh height 3.000 mm Packaging
GALV

Reference Dimensions Mesh height Packaging
1003526 Dimensions Post ITN de 50 x 50 x 0900 mm Mesh height 600 mm Packaging
6005
1003527 Dimensions Post ITN de 50 x 50 x 1100 mm Mesh height 800 mm Packaging
6005
1003528 Dimensions Post ITN de 50 x 50 x 1300 mm Mesh height 1000 mm Packaging
6005
FC.PR.65.4050.6120 Dimensions Post ITN de 50 x 50 x 1500 mm Mesh height 1200 mm Packaging
6005
1003529 Dimensions Post ITN de 50 x 50 x 1850 mm Mesh height 1500 mm Packaging
6005
1003530 Dimensions Post ITN de 50 x 50 x 2400 mm Mesh height 2000 mm Packaging
6005

Accessories for rigid mesh

A wide selection of accessories to ensure faster assembly. Bracket clamps with and without screws, base plates and bayonets.

Description

Different models of bracket clamps and fixations for assembling the electro-welded panels with the posts.

  • Different types of bracket clamps for 40 or 60 mm posts.
  • Base plate 60 x 60 or 60 x 40 mm. A 118 x 118 x 6 mm base plate with 2 mm folded sheet metal socket is also possible. The entire assembly is electro-zinc coated, where all welds and flanges are completely protected against corrosion.
  • Bayonets for 60 x 60 and 60 x 40 mm posts. Bayonets for barbed wire installation are also an option. Single and double bayonet available. Manufactured with 4 mm sheet metal for the superior part and 2 mm for the part that is recessed in the inside of the post. The entire assembly is then electro-zinc coated, where all welds and flanges are completely protected against corrosion.
Accessories for rigid mesh

Reference Description Post Packaging

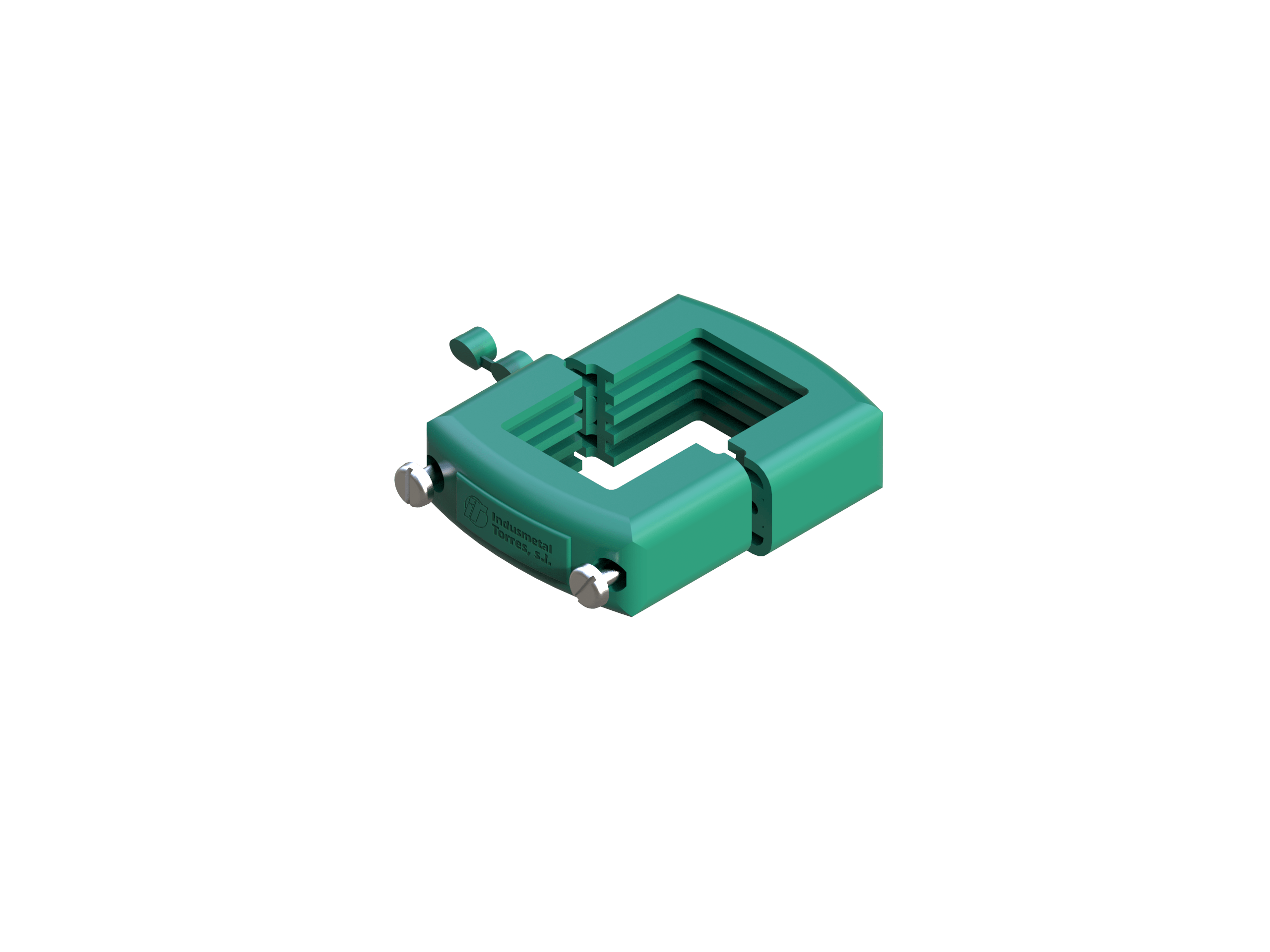

1005938 Description I.T.P.E clamp. Post 60 x 40 mm Packaging
BLACK
1601661 Description Ultrafix clamp Post 60 x 40 mm Packaging
BLACK
1005964 Description Clamping screw, self-tapping and tamper-proof cap Post 60 x 40 mm Packaging
GALV
1005969 Description Model C clamping bracket Post 60 x 40 mm Packaging
Zinc
1005970 Description Model U clamping bracket Post 60 x 40 mm Packaging
GALV

Reference Description Post Packaging
1005962 Description Clamping bracket with metric screw and tamper-proof cap Post 60 x 60 mm Packaging
GALV
1005786 Description Nylon screw Post 60 x 60 mm Packaging
6005
1005966 Description Model S clamping bracket Post 60 x 60 mm Packaging
GALV
1005968 Description Model C clamping bracket Post 60 x 60 mm Packaging
Zinc
1005971 Description Model U clamping bracket Post 60 x 60 mm Packaging
GALV
1005998 Description ITcrem rack support Post ITcrem ø 48 y 60 mm Packaging
GALV

Reference Description
2003826 Description 160 x 160 x 8 mm blind plate for 80 x 60 mm post
2003837 Description 118 x 118 x 6 mm blind plate
2003821 Description 118 x 118 x 6 mm for 60 x 40 mm post
2003818 Description 118 x 118 x 6 mm for 60 x 60 mm post

Reference Description Packaging
1005857 Description 118 x 118 x 6 mm Packaging
GALV

Reference Description Packaging
1005858 Description 118 x 118 x 6 mm Packaging
GALV

Reference Description Packaging
1005513 Description 50 x 50 mm Packaging
ALUM

Reference Description Packaging
1005864 Description For 60 x 40 mm post Packaging
Zinc
1005866 Description For 60 x 60 mm post Packaging
Zinc

Reference Description Packaging
1005867 Description For 60 x 60 mm post Packaging
Zinc

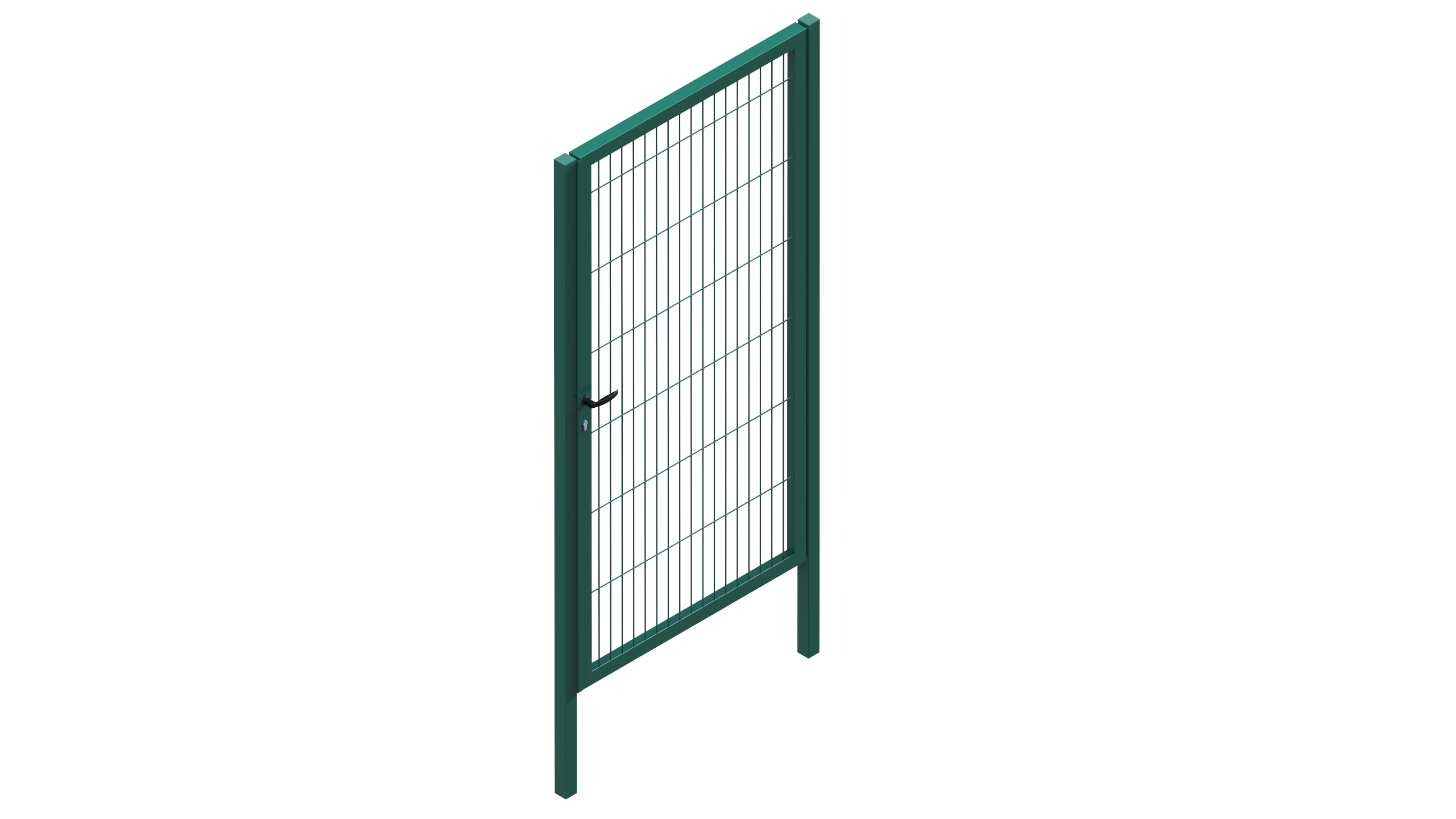

IT Noumaplex

Lightweight single leaf folding mesh gate, ideal for any type of fencing. Model designed to combine in perfect harmony with the folded mesh panels.

Description

Gate made of two 50 x 50 x 1.5 mm upright posts welded on a folded mesh with 5 mm wires. 50 x 50 x 1.5 mm pillars for recessing or with 118 x 118 x 6 mm plate.

IT Noumaplex

Reference Nº leaves Dimensions Packaging
1001766 Nº leaves 1-H Dimensions 0,77 x 1,02 m Packaging
GALV
1001767 Nº leaves 1-H Dimensions 0,77 x 1,52 m Packaging
GALV
1001769 Nº leaves 1-H Dimensions 0,77 x 2,02 m Packaging
GALV
1001754 Nº leaves 1-H Dimensions 1,00 x 1,02 m Packaging
GALV
1001758 Nº leaves 1-H Dimensions 1,00 x 1,52 m Packaging
GALV
1001760 Nº leaves 1-H Dimensions 1,00 x 2,02 m Packaging
GALV
FP.MP.10.1610.1210 Nº leaves 1-H Dimensions 1,22 x 1,02 m Packaging
GALV
1001762 Nº leaves 1-H Dimensions 1,22 x 1,52 m Packaging
GALV
1001765 Nº leaves 1-H Dimensions 1,22 x 2,02 m Packaging
GALV

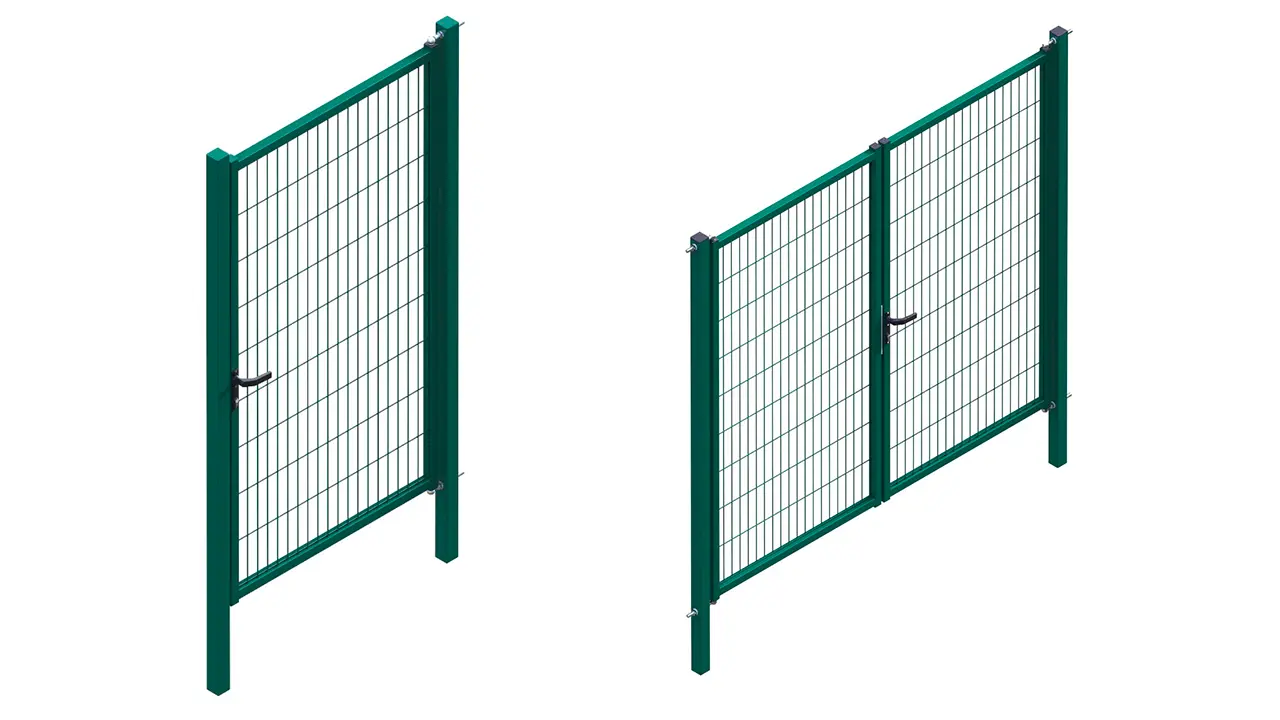

IT 200 gate

Electro-welded mesh gate. IT 200 single and double leaf swing gate, ideal for all types of fencing. An aesthetically pleasing gate and easy to install thanks to LOCINOX accessories. Highly versatile for any type of project.

Description

Gate made of galvanised tube, with vertical uprights for 40 x 40 x 1.5 mm, horizontal crossbeams for 40 x 30 x 1.5 mm and 200 x 50 x 5 mm electro-welded mesh. Pillars of 60 x 60 mm, 80 x 80 mm or 100 x 100 mm depending on dimensions, for recessing or with plate. LOCINOX lock, striker and hinges.

IT 200 gate

Reference Nº leaves Dimensions Packaging
1002419 Nº leaves 1-H Dimensions 1,00 x 1,00 m Packaging
GALV
FP.FR.10.2110.1012 Nº leaves 1-H Dimensions 1,00 x 1,20 m Packaging
GALV
1002420 Nº leaves 1-H Dimensions 1,00 x 1,50 m Packaging
GALV
FP.FR.10.2110.1017 Nº leaves 1-H Dimensions 1,00 x 1,75 m Packaging
GALV
1002422 Nº leaves 1-H Dimensions 1,00 x 2,00 m Packaging
GALV
1002423 Nº leaves 1-H Dimensions 1,50 x 1,00 m Packaging
GALV
1002424 Nº leaves 1-H Dimensions 1,50 x 1,50 m Packaging
GALV
1002425 Nº leaves 1-H Dimensions 1,50 x 2,00 m Packaging
GALV
1002426 Nº leaves 2-H Dimensions 2,00 x 1,50 m Packaging
GALV
1002427 Nº leaves 2-H Dimensions 2,00 x 2,00 m Packaging
GALV
1002428 Nº leaves 2-H Dimensions 3,00 x 1,50 m Packaging
GALV
1002429 Nº leaves 2-H Dimensions 3,00 x 2,00 m Packaging
GALV
1002430 Nº leaves 2-H Dimensions 4,00 x 1,50 m Packaging
GALV
1002431 Nº leaves 2-H Dimensions 4,00 x 2,00 m Packaging
GALV
1002432 Nº leaves 2-H Dimensions 5,00 x 1,50 m Packaging
GALV
1002433 Nº leaves 2-H Dimensions 5,00 x 2,00 m Packaging
GALV

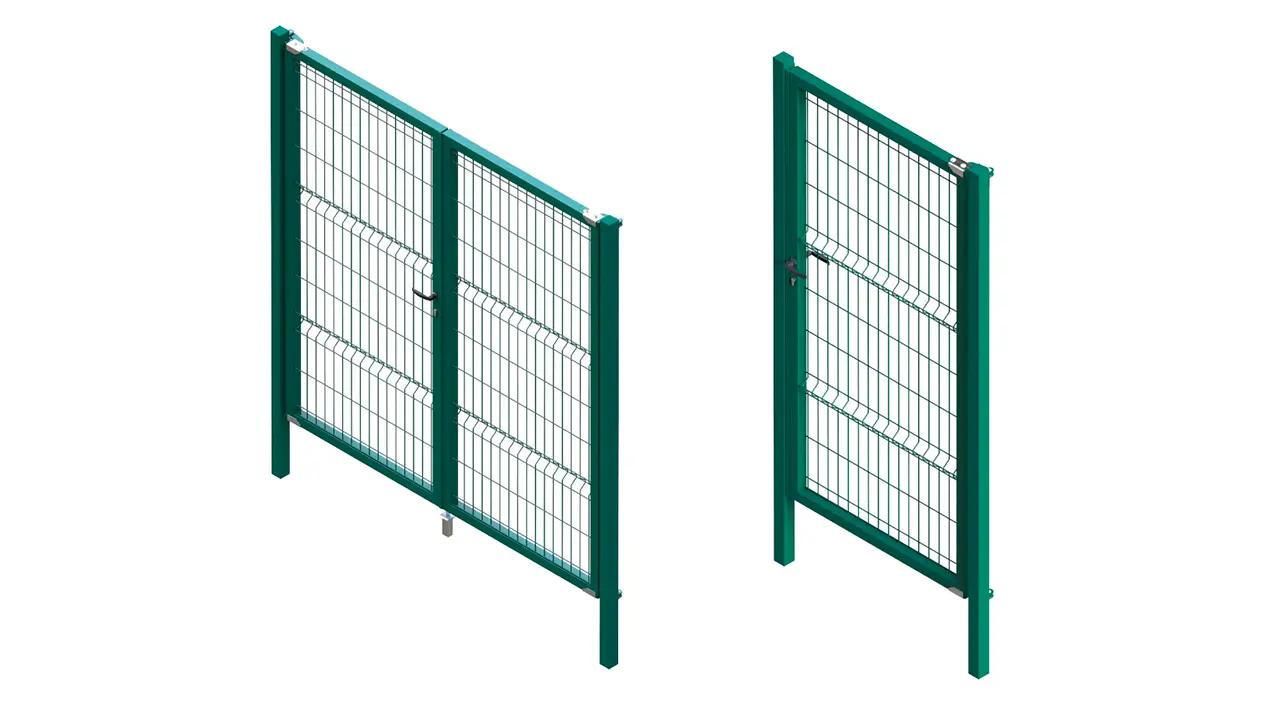

MP50 folding and sliding gates

MP50 single and double leaf folding and sliding gates. The MP50 folding and sliding gateswith folded mesh, designed and manufactured exclusively by Indusmetal Torres, are the best option for those who are looking for a high quality and functional gate.

Description

MP50 folding gates are manufactured with square galvanised tube pillars of specific dimensions and thickness according to the size of the gate. Leaf manufactured with 50 x 50 x 1.5 mm galvanised tube and folded mesh of 200 x 50 x 5 mm welded in the inside of the tube. Hinge system designed by IT that allows adjustment in all four directions and 180º opening.

The MP50 sliding gates are manufactured with a 50 x 50 x 1.5 mm galvanised tube frame for uprights and upper crossbeam, welded to a 100 x 50 x 2 mm base tube. Exclusive bearing system for better sliding. Unique lock developed by IT in stainless steel.

MP50 folding and sliding gates

Reference Nº leaves Dimensions Packaging
FP.MP.10.1110.1010 Nº leaves 1 Dimensions 1,0 x 1,0 m Packaging
GALV
FP.MP.10.1110.1012 Nº leaves 1 Dimensions 1,0 x 1,2 m Packaging
GALV
FP.MP.10.1110.1015 Nº leaves 1 Dimensions 1,0 x 1,5 m Packaging
GALV
FP.MP.10.1110.1020 Nº leaves 1 Dimensions 1,0 x 2,0 m Packaging
GALV
FP.MP.10.2110.2010 Nº leaves 2 Dimensions 2,0 x 1,0 m Packaging
GALV
FP.MP.10.2110.2012 Nº leaves 2 Dimensions 2,0 x 1,2 m Packaging
GALV
FP.MP.10.2110.2015 Nº leaves 2 Dimensions 2,0 x 1,5 m Packaging
GALV
FP.MP.10.2110.2020 Nº leaves 2 Dimensions 2,0 x 2,0 m Packaging
GALV
FP.MP.10.2110.3015 Nº leaves 2 Dimensions 3,0 x 1,5 m Packaging
GALV
FP.MP.10.2110.3020 Nº leaves 2 Dimensions 3,0 x 2,0 m Packaging
GALV
FP.MP.10.2110.4015 Nº leaves 2 Dimensions 4,0 x 1,5 m Packaging
GALV
FP.MP.10.2110.4020 Nº leaves 2 Dimensions 4,0 x 2,0 m Packaging
GALV
FP.MP.10.2110.5015 Nº leaves 2 Dimensions 5,0 x 1,5 m Packaging
GALV
FP.MP.10.2110.5020 Nº leaves 2 Dimensions 5,0 x 2,0 m Packaging
GALV
FP.MP.10.2110.6020 Nº leaves 2 Dimensions 6,0 x 2,0 m Packaging
GALV

Reference Dimensions Packaging
FP.PC.10.3080.3015 Dimensions 3,0 x 1,5 m Packaging
GALV
FP.PC.10.3080.3020 Dimensions 3,0 x 2,0 m Packaging
GALV
FP.PC.10.3080.4015 Dimensions 4,0 x 1,5 m Packaging
GALV
FP.PC.10.3080.4020 Dimensions 4,0 x 2,0 m Packaging
GALV
FP.PC.10.3080.5015 Dimensions 5,0 x 1,5 m Packaging
GALV
FP.PC.10.3080.5020 Dimensions 5,0 x 2,0 m Packaging
GALV
FP.PC.10.3080.6020 Dimensions 6,0 x 2,0 m Packaging
GALV

Reinforcement mesh gates

Single and double leaf swing electro-welded mesh gate suitable for all types of fencing.

Description

Gate manufactured with galvanised PDS 28 profiles and 300 x 50 x 5 mm flat electro-welded mesh. Pillars from 50 x 50 to 100 x 100 mm depending on the gate size. Wing hinge with 180º opening, lock and handle.

Reinforcement mesh gates

Reference Nº leaves Dimensions Packaging
1001978 Nº leaves 1-H Dimensions 0,98 x 0,98 m Packaging
GALV
1001979 Nº leaves 1-H Dimensions 0,98 x 1,49 m Packaging
GALV
1001981 Nº leaves 1-H Dimensions 0,98 x 1,99 m Packaging
GALV
1001982 Nº leaves 1-H Dimensions 1,48 x 0,98 m Packaging
GALV
1001983 Nº leaves 1-H Dimensions 1,48 x 1,49 m Packaging
GALV
1001984 Nº leaves 1-H Dimensions 1,48 x 1,99 m Packaging
GALV
1001985 Nº leaves 1-H Dimensions 1,98 x 0,98 m Packaging
GALV
1001986 Nº leaves 1-H Dimensions 1,98 x 1,49 m Packaging
GALV
1001987 Nº leaves 1-H Dimensions 1,98 x 1,99 m Packaging
GALV
1001989 Nº leaves 2-H Dimensions 2,97 x 1,49 m Packaging
GALV
1001990 Nº leaves 2-H Dimensions 2,97 x 1,99 m Packaging
GALV
1001991 Nº leaves 2-H Dimensions 3,97 x 1,49 m Packaging
GALV
1001992 Nº leaves 2-H Dimensions 3,97 x 1,99 m Packaging
GALV

ITH Post

H-shaped profiled post with dimensions of 80 x 60 mm. Does not require any type of fixing for the mesh. Highly valued for its easy installation and wide range of accessories.

Description

Profiled post with a cross-section of 80 x 60 mm and a 1 mm thick steel sheet. The steel quality used is DX51D + Z275, in accordance with UNE EN 10305-3, providing 275 g/m² of zinc coating. Breaking strength at one meter above the ground: 270 kg. Can be used with flat welded mesh, folded mesh, or double wire mesh.

Several types of accessories are also available for installation, tailored to customer needs: top plastic cap, inner bayonet, outer bayonet, double bayonet, and embedded anchor plate for concrete.

ITH Post

Reference Height (mm) Dimensions Finish
FC.PR.10.5050.7070 Height (mm) 0700 mm Dimensions 80x60x0700 mm Finish
GALV
FC.PR.10.5050.7090 Height (mm) 0900 mm Dimensions 80x60x0900 mm Finish
GALV
FC.PR.10.5050.7110 Height (mm) 1100 mm Dimensions 80x60x1100 mm Finish
GALV
FC.PR.10.5050.7130 Height (mm) 1300 mm Dimensions 80x60x1300 mm Finish
GALV
FC.PR.10.5050.7140 Height (mm) 1400 mm Dimensions 80x60x1400 mm Finish
GALV
FC.PR.10.5050.7160 Height (mm) 1600 mm Dimensions 80x60x1600 mm Finish
GALV
FC.PR.10.5050.7170 Height (mm) 1700 mm Dimensions 80x60x1700 mm Finish
GALV
FC.PR.10.5050.7180 Height (mm) 1800 mm Dimensions 80x60x1800 mm Finish
GALV
FC.PR.10.5050.7200 Height (mm) 2000 mm Dimensions 80x60x2000 mm Finish
GALV
FC.PR.47.5050.7220 Height (mm) 2200 mm Dimensions 80x60x2200 mm Finish
7016
FC.PR.10.5050.7230 Height (mm) 2300 mm Dimensions 80x60x2300 mm Finish
GALV
FC.PR.10.5050.7240 Height (mm) 2400 mm Dimensions 80x60x2400 mm Finish
GALV
FC.PR.10.5050.7250 Height (mm) 2500 mm Dimensions 80x60x2500 mm Finish
GALV
FC.PR.10.5050.7260 Height (mm) 2600 mm Dimensions 80x60x2600 mm Finish
GALV
FC.PR.10.5050.7270 Height (mm) 2700 mm Dimensions 80x60x2700 mm Finish
GALV
FC.PR.47.5050.7280 Height (mm) 2800 mm Dimensions 80x60x2800 mm Finish
7016
FC.PR.10.5050.7290 Height (mm) 2900 mm Dimensions 80x60x2900 mm Finish
GALV
FC.PR.10.5050.7300 Height (mm) 3000 mm Dimensions 80x60x3000 mm Finish
GALV
FC.PR.10.5050.7310 Height (mm) 3100 mm Dimensions 80x60x3100 mm Finish
GALV

Reference Color
FC.AP.47.4028.6512
7016
FC.AP.C0.4028.6511
C0 (Sin pasivar)

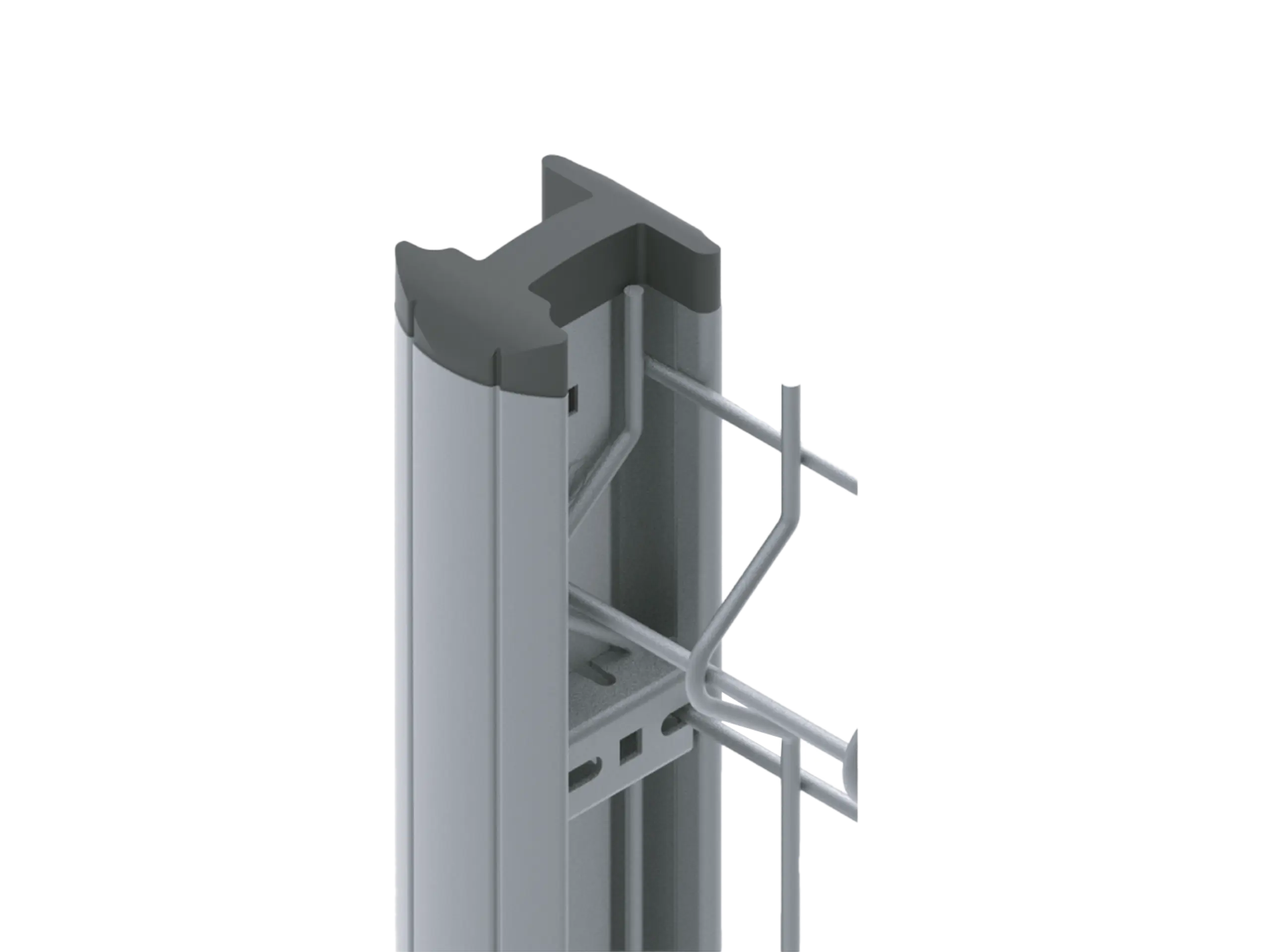

ITH CLIP Post

The ITH CLIP post is designed to provide quick installation, making it ideal for residential projects. It features a versatile system adaptable to all types of welded mesh panels, with a CLIP fastening system for secure attachment.

Description

Profiled post with a cross-section of 80 x 60 mm and 1 mm thick steel sheet. Made of DX51D + Z275 grade steel according to UNE EN 10305-3, providing 275 g/m² of zinc coating on both sides. It offers a breaking resistance of 270 kg at one meter from the ground. Can be used with flat welded mesh panels, folded mesh, or double wire mesh.

Several types of accessories are also available for installation, tailored to the customer’s needs: top plastic cap, inner bayonet, outer or double bayonet, and an embedded base plate for concrete anchoring.

ITH CLIP Post

Reference Height (mm) Dimensions Finish
FC.PR.10.5050.6200 Height (mm) 2000 mm Dimensions 80x60x2000 mm Finish
GALV
FC.PR.10.5050.6240 Height (mm) 2400 mm Dimensions 80x60x2400 mm Finish
GALV
FC.PR.10.5050.6250 Height (mm) 2500 mm Dimensions 80x60x2500 mm Finish
GALV
