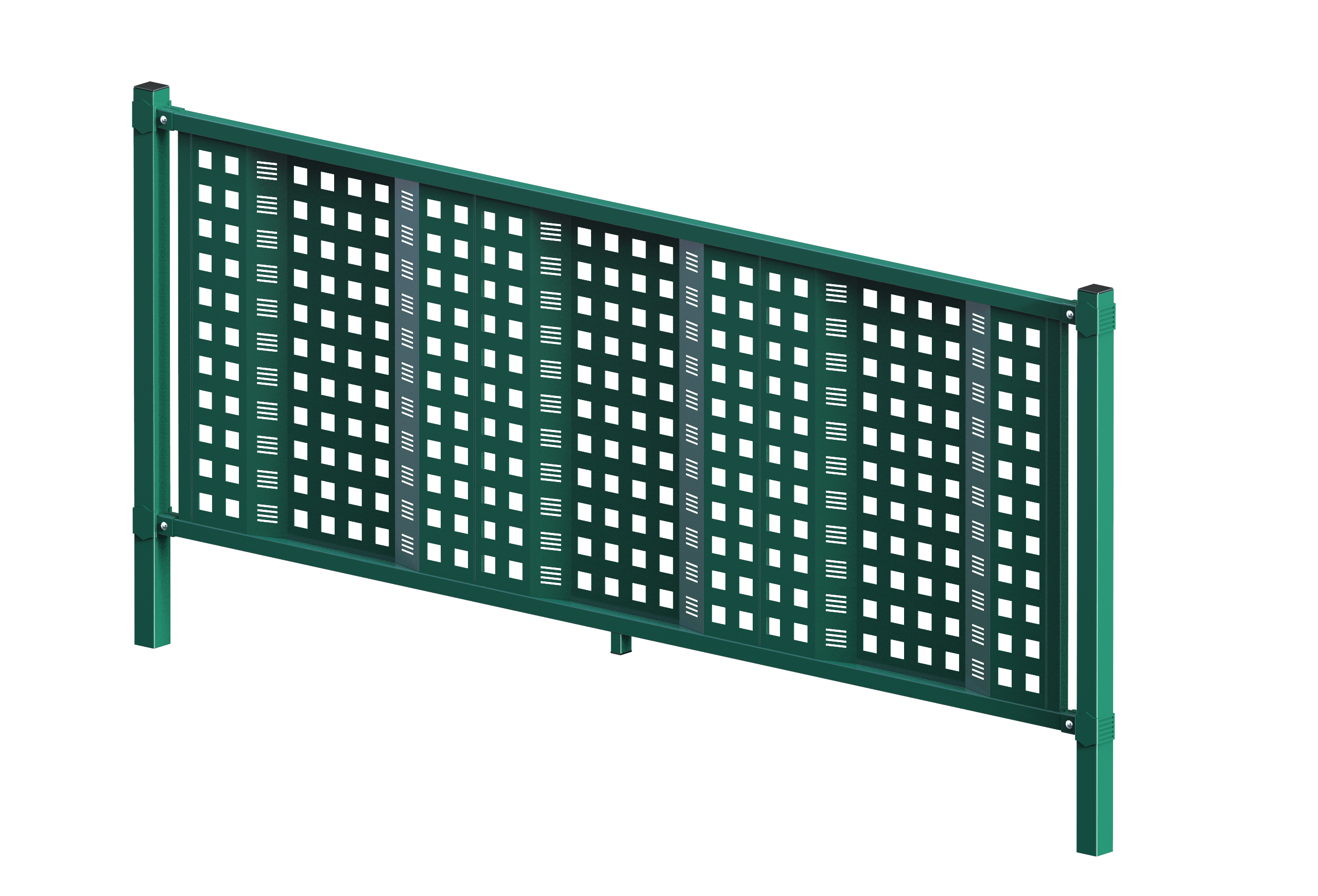

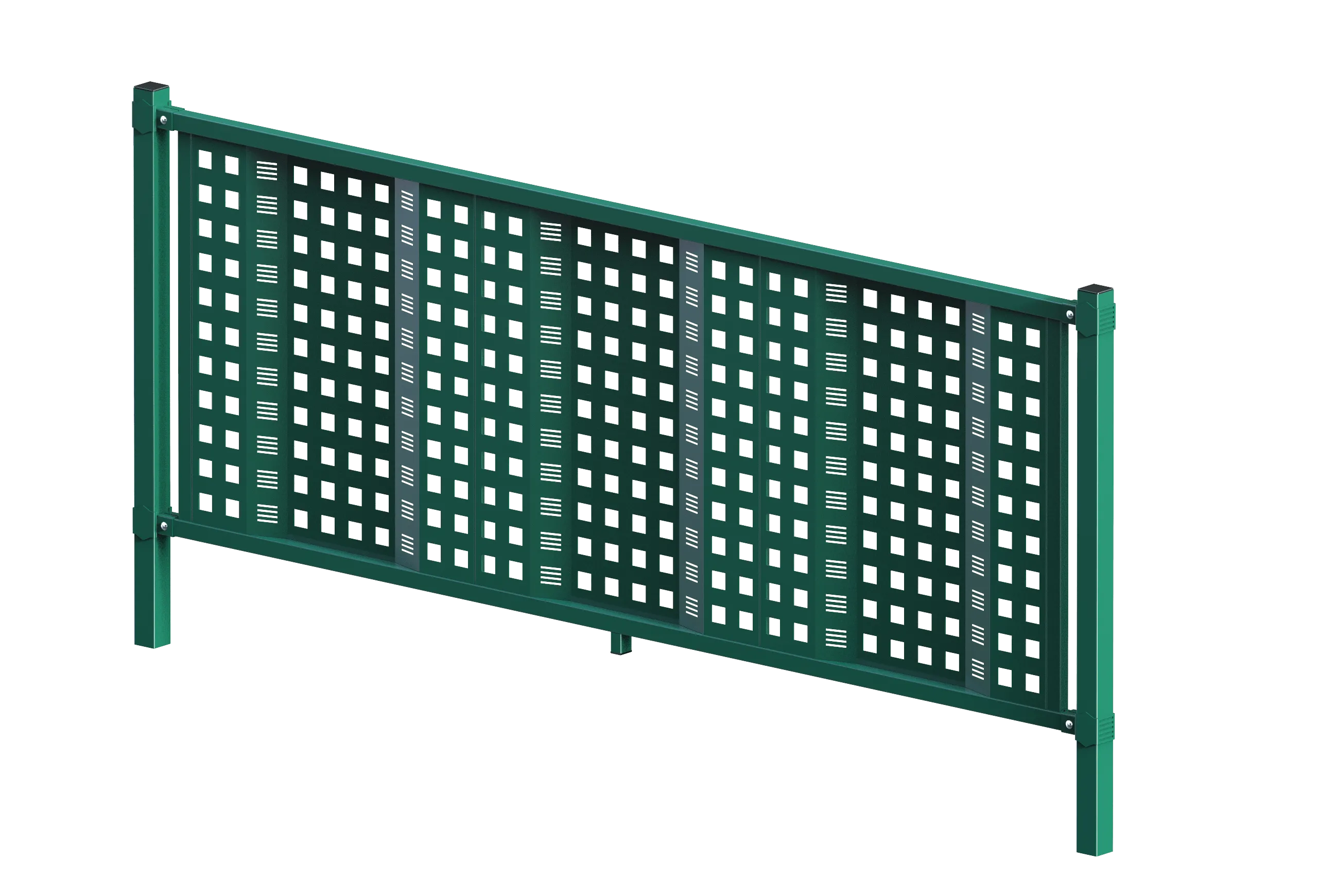

CEEN Enclosure

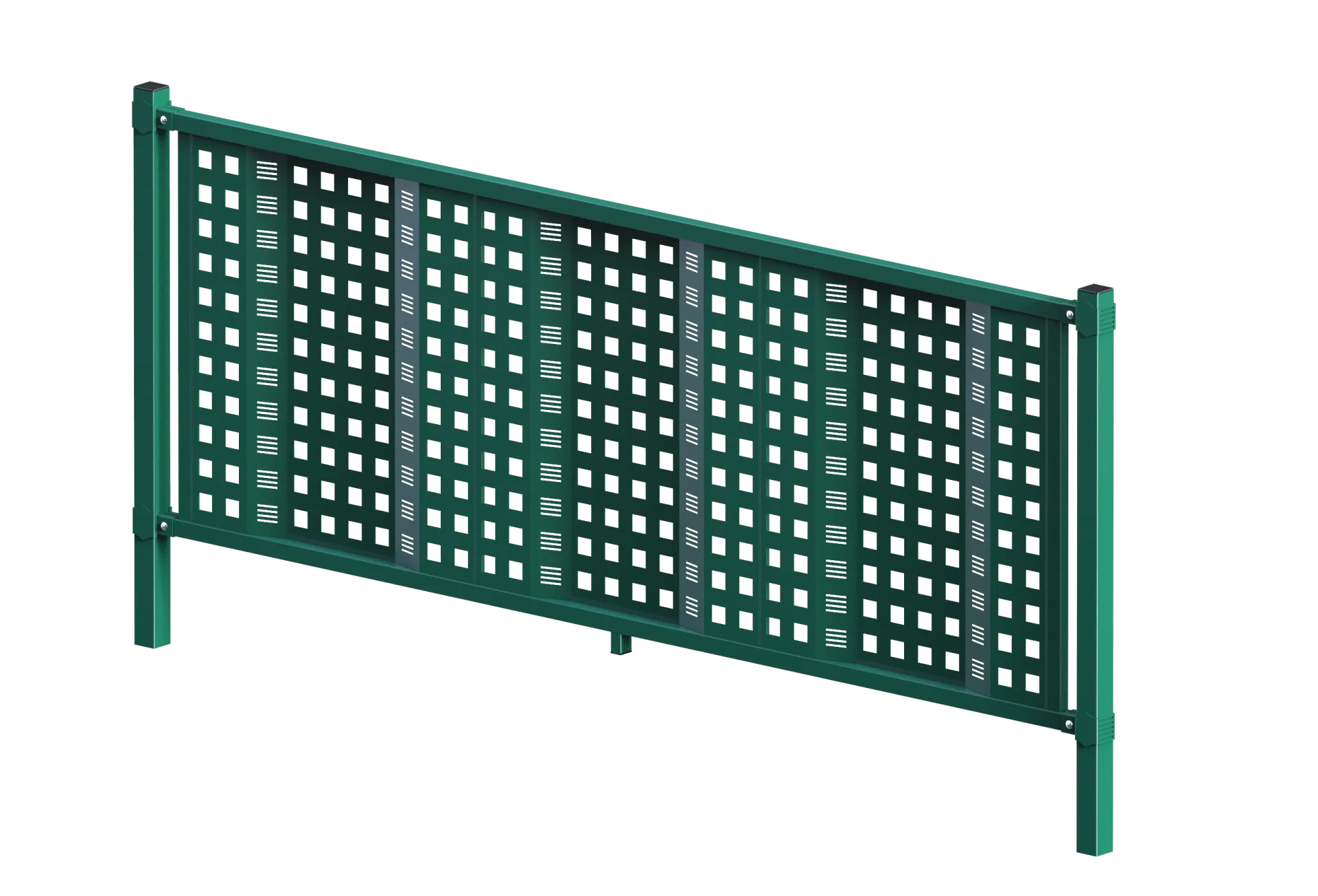

CEEN panels with bars, sheet metal, or electro-welded mesh. The CEEN enclosure is an ideal option for those who are looking for quality and durability. It is manufactured with perforated sheet metal, bars or electro-welded mesh. Its design allows it to be customised to the client's needs while maintaining maximum security in any environment.
Description
Panels consisting of an interior made of bars, sheet metal or electro-welded mesh framed in a 40 x 40 x 1.5 mm tube for horizontal crossbeams and a 40 x 30 x 1.5 mm tube for verticals, made of galvanised steel with subsequent plastic coating.
| Reference | Dimensions | Color |
|---|---|---|
| FC.MP.10.1025.0100 | Dimensions 2.70 x 1.03 m |
GALV
|
| FC.MP.10.1025.0150 | Dimensions 2.70 x 1.48 m |
GALV
|
| FC.MP.10.1025.0200 | Dimensions 2.70 x 1.93 m |
GALV
|
| Reference | Dimensions | Color |
|---|---|---|
| FC.MP.10.2026.0100 | Dimensions 2.70 x 1.03 m |
GALV
|
| FC.MP.10.2026.0150 | Dimensions 2.70 x 1.48 m |
GALV
|
| FC.MP.10.2026.0200 | Dimensions 2.70 x 1.93 m |
GALV
|
| Reference | Dimensions | Color |
|---|---|---|
| FC.MP.10.3027.0100 | Dimensions 2.70 x 1.03 m |
GALV
|
| FC.MP.10.3027.0150 | Dimensions 2.70 x 1.48 m |
GALV
|
| FC.MP.10.3027.0200 | Dimensions 2.70 x 1.93 m |
GALV
|

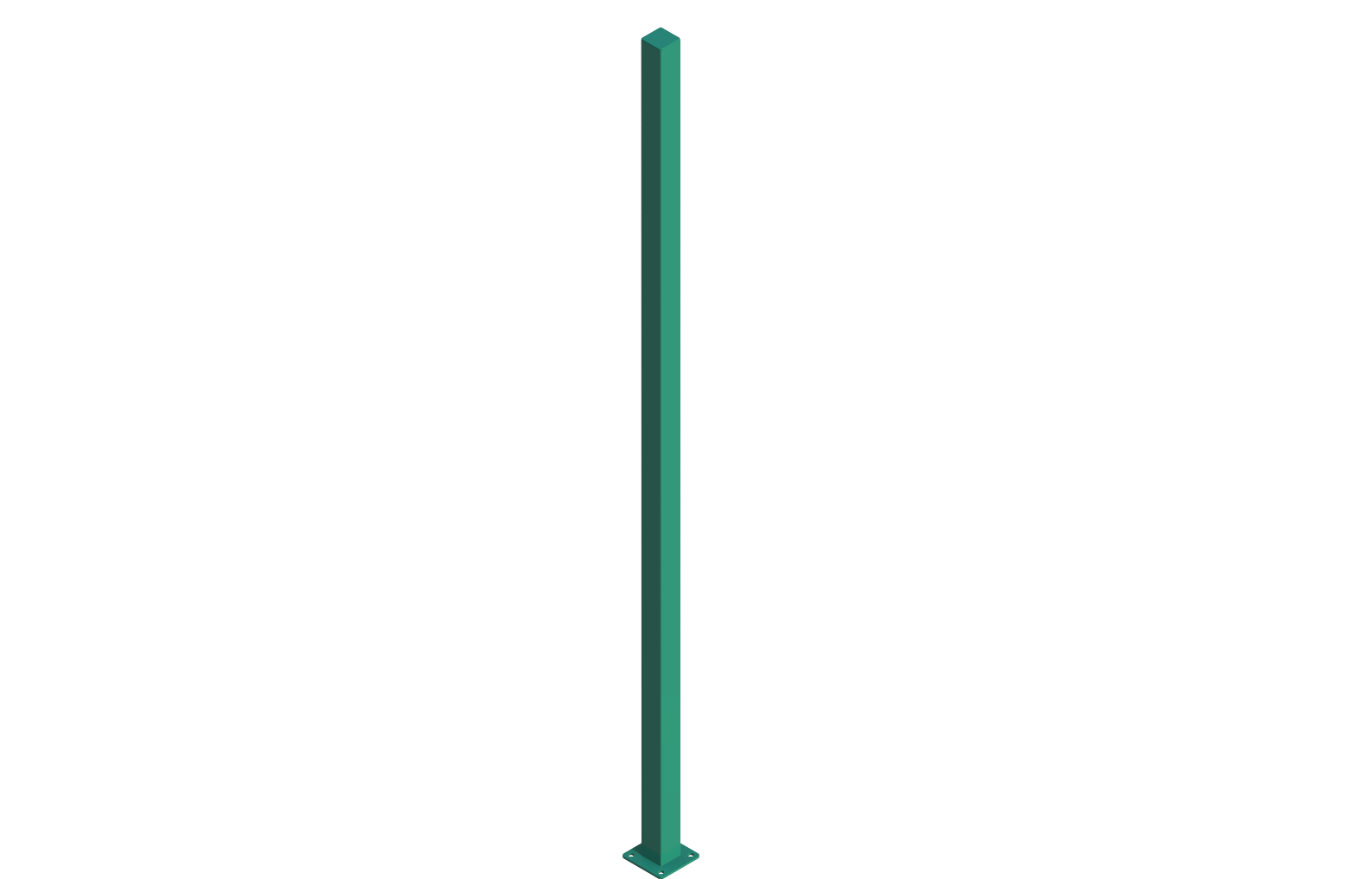

Posts for CEEN enclosure
Round or square posts for CEEN enclosure. They can be manufactured including a recessing bracket clamp or with a plate for screwing into concrete.
Description
60 x 60 x 1.5 mm or Ø 60 x 1.5 mm post. They are manufactured including a recessing bracket clamp or with welded plate for screwing.
| Reference | Dimensions | Height | Color |
|---|---|---|---|
| FC.PR.10.1050.0100 | Dimensions 60 x 60 x 1.300 mm | Height 1.00 m |
GALV
|
| FC.PR.10.1050.0150 | Dimensions 60 x 60 x 1.850 mm | Height 1.50 m |
GALV
|
| FC.PR.10.1050.0200 | Dimensions 60 x 60 x 2.400 mm | Height 2.00 m |
GALV
|
| Reference | Dimensions | Height | Color |
|---|---|---|---|
| FC.PR.10.1050.2100 | Dimensions 60 x 60 x 1.080 mm | Height 1.00 m |
GALV
|
| FC.PR.10.1050.2150 | Dimensions 60 x 60 x 1.530 mm | Height 1.50 m |
GALV
|
| FC.PR.10.1050.2200 | Dimensions 60 x 60 x 1.980 mm | Height 2.00 m |
GALV
|
| Reference | Dimensions | Height | Color |
|---|---|---|---|
| FC.PO.10.6015.1110 | Dimensions Ø 60 x 1.300 mm | Height 1.00 m |
GALV
|
| FC.PO.10.6015.1115 | Dimensions Ø 60 x 1.850 mm | Height 1.50 m |
GALV
|
| FC.PO.10.6015.1120 | Dimensions Ø 60 x 2.400 mm | Height 2.00 m |
GALV
|
| Reference | Dimensions | Height | Color |
|---|---|---|---|
| FC.PO.10.6015.1210 | Dimensions Ø 60 x 1.080 mm | Height 1.00 m |
GALV
|
| FC.PO.10.6015.1215 | Dimensions Ø 60 x 1.530 mm | Height 1.50 m |
GALV
|
| FC.PO.10.6015.1220 | Dimensions Ø 60 x 1.980 mm | Height 2.00 m |
GALV
|
CEEN enclosure accessories
Clamp fixing systems and other accessories.
Description
We offer a unique clamping system developed by Indusmetal Torres. Starting, centre, corner and variable angle clamps for both round and square posts.
| Reference | Image | Description | Packaging |
|---|---|---|---|
| FC.AP.10.0500.3010 |
|

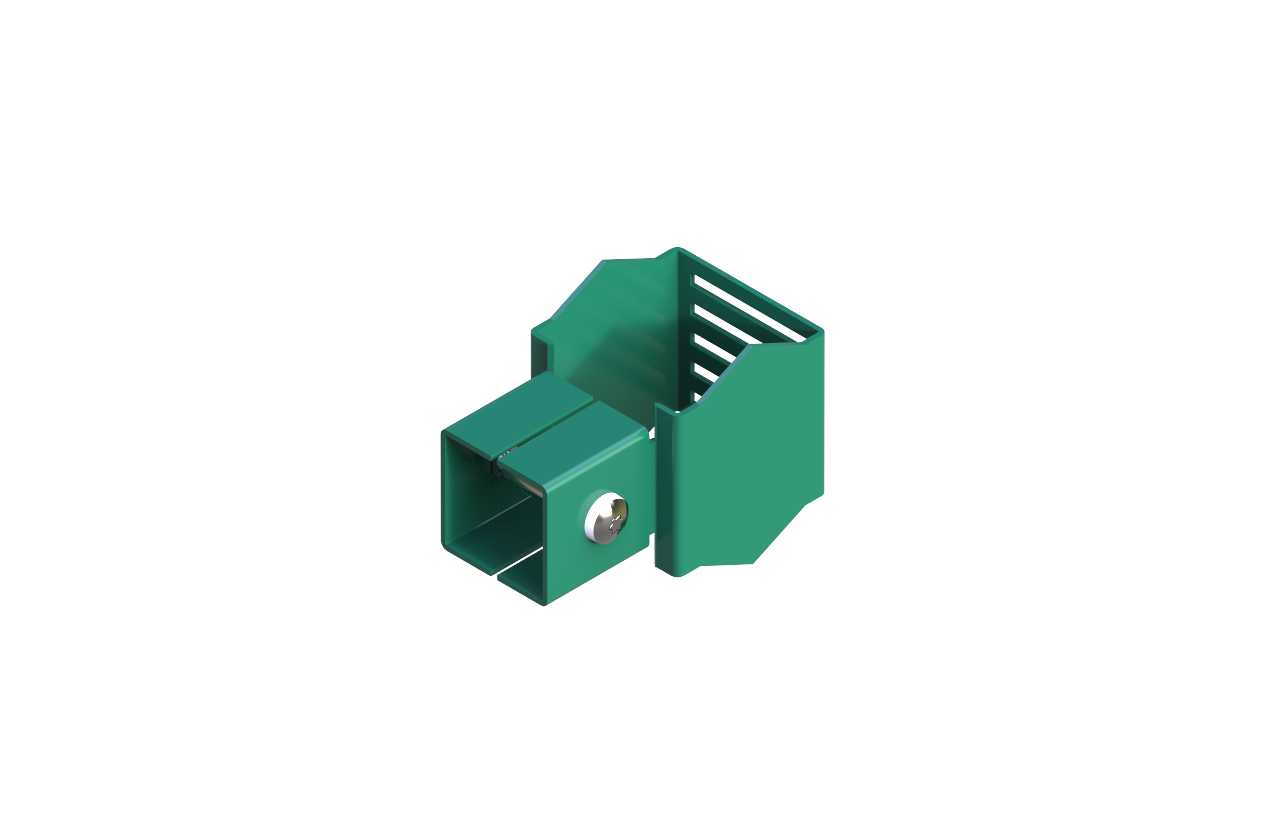

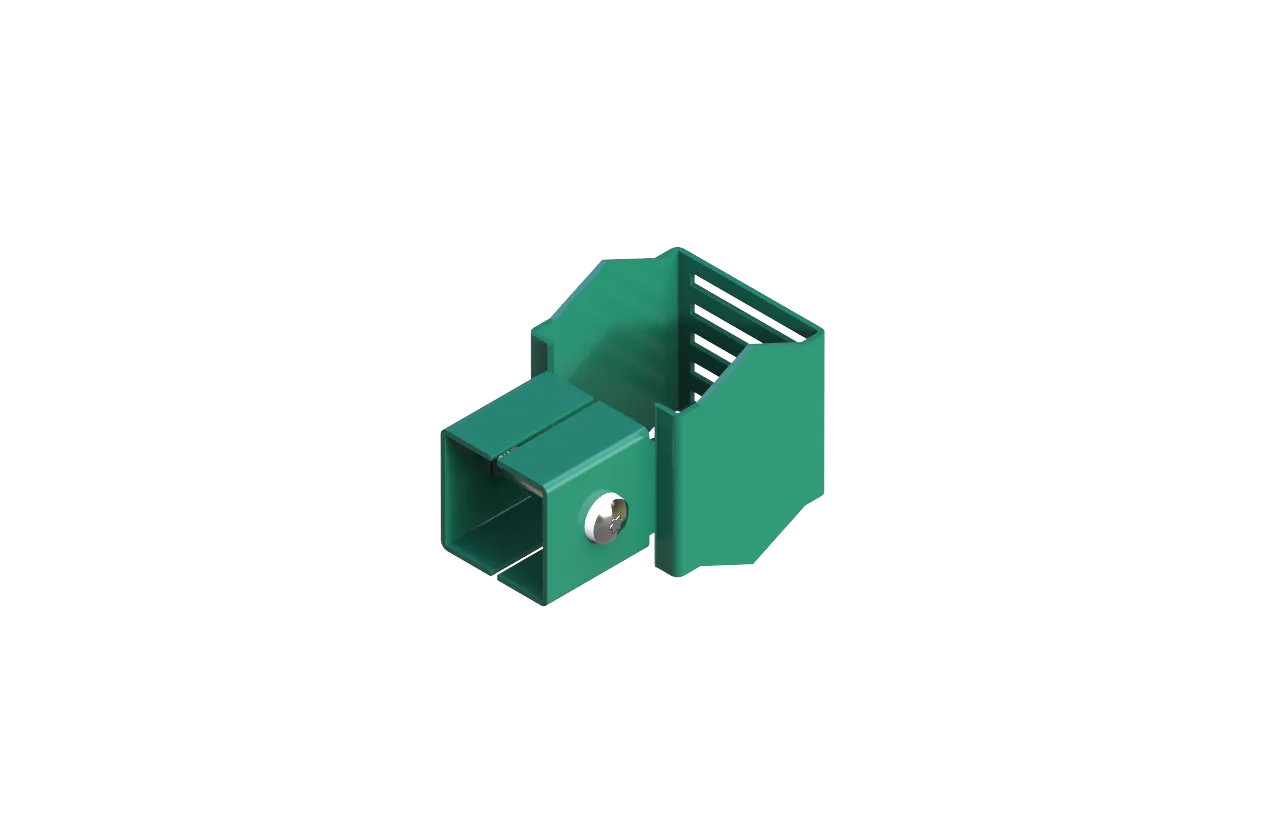

Description Start Clamp P-60/40 | Packaging boxes of 4 or 8 units |
| FC.AP.10.0500.3030 |
|

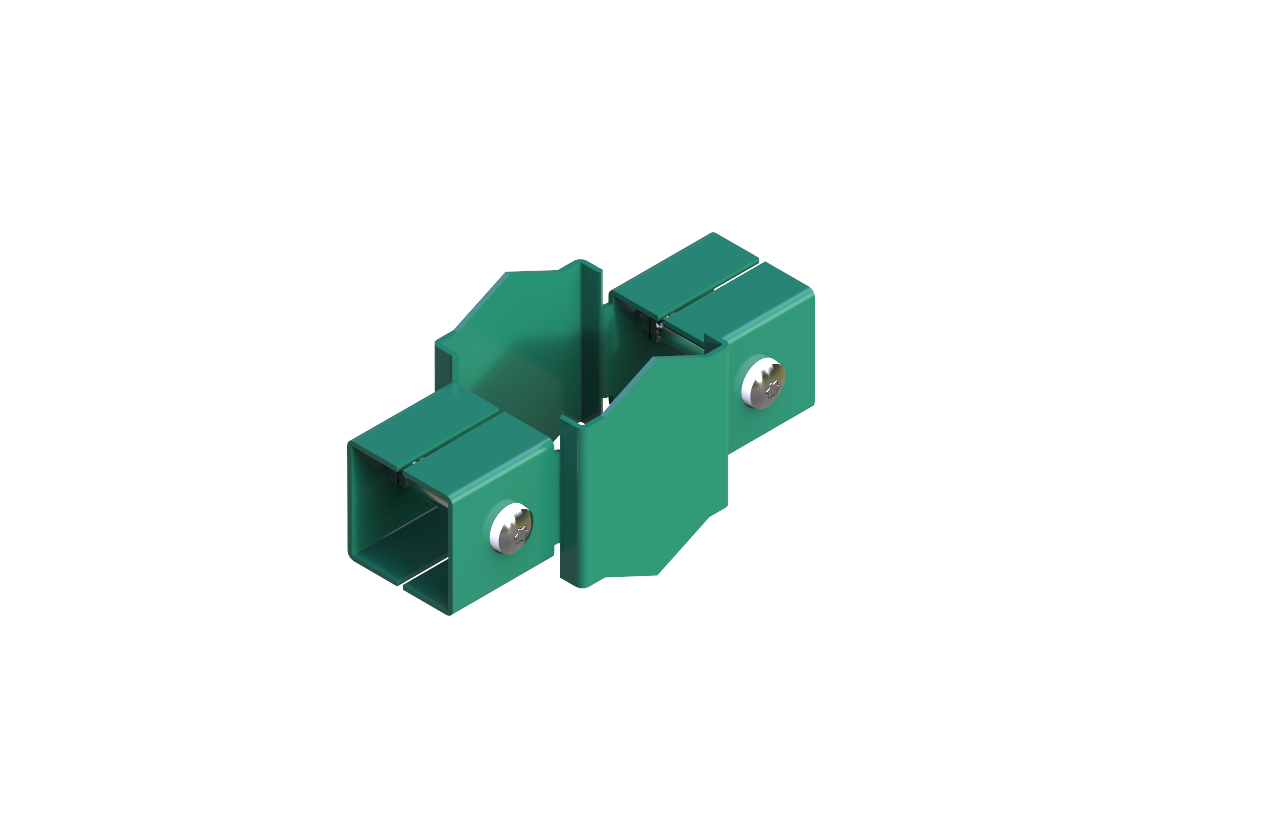

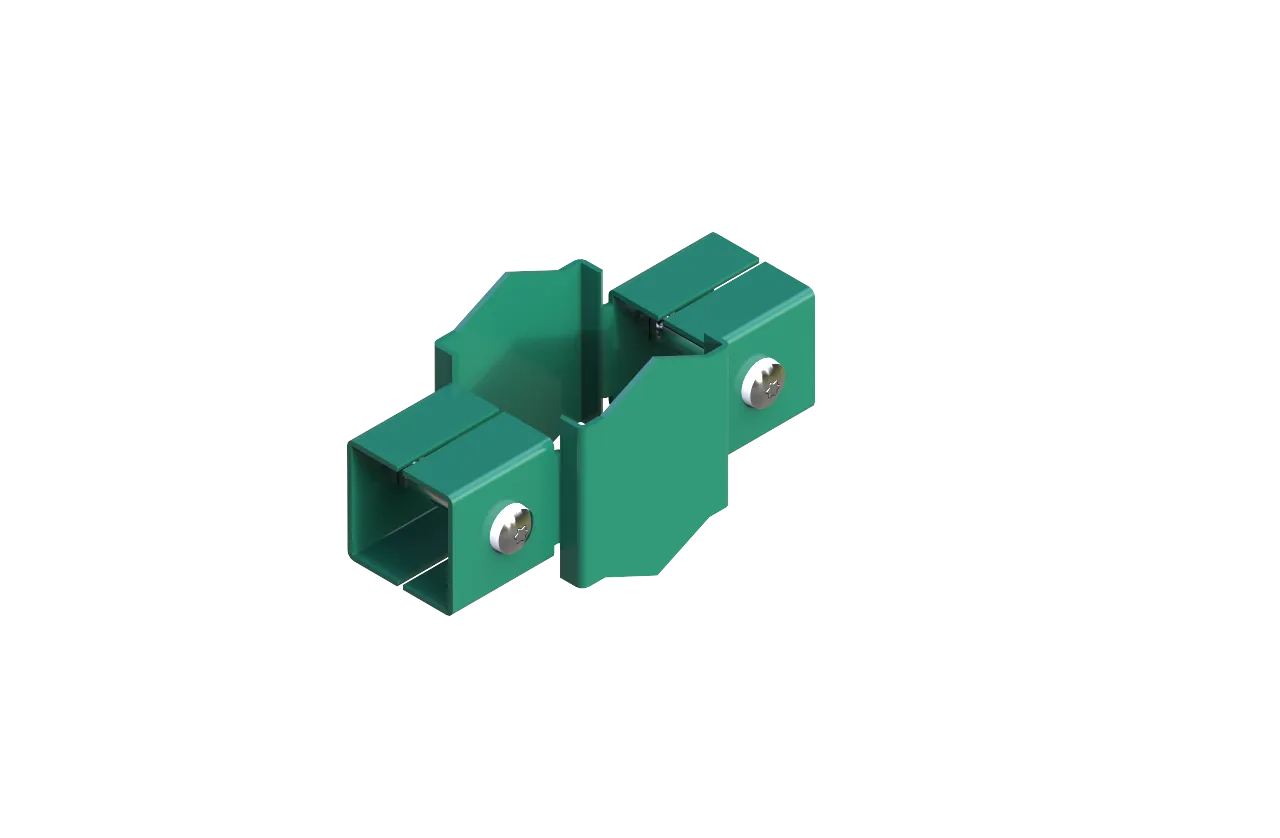

Description Centre Clamp P-60/40 | Packaging boxes of 4 or 8 units |
| FC.AP.10.0500.3050 |
|

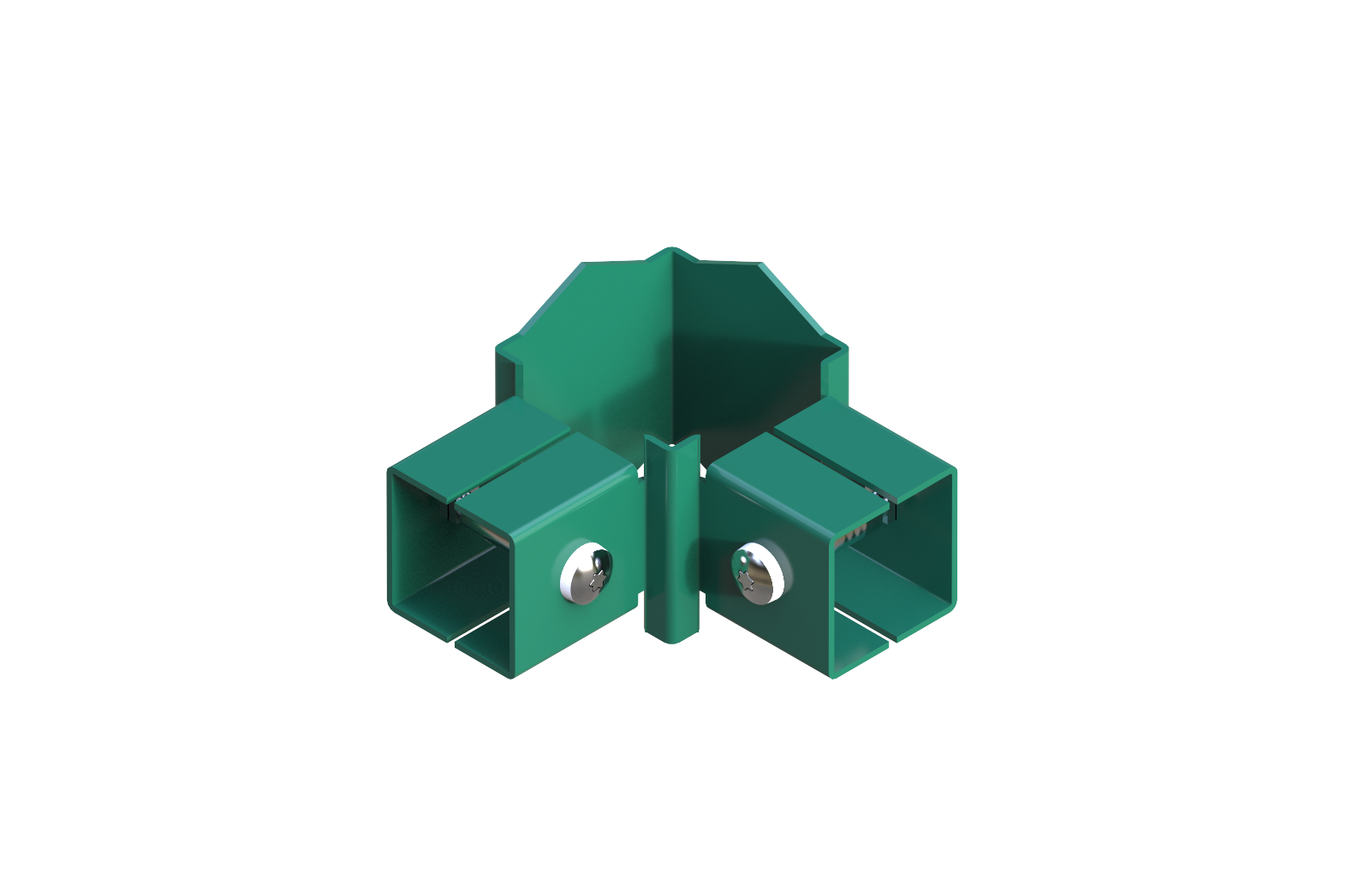

Description Corner Clamp P-60/40 | Packaging boxes of 4 or 8 units |
| FC.AP.10.0500.3510 |
|

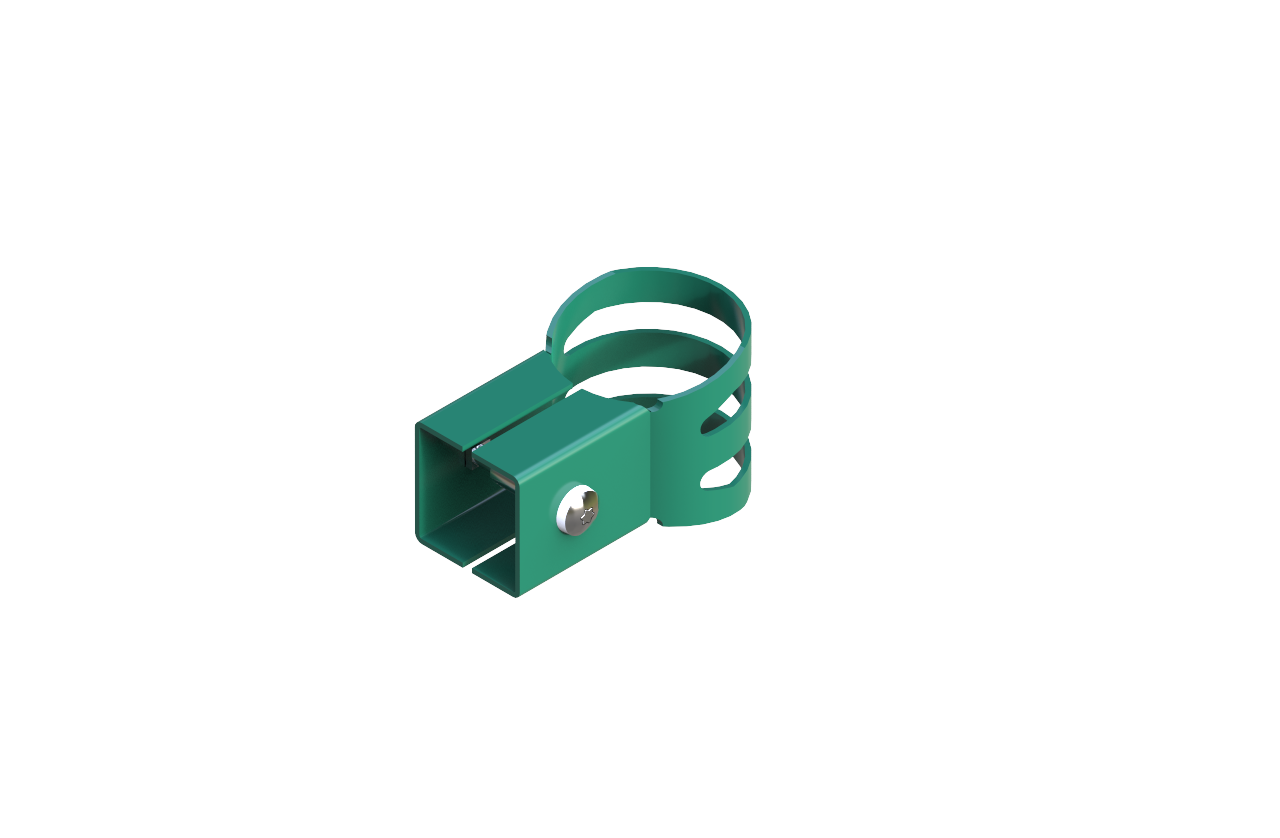

Description Start Clamp P-R 60/40 | Packaging boxes of 4 or 8 units |
| FC.AP.10.0500.3550 |
|

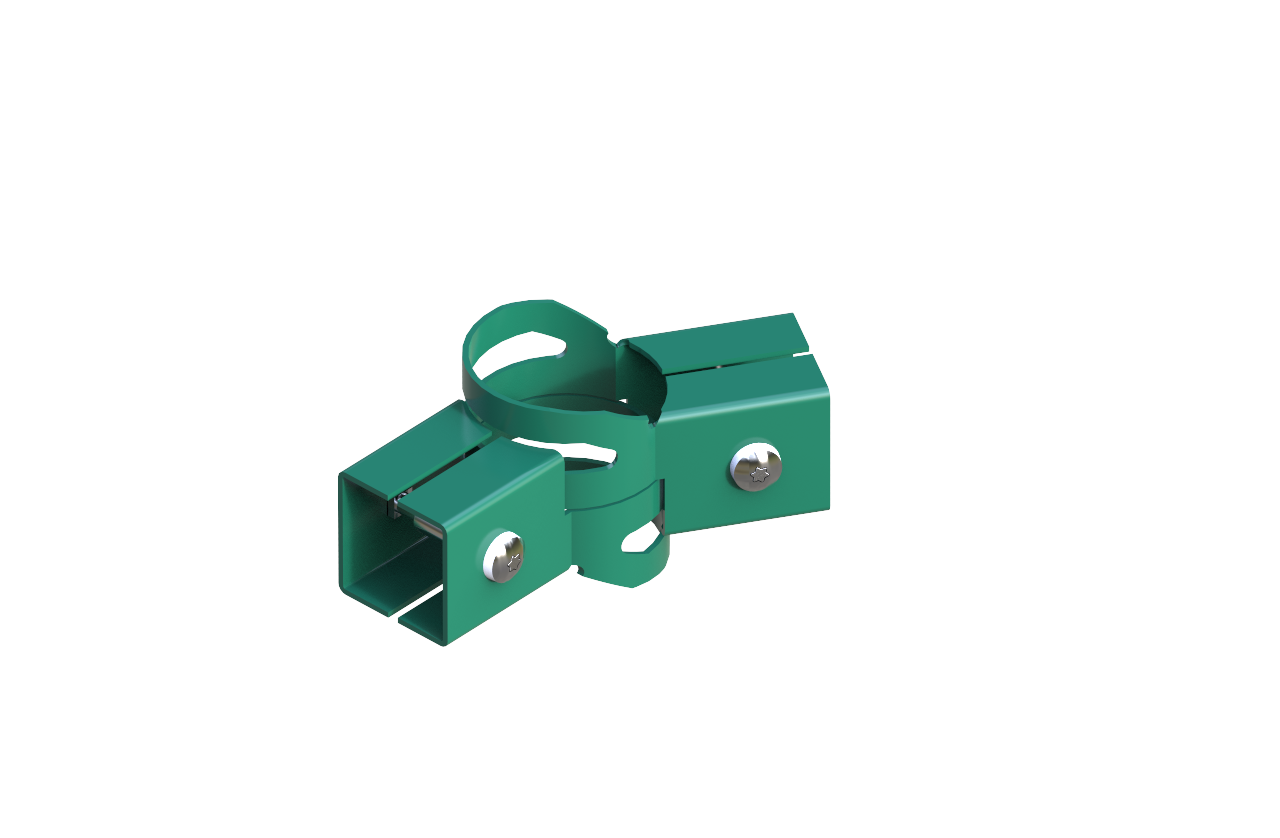

Description Variable Angle Clamp P-R 60/40 | Packaging boxes of 4 or 8 units |
| FC.AP.10.0500.3530 |
|

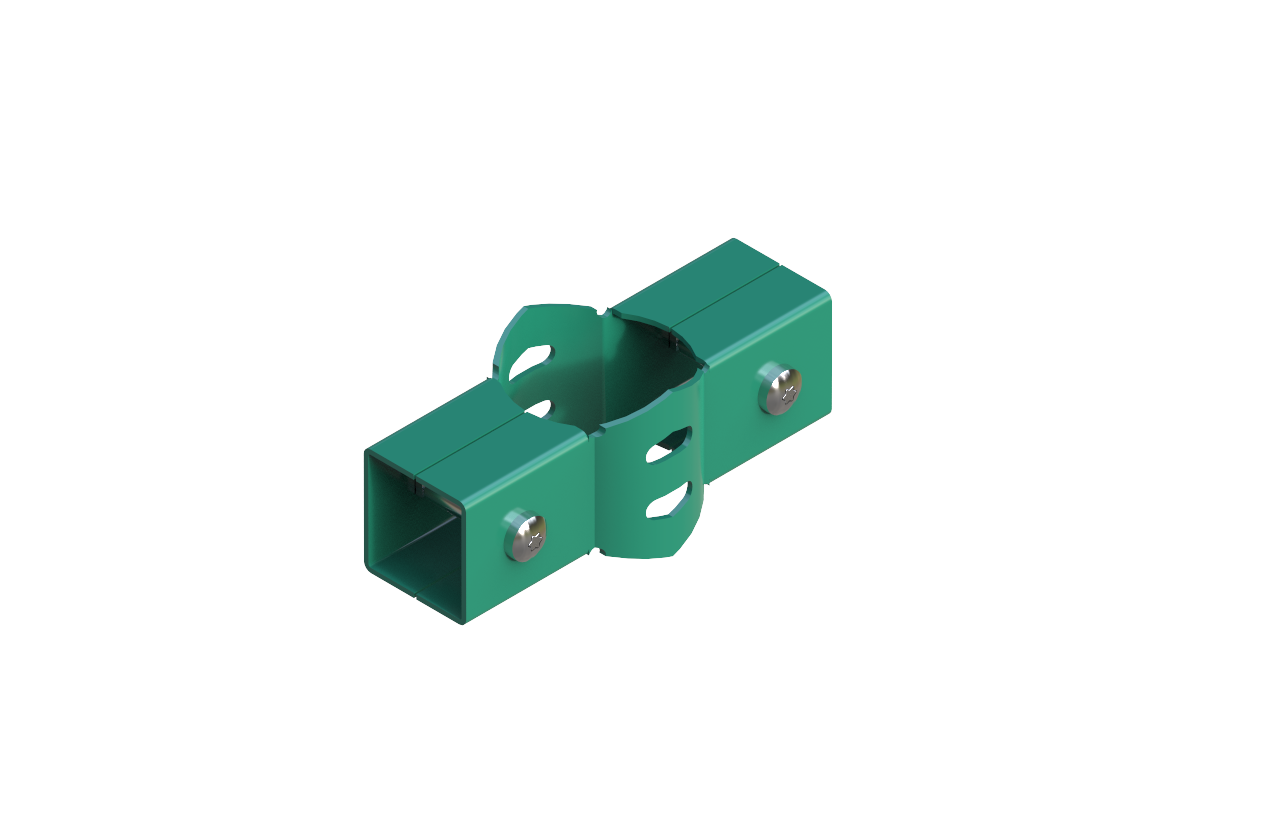

Description Centre Clamp P-R 60/40 | Packaging boxes of 4 or 8 units |
| Reference | Description | Color |
|---|---|---|
| FC.AP.10.4510.6000 | Description For 60 mm tube |
GALV
|
| Reference | Description | Color |
|---|---|---|
| FC.MP.10.2000.0907 | Description 40 x 30 x 907 mm |
GALV
|
| FC.MP.10.2000.1357 | Description 40 x 30 x 1357 mm |
GALV
|
| FC.MP.10.2000.1807 | Description 40 x 30 x 1807 mm |
GALV
|

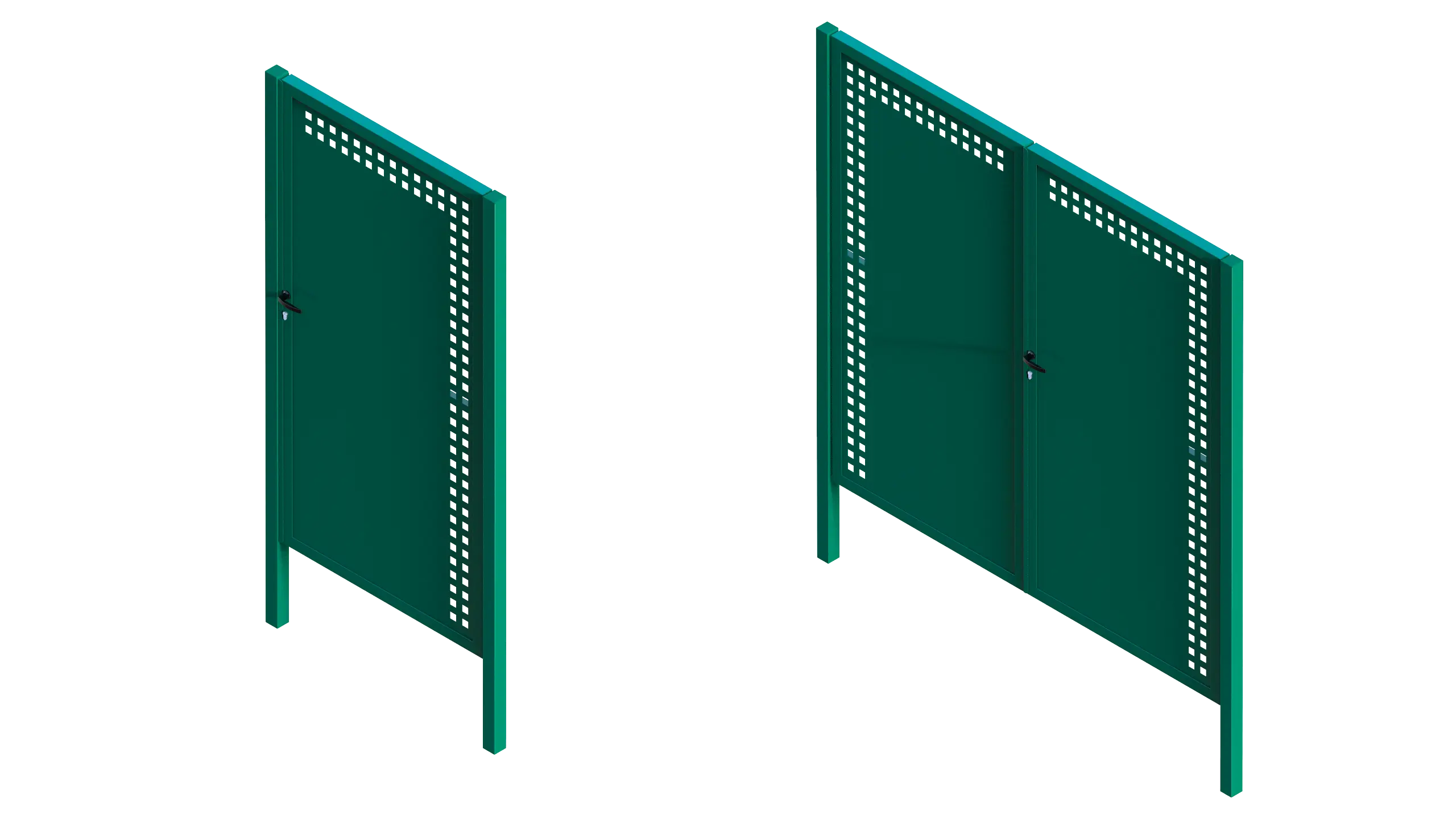

Perforated sheet metal gate
Single and double leaf perforated sheet metal gates. IT's perforated sheet metal gates are an excellent choice for quality fences and enclosures that require a combination of security and aesthetics.
Description
Gate manufactured with galvanised PDS 28 profiles and 1.5 mm thick flat perforated sheet metal. Pillars of 60 x 60 and 100 x 100 mm depending on the gate’s size. Wing hinge with 180º opening, lock and handle.
| Reference | No. of sheets | Dimensions | Color |
|---|---|---|---|
| FP.CH.11.2110.1065 | No. of sheets 1 sheet | Dimensions 1000 x 1000 |
6005
|
| FP.CH.11.2110.1565 | No. of sheets 1 sheet | Dimensions 1000 x 1500 |
6005
|
| FP.CH.11.2110.2065 | No. of sheets 1 sheet | Dimensions 1000 x 2000 |
6005
|
| FP.CH.11.2230.1565 | No. of sheets 2 sheets | Dimensions 3000 x 1500 |
6005
|
| FP.CH.11.2230.2065 | No. of sheets 2 sheets | Dimensions 3000 x 2000 |
6005
|
| FP.CH.11.2240.1565 | No. of sheets 2 sheets | Dimensions 4000 x 1500 |
6005
|
| FP.CH.11.2240.2065 | No. of sheets 2 sheets | Dimensions 4000 x 2000 |
6005
|
