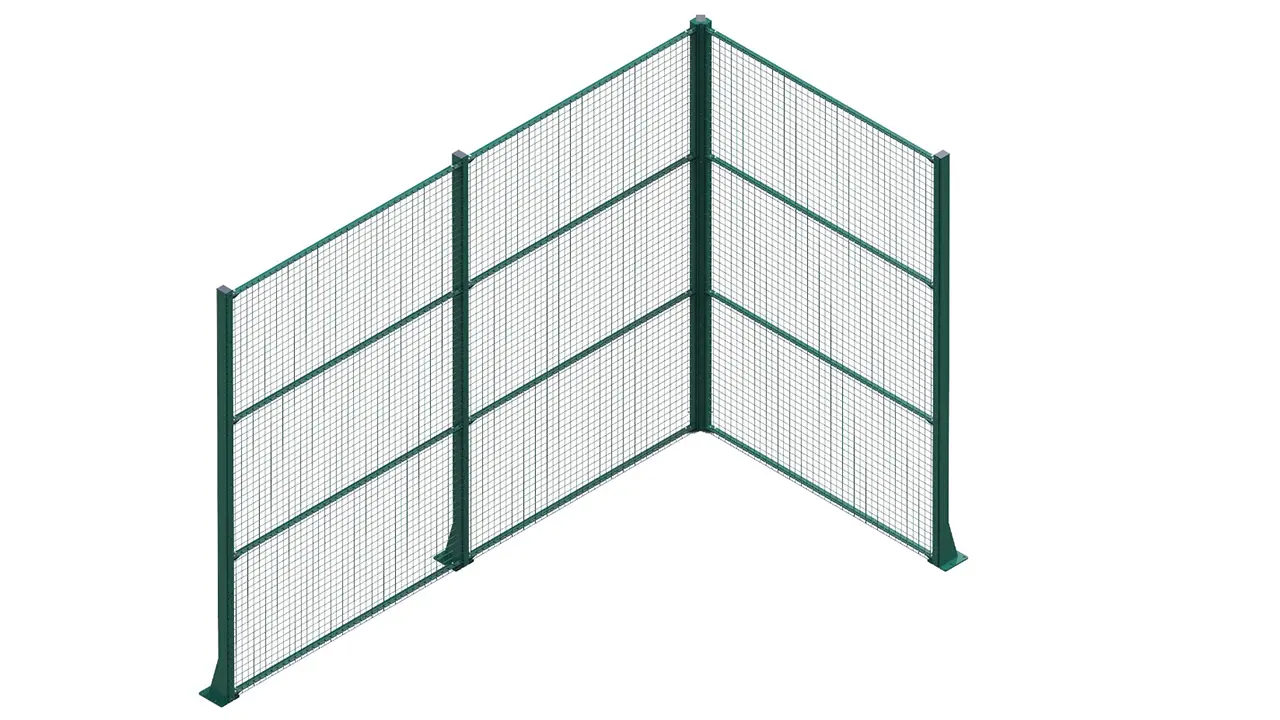

CARTEYA enclosure
The CARTEYA enclosure is an innovative and high quality solution to guarantee security in different spaces, whether sporting, industrial or residential. Modular design with a unique fixing system developed by IT that allows the fence to be adapted to the needs of the site.
Description

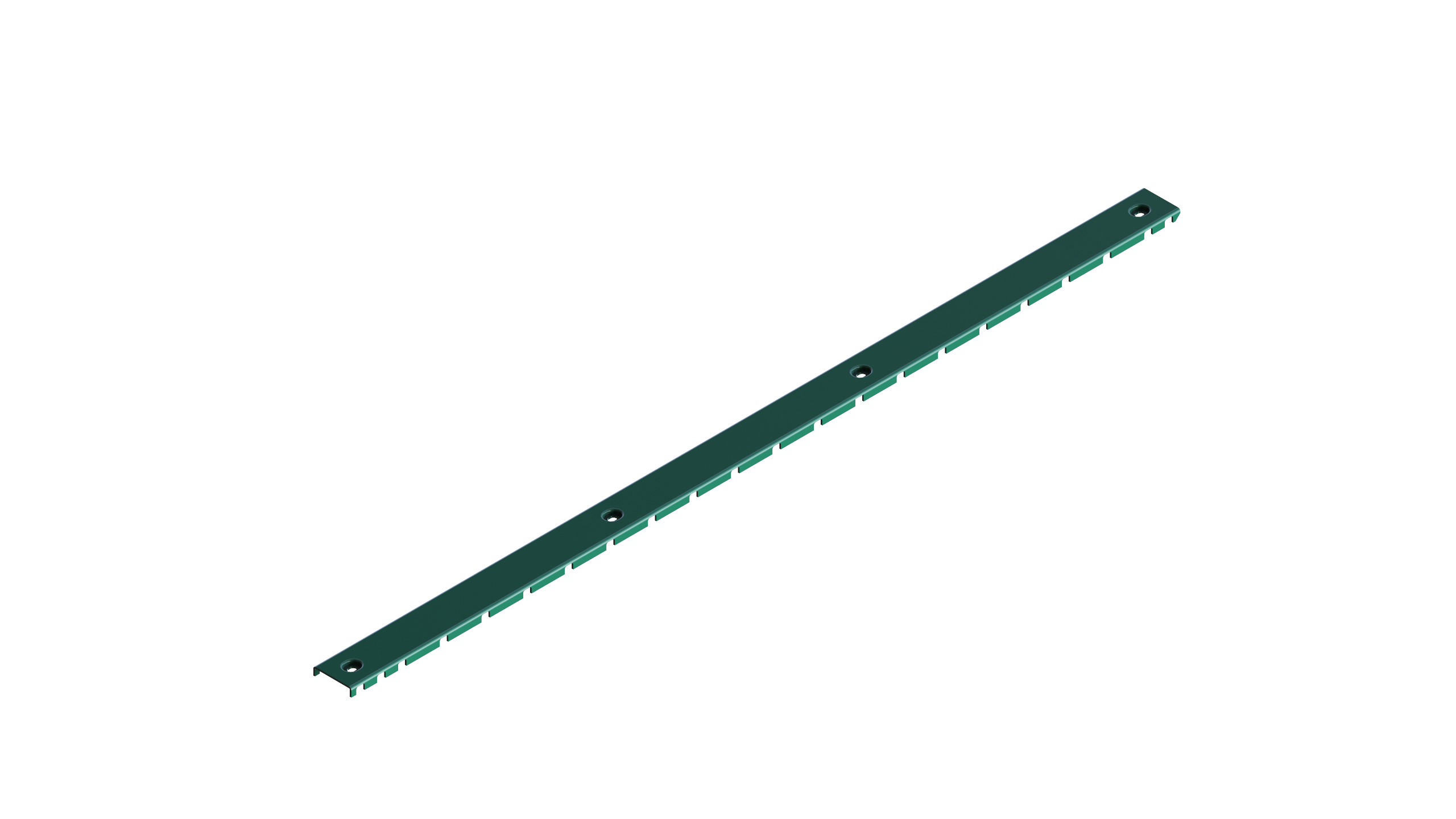

Modular enclosure made up of 50 x 50 x 4 mm electro-welded mesh panels, framed by two 2 mm galvanised sheet metal crossbars, fixed with brackets to posts of variable section depending on the height of the enclosure. Finished with a specific profile to conceal spikes.
| Reference | Dimensions | Color |
|---|---|---|
| FC.EC.G4.1019.7097 | Dimensions Carteya Mesh Panel 1975 x 0975 mm |
GALV
|
| FC.EC.G4.1019.7197 | Dimensions Carteya Mesh Panel 1975 x 1975 mm |
GALV
|
| FC.EC.G4.1019.7297 | Dimensions Carteya Mesh Panel 1975 x 2975 mm |
GALV
|
| FC.EC.G4.1019.7397 | Dimensions Carteya Mesh Panel 1975 x 3975 mm |
GALV
|

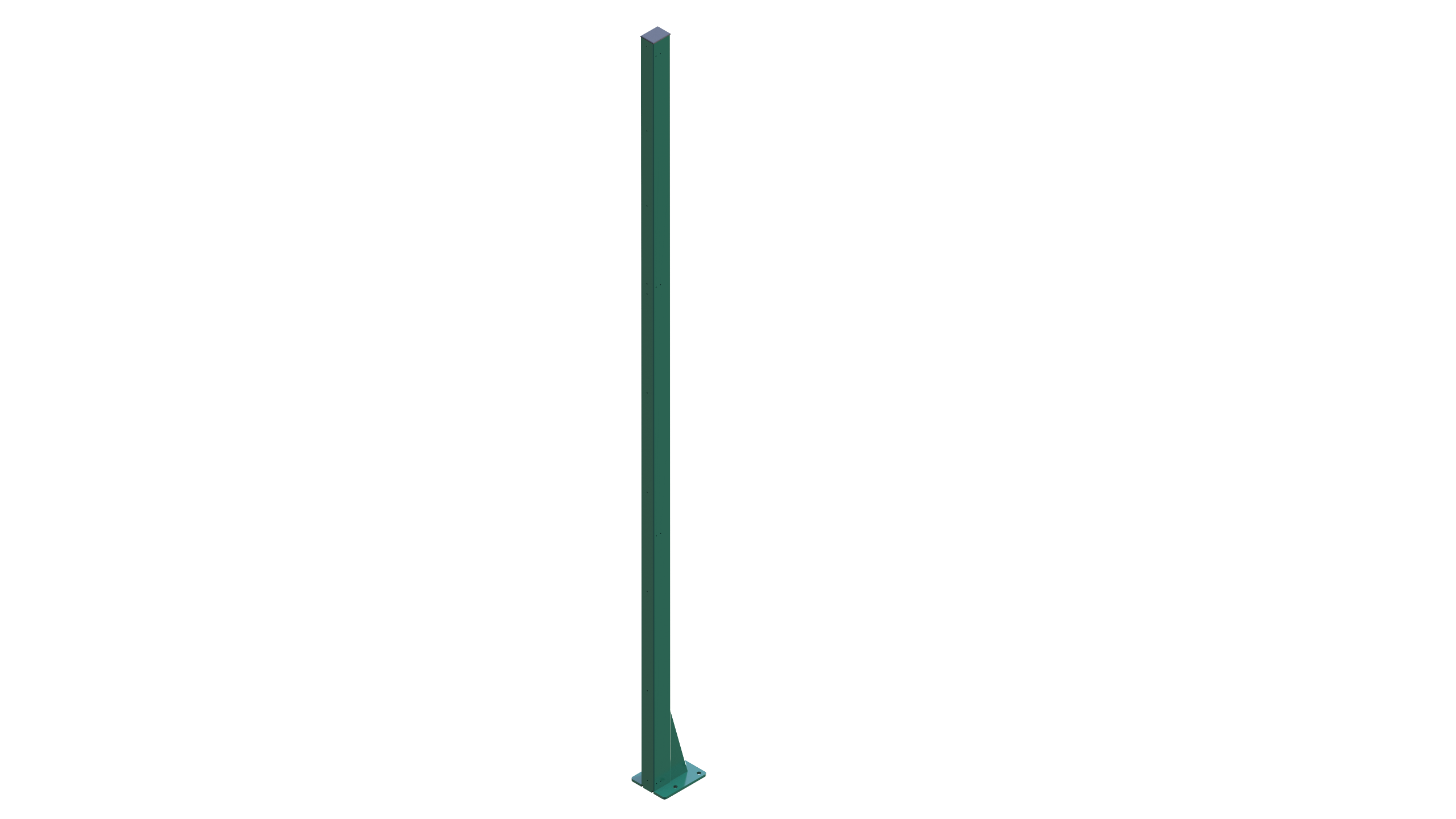

CARTEYA® intermediate and corner posts
Posts for fixing Carteya mesh.
Description
Pillars made of 60 x 60 x 2 or 80 x 60 x 2 mm tube. End, corner and intermediate pillars are manufactured.
| Reference | Description | Height | Color |
|---|---|---|---|
| FC.PT.65.1266.0110 | Description 60 x 60 x 1300 mm | Height 1.00 m |
6005
|
| 1003092 | Description 60 x 60 x 2400 mm | Height 2.00 m |
6005
|
| FC.PT.65.1268.0130 | Description 80 x 60 x 3500 mm | Height 3.00 m |
6005
|
| FC.PT.65.1268.0140 | Description 80 x 60 x 4500 mm | Height 4.00 m |
6005
|
| FC.PT.65.1266.0310 | Description Corner 60 x 60 x 1300 mm | Height 1.00 m |
6005
|
| 1003093 | Description Corner 60 x 60 x 2400 mm | Height 2.00 m |
6005
|
| FC.PT.65.1268.0330 | Description Corner 80 x 60 x 3500 mm | Height 3.00 m |
6005
|
| FC.PT.65.1268.0340 | Description Corner 80 x 60 x 4500 mm | Height 4.00 m |
6005
|
| FC.PT.65.1266.0410 | Description Corner 60 x 60 x 1300 mm | Height 1.00 m |
6005
|
| FC.PT.65.1266.0420 | Description Corner 60 x 60 x 2400 mm | Height 2.00 m |
6005
|
| FC.PT.65.1268.0430 | Description Right Corner 80 x 60 x 3500 mm | Height 3.00 m |
6005
|
| FC.PT.65.1268.0431 | Description Left Corner 80 x 60 x 3500 mm | Height 3.00 m |
6005
|
| FC.PT.65.1268.0440 | Description Right Corner 80 x 60 x 4500 mm | Height 4.00 m |
6005
|
| FC.PT.65.1268.0441 | Description Left Corner 80 x 60 x 4500 mm | Height 4.00 m |
6005
|
| FC.PT.10.1266.1110 | Description 60 x 60 x 1015 mm with plate | Height 1.00 m |
6005
|
| FC.PT.10.1266.1120 | Description 60 x 60 x 2015 mm with plate | Height 2.00 m |
6005
|
| FC.PT.10.1268.1130 | Description 80 x 60 x 3021 mm with plate | Height 3.00 m |
6005
|
| FC.PT.10.1268.1140 | Description 80 x 60 x 4021 mm with plate | Height 4.00 m |
6005
|
| FC.PT.10.1266.1310 | Description Corner 60 x 60 x 1015 mm with plate | Height 1.00 m |
6005
|
| FC.PT.10.1266.1320 | Description Corner 60 x 60 x 2015 mm with plate | Height 2.00 m |
6005
|
| FC.PT.10.1268.1330 | Description Corner 80 x 60 x 3021 mm with plate | Height 3.00 m |
6005
|
| FC.PT.10.1268.1340 | Description Corner 80 x 60 x 4021 mm with plate | Height 4.00 m |
6005
|
| FC.PT.10.1266.1410 | Description Corner 60 x 60 x 1015 mm with plate | Height 1.00 m |
6005
|
| FC.PT.10.1266.1420 | Description Corner 60 x 60 x 2015 mm with plate | Height 2.00 m |
6005
|
| FC.PT.10.1268.1430 | Description Right Corner 80 x 60 x 3021 mm with plate | Height 3.00 m |
6005
|
| FC.PT.10.1268.1431 | Description Left Corner 80 x 60 x 3021 mm with plate | Height 3.00 m |
6005
|
| FC.PT.10.1268.1440 | Description Right Corner 80 x 60 x 4021 mm with plate | Height 4.00 m |
6005
|
| FC.PT.10.1268.1441 | Description Left Corner 80 x 60 x 4021 mm with plate | Height 4.00 m |
6005
|
Carteya accessories
A wide selection of accessories for the assembly of the Carteya enclosure.
Description
Crossbeam fixing bracket made of 2.5 mm thick pickled sheet metal and electro-galvanised process. Crossbeam fixing bracket made of galvanised folded sheet metal with 6 holes, 4 to fix the crossbeam and 2 to fix it to the post CARTEYA crossbeam made of 2 mm thick galvanised sheet metal. Horizontal crossbeam made of 2 mm thick galvanised folded sheet metal with grooves for fitting welded mesh and 4 oval holes at the ends for attaching the CARTEYA crossbeam support.
| Reference | Dimensions | Color |
|---|---|---|
| FC.PT.10.1225.1046 | Dimensions 1000 x 46 mm |
GALV
|
| FC.PT.10.1225.1047 | Dimensions 1000 x 46 mm right |
GALV
|
| FC.PT.10.1225.1048 | Dimensions 1000 x 46 mm left |
GALV
|
| FC.PT.10.1125.0100 | Dimensions 1000 x 40 mm corner |
GALV
|
| FC.PT.10.1125.2000 | Dimensions 2000 x 46 mm |
GALV
|
| FC.PT.10.1225.2047 | Dimensions 2000 x 46 mm right |
GALV
|
| FC.PT.10.1225.2048 | Dimensions 2000 x 46 mm left |
GALV
|
| FC.PT.10.1226.2040 | Dimensions 2000 x 40 mm corner |
GALV
|
| FC.PT.10.1228.1946 | Dimensions 1995 x 46 mm supplement up to 4 m |
GALV
|
| FC.PT.10.1228.1947 | Dimensions 1995 x 46 mm supplement up to 4 m right |
GALV
|
| FC.PT.10.1228.1948 | Dimensions 1995 x 46 mm supplement up to 4 m left |
GALV
|
| FC.PT.10.1226.1940 | Dimensions 1995 x 40 mm corner supplement up to 4 m |
GALV
|
| Reference | Dimensions | Color |
|---|---|---|
| FC.PT.10.1224.1930 | Dimensions 1930 x 58 x 2 mm |
GALV
|
| Reference | Dimensions | Color |
|---|---|---|
| FC.PT.C0.1200.1040 | Dimensions Carteya pillar beam fixing support |
GALV
|
| 3003628 | Dimensions Fastite screw 2000 M-6 x 10 |
GALV
|
| 3003627 | Dimensions Fastite screw 2000 M-6 x 25 flat head |
GALV
|
