BLINDOR® enclosure gates

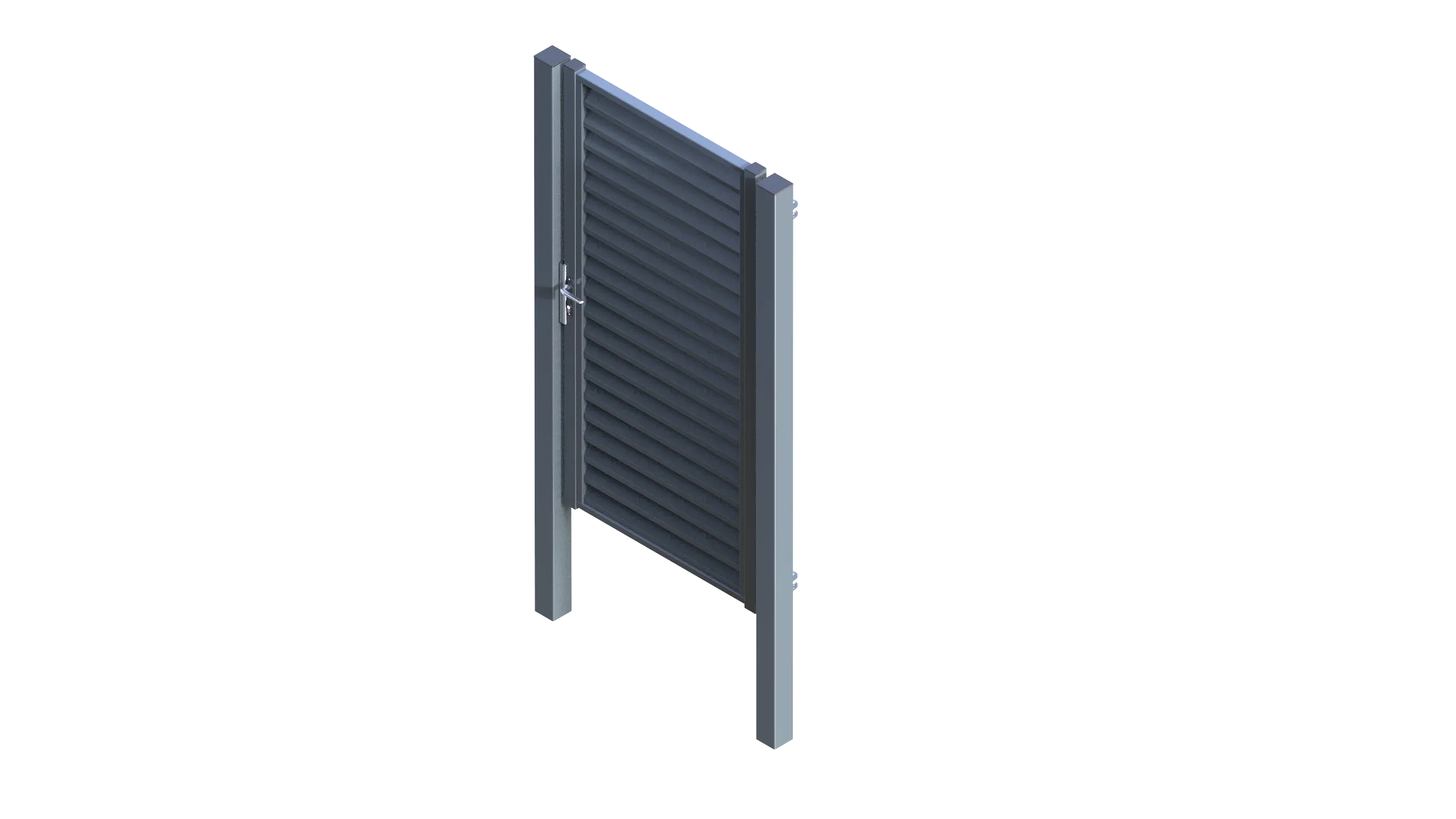

BLINDOR single and double leaf swing gates
Description
Blindor single and double leaf gates made of 50 x 30 x 2 crossbeams, 60 x 60 x 2 mm vertical upright posts and 100 x 100 x 3 or 120 x 120 x 3 pillars, depending on the size of the sheet. Locinox accessories.
| Reference | Nº leaves | Dimensions | Color |
|---|---|---|---|
| FP.CH.31.2110.1065 | Nº leaves 1-H | Dimensions 1.000 x 1.000 mm |
6005
|
| FP.CH.31.2110.1565 | Nº leaves 1-H | Dimensions 1.000 x 1.500 mm |
6005
|
| FP.CH.31.2110.2065 | Nº leaves 1-H | Dimensions 1.000 x 2.000 mm |
6005
|
| FP.CH.31.2230.1565 | Nº leaves 2-H | Dimensions 3.000 x 1.500 mm |
6005
|
| FP.CH.31.2230.2065 | Nº leaves 2-H | Dimensions 3.000 x 2.000 mm |
6005
|
| FP.CH.31.2240.2065 | Nº leaves 2-H | Dimensions 4.000 x 2.000 mm |
6005
|

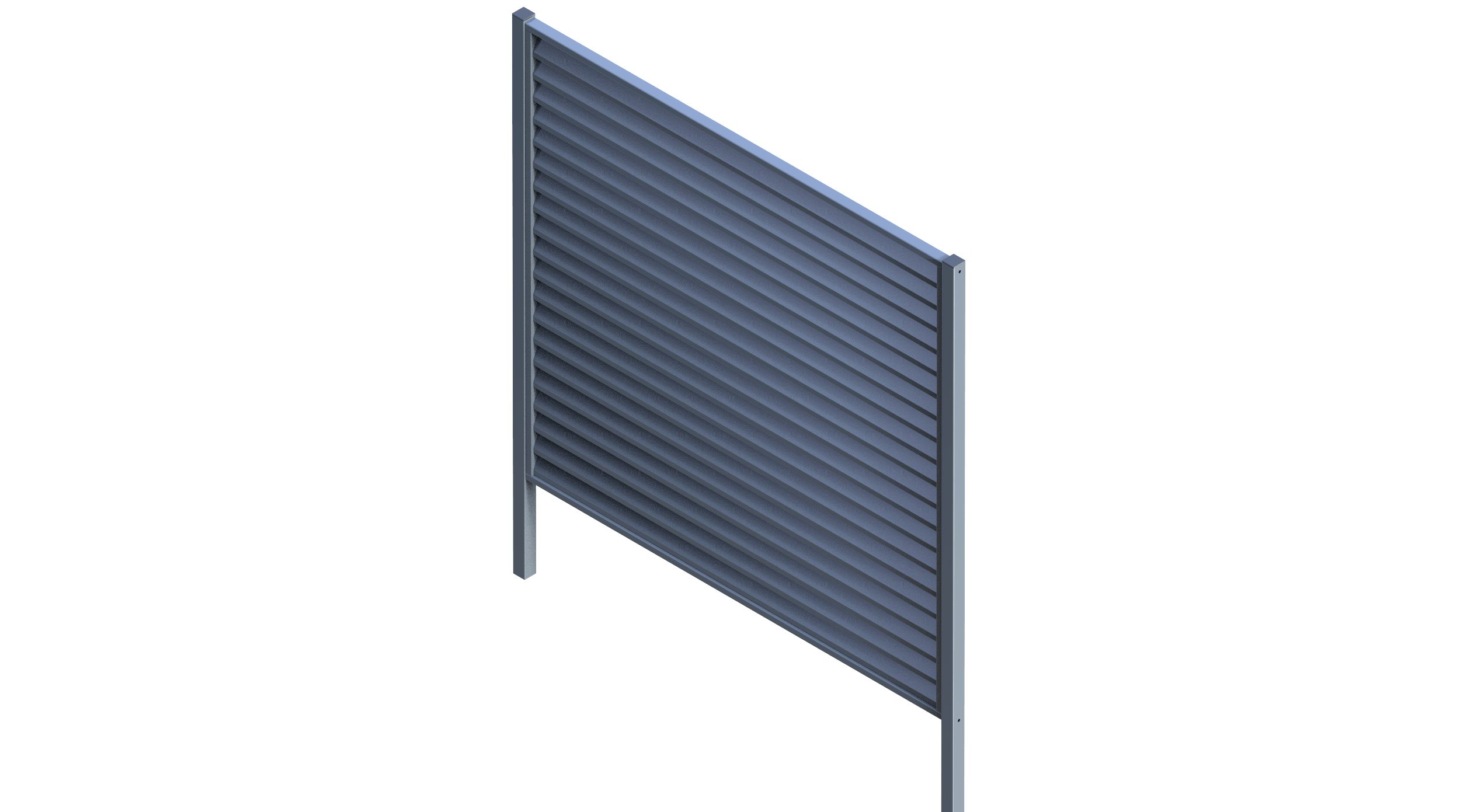

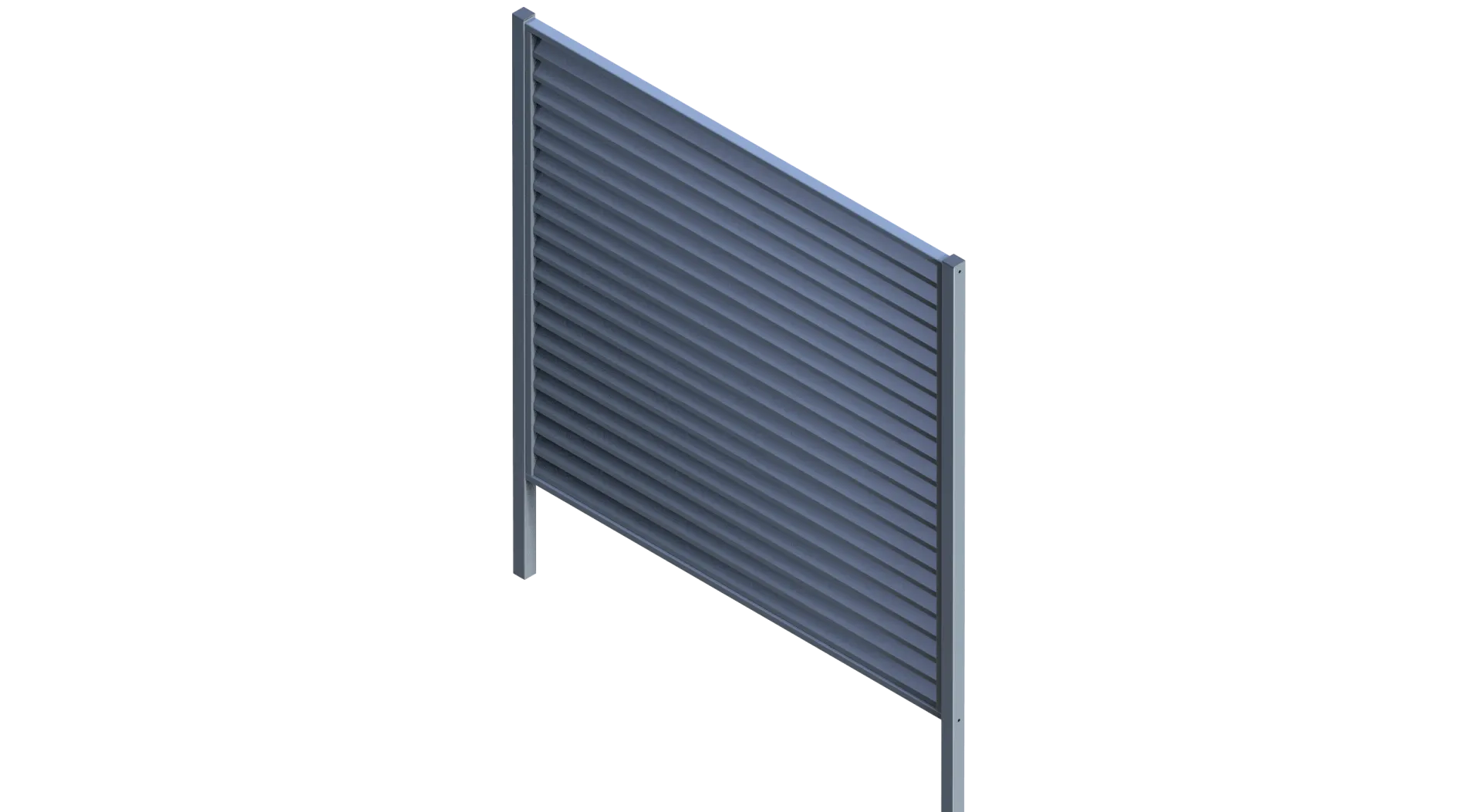

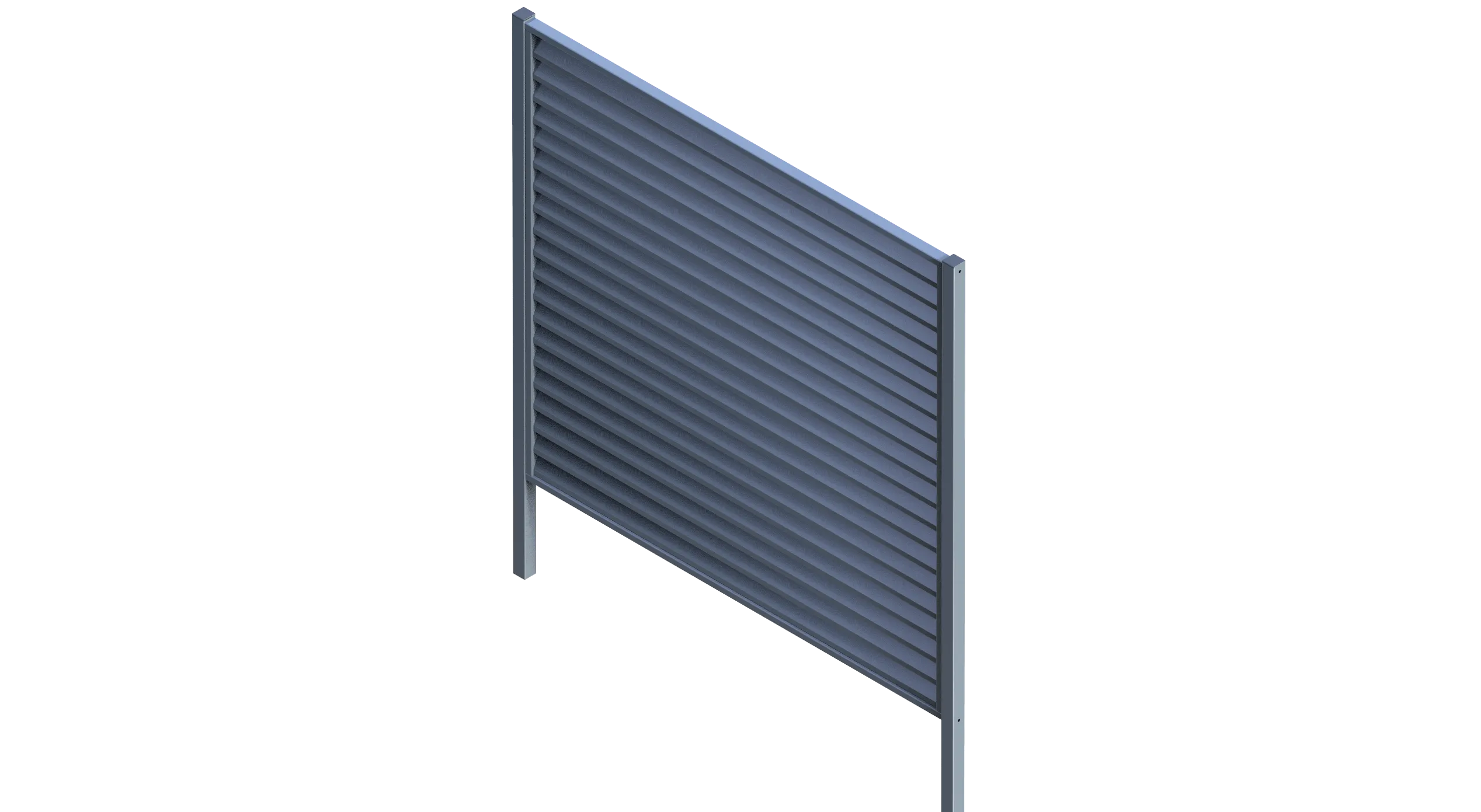

BLINDOR enclosure
Sight-obscuring enclosure made of sheet metal slats. Designed and oriented for residential areas, preventing owners from being exposed to external dangers. Difficult to climb. The slat design allows air circulation but makes it impossible to see from the outside. Modern and minimalist design.
Description
Sight-obscuring fence made of horizontal slats of folded sheet metal welded to vertical profiles of galvanised sheet metal. Assembled to square section pillars by FR14 metal fixings.
Posts made of galvanised tube with bracket clamp for recessing or with base plate for screwing. FR14 metal fixing system.
Simultaneous installation which is carried out by placing the post followed by the cloth and the next post.
| Reference | Dimensions | Color |
|---|---|---|
| FC.MP.31.0020.1065 | Dimensions 2.00 x 1.00 m |
6005
|
| FC.MP.31.0020.1265 | Dimensions 2.00 x 1.25 m |
6005
|
| FC.MP.31.0020.1565 | Dimensions 2.00 x 1.50 m |
6005
|
| FC.MP.31.0020.1765 | Dimensions 2.00 x 1.80 m |
6005
|
| FC.MP.31.0020.2065 | Dimensions 2.00 x 2.00 m |
6005
|

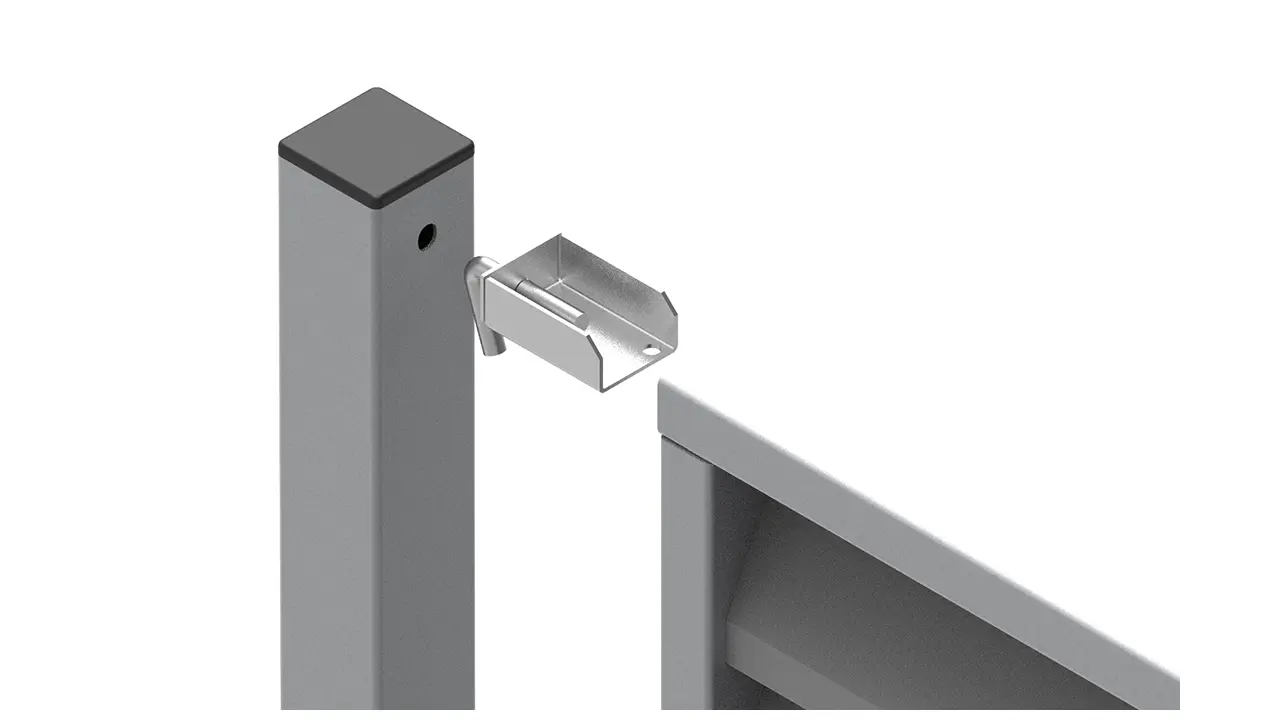

BLINDOR posts and accessories
Fixing posts and accessories for the BLINDOR enclosure.
Description
60 x 60 x 2 mm square posts and FR14 fixing bracket. Both a recessing post or a post with plate to be screwed on concrete walls are an option.
| Reference | Dimensions | Fencing Height | Color |
|---|---|---|---|
| FC.MP.31.1060.1065 | Dimensions 60 x 60 x 1.560 mm | Fencing Height 1.00 m |
6005
|
| FC.MP.31.1060.1265 | Dimensions 60 x 60 x 1.750 mm | Fencing Height 1.20 m |
6005
|
| FC.MP.31.1060.1565 | Dimensions 60 x 60 x 2.030 mm | Fencing Height 1.50 m |
6005
|
| FC.MP.31.1060.1765 | Dimensions 60 x 60 x 2.310 mm | Fencing Height 1.80 m |
6005
|
| FC.MP.31.1060.2065 | Dimensions 60 x 60 x 2.500 mm | Fencing Height 2.00 m |
6005
|
| Reference | Dimensions | Fencing Height | Color |
|---|---|---|---|
| FC.MP.31.1160.1065 | Dimensions 60 x 60 x 1.060 mm | Fencing Height 1.00 m |
6005
|
| FC.MP.31.1160.1265 | Dimensions 60 x 60 x 1.250 mm | Fencing Height 1.20 m |
6005
|
| FC.MP.31.1160.1565 | Dimensions 60 x 60 x 1.530 mm | Fencing Height 1.50 m |
6005
|
| FC.MP.31.1160.1765 | Dimensions 60 x 60 x 1.810 mm | Fencing Height 1.80 m |
6005
|
| FC.MP.31.1160.2065 | Dimensions 60 x 60 x 2.000 mm | Fencing Height 2.00 m |
6005
|
| Reference | Dimensions |
|---|---|
| FC.AP.20.0505.5030 | Dimensions 50 x 30 mm. zinc |
